REAR DRIVE SHAFT SERVICE
REAR DRIVE SHAFT REMOVAL
1. Place the transmission in PARK.
2. Elevate the rear of the vehicle and safely support the
vehicle under the main frame area.
3. Remove wheel nuts, and wheel.

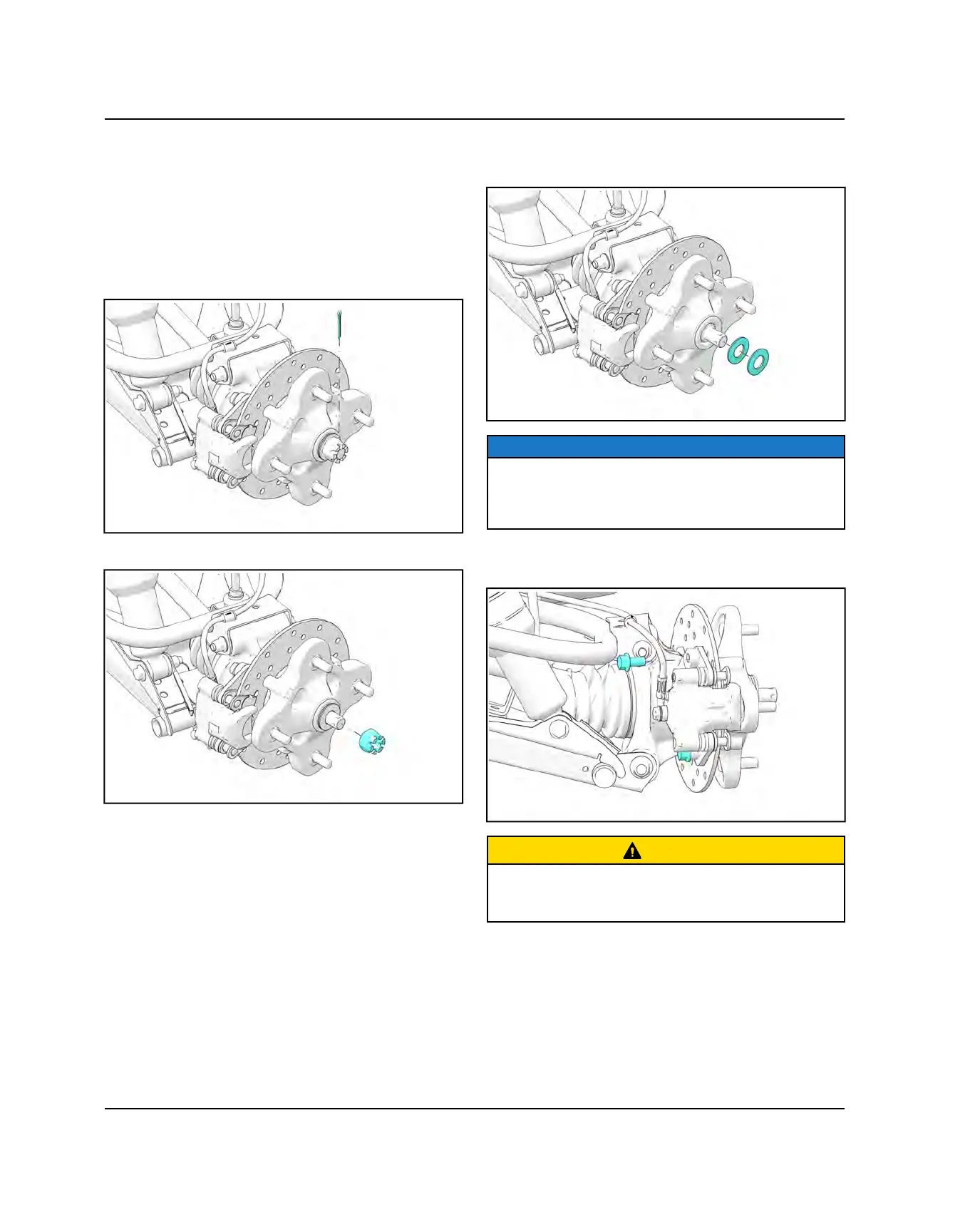

4. Remove the cotter pin.
5. Remove the castle nut.
6. Remove the washer(s).
NOTICE
Image for reference only. Each hub requires a different
number of washers. Refer to Rear Hub Identification
page 8.4 to make sure that the correct washer and
washer quantity is used.
7. Remove the two rear brake caliper mounting bolts
and remove the caliper from the bearing carrier.
CAUTION
Do not hang the caliper by the brake line. Use
mechanics wire to hang the caliper to prevent possible
damage to the brake line.
