Polaris RANGER 1000 2020 - Bevel Differential Assembly

7
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
7.27

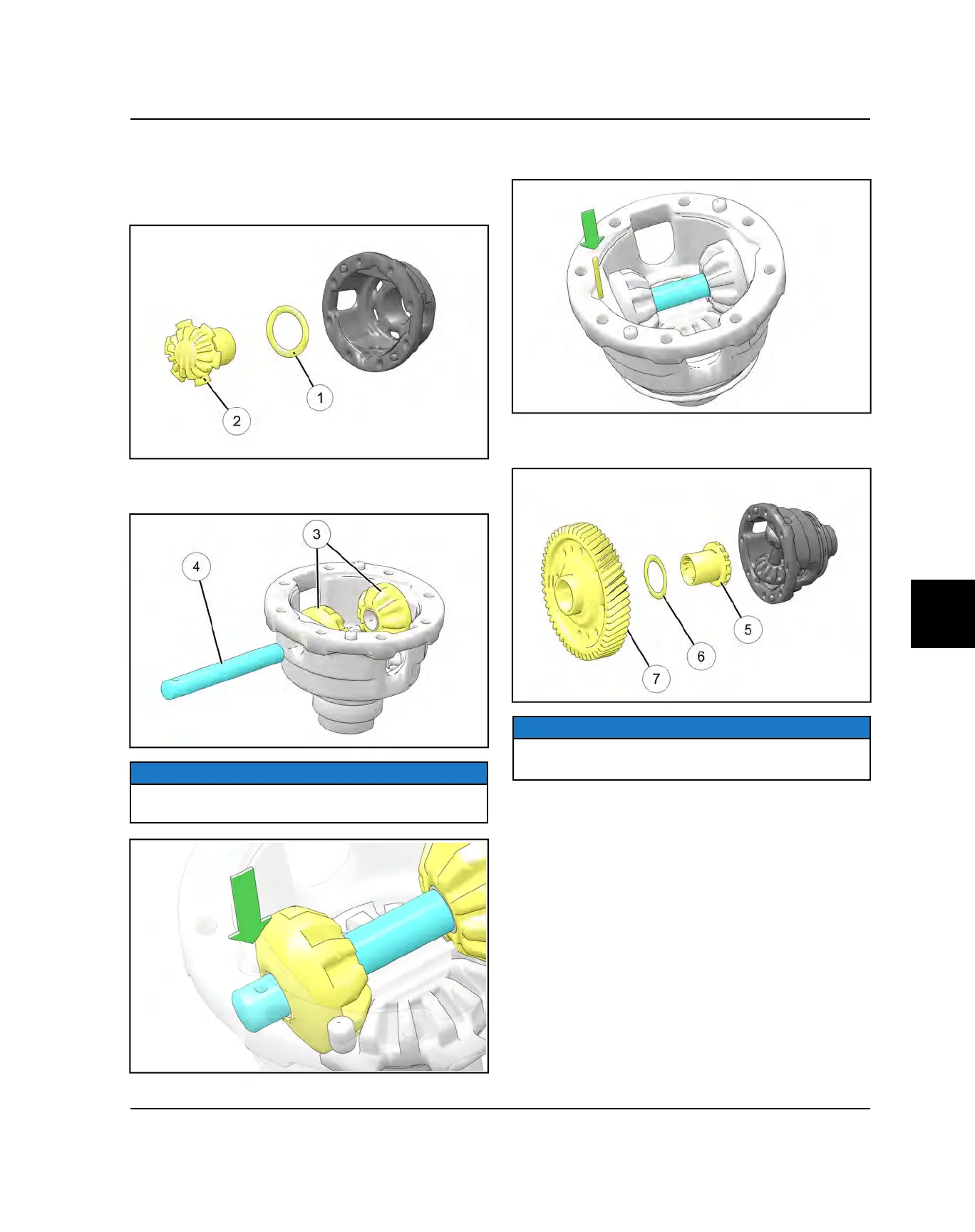

BEVEL DIFFERENTIAL ASSEMBLY
1. Thoroughly clean the differential components.
2. Install the thrust washer
q
and output gear
w
into
the carrier.
3. Place the pinion gears
e
into the carrier and slide the
differential pin
r
into the carrier.
NOTICE
Align the hole of the differential pin with the dowel pin
hole in the carrier.
4. Insert the dowel pin through the carrier into the
differential pin.
5. Install the output gear
t
, thrust washer
y
, and ring
gear
u
.
NOTICE
When installing the ring gear, align with the mark made
of the carrier during disassembly.
TRANSMISSION
