BEARING CARRIER INSTALLATION
CAUTION
New bolts have a pre-applied locking agent which is
destroyed upon removal. Always use new brake caliper
mounting bolts upon assembly.

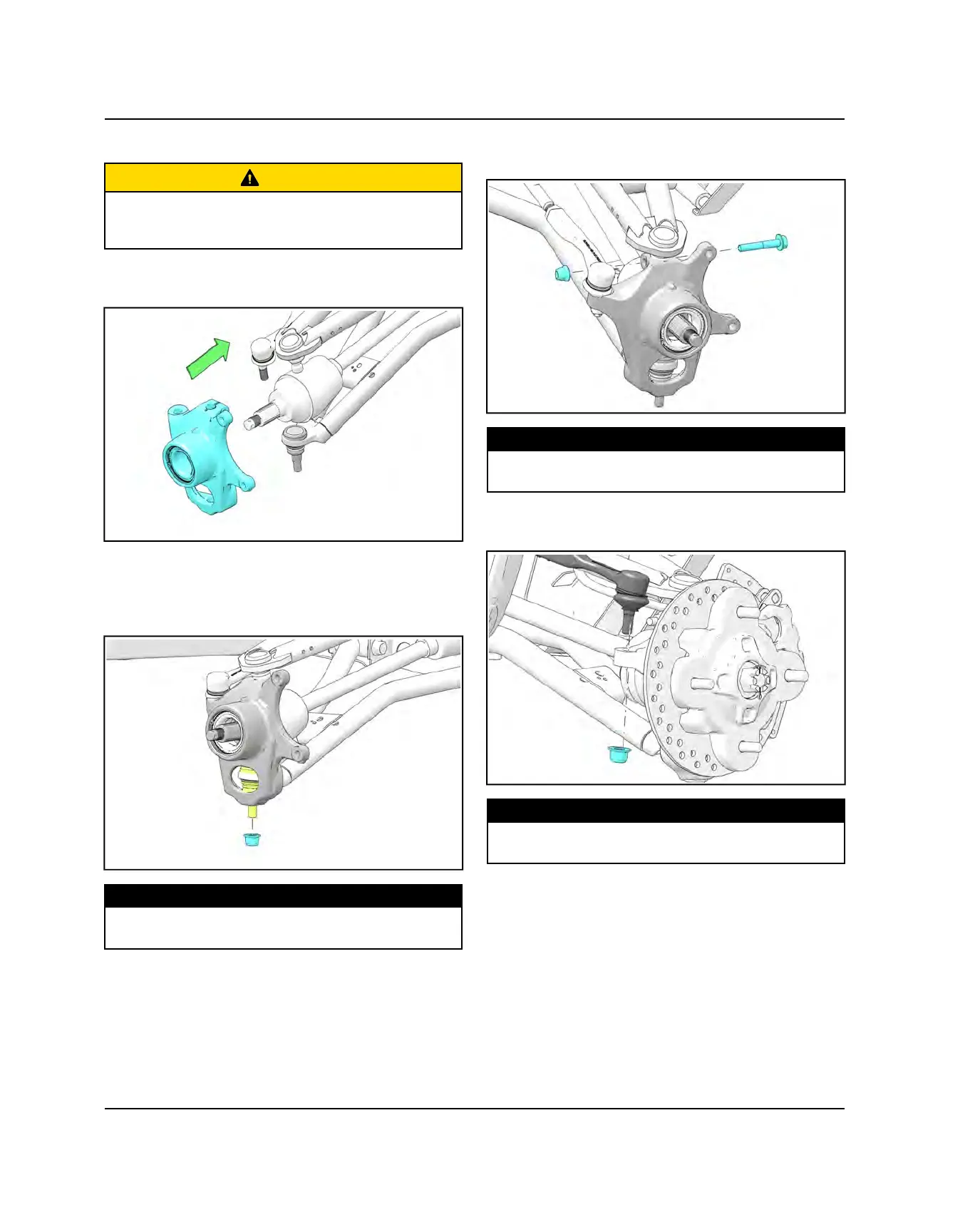

1. Install the end of the drive shaft through the backside
of the bearing carrier.
2. Install the upper and lower ball joint ends into the
front bearing carrier.
3. Install the lower ball joint fastener. Torque to
specification.
TORQUE
Lower Ball Joint fastener:
42 lb-ft (57 Nm)
4. Install upper ball joint pinch bolt. Torque to
specification.
TORQUE
Upper Ball Joint fastener:
42 lb-ft (57 Nm)
5. Install the steering tie rod end onto the front bearing
carrier. Install the nut and torque to specification.
TORQUE
Tie Rod End Fastener:
40 lb-ft (54 Nm)
6. Apply grease to the drive shaft splines.
