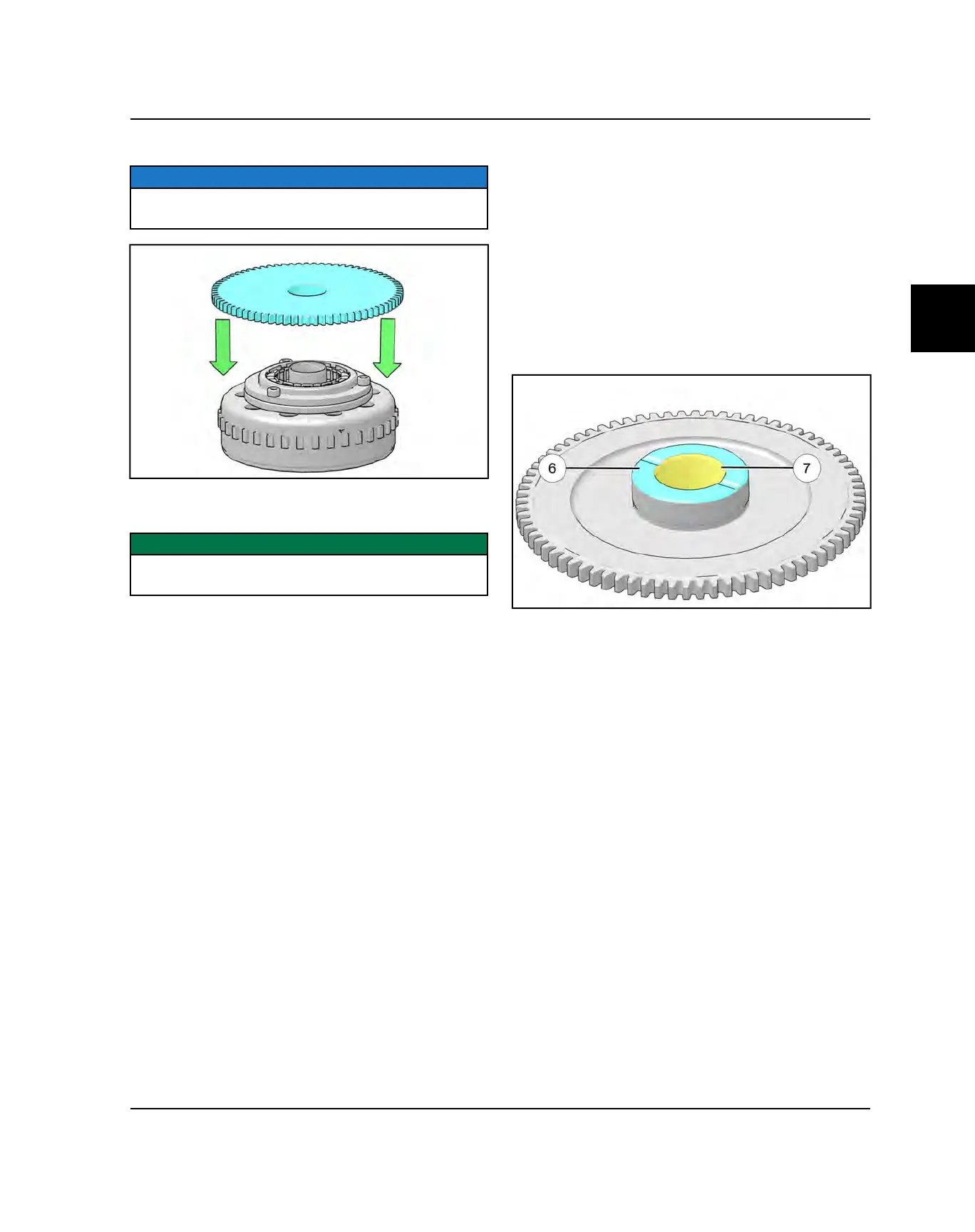

4. Install the starter gear on the flywheel assembly.
NOTICE
If starter gear was replaced, inspect the torque limit
gear for wear.
5. Install the flywheel. Refer to Flywheel Service page
3.72.
IMPORTANT
Ensure the starter gear rotates in the clockwise
direction only.
STARTER ONE-WAY CLUTCH
INSPECTION
1. Remove the flywheel. Refer to Flywheel Service page
3.72.
2. Place flywheel on a work bench with the one-way
clutch facing up. Grasp clutch gear and rotate
clockwise. It should turn smoothly without binding.
3. Rotate one-way gear counterclockwise. The gear
should immediately lock in position and not slip.
4. Inspect the one-way gear surface
y
and bushing
u
for wear or galling. If service is required, refer to
Starter One-Way Clutch Service page 3.73.
