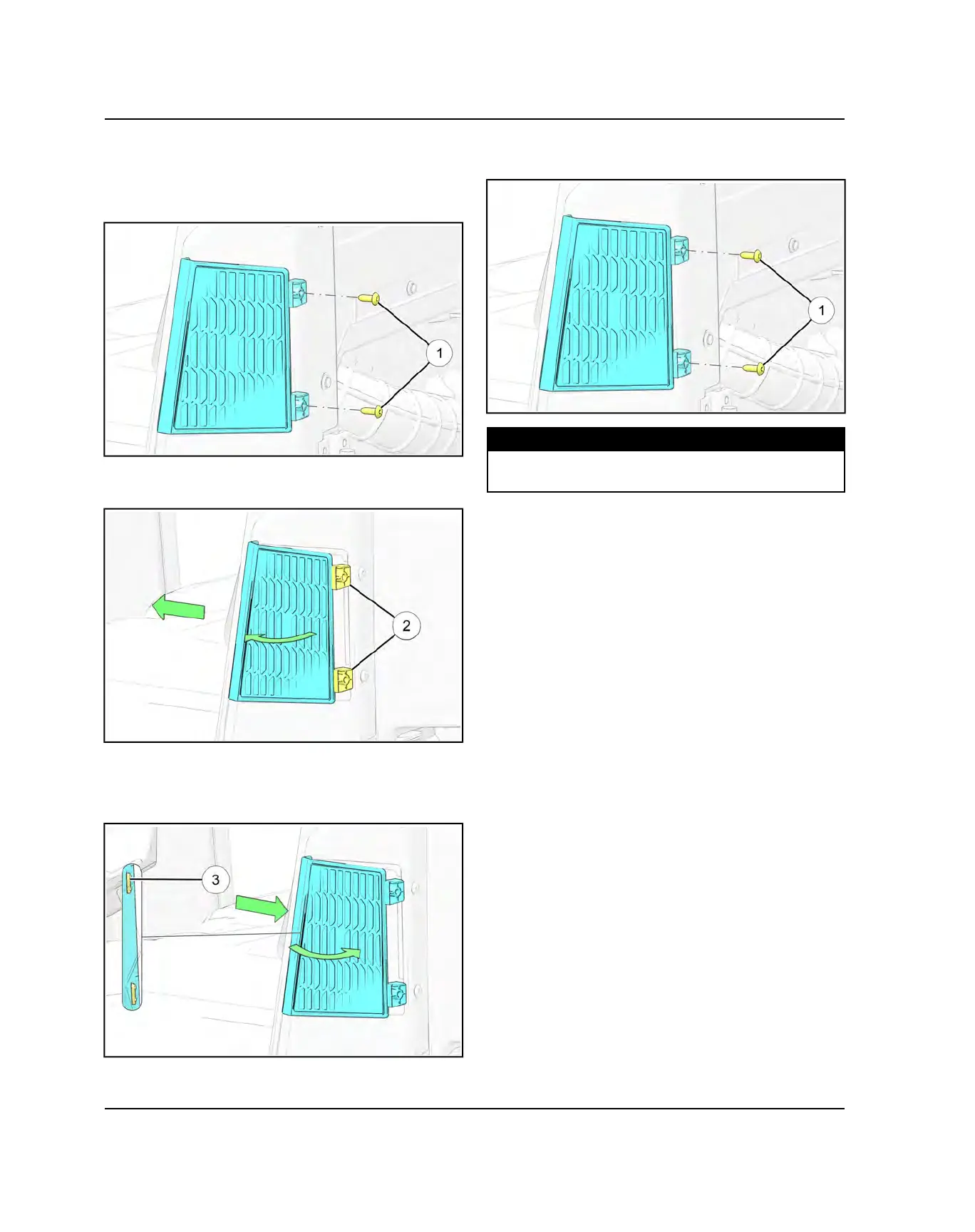

SIDE BEZEL COVER SERVICE
REMOVAL
1. Remove the two fasteners
q
securing the intake
cover to the side bezel.
2. Carefully pry out the retainers
w
and remove the
cover towards the front of the vehicle.
INSTALLATION
1. Install the intake cover and ensure the front retention
clips
e
are properly seated.
2. Install the two intake cover fasteners
q
and torque to
specification.
TORQUE
Side Bezel Cover Fasteners:
22 in-lbs (2.5 Nm)
