9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
11.37

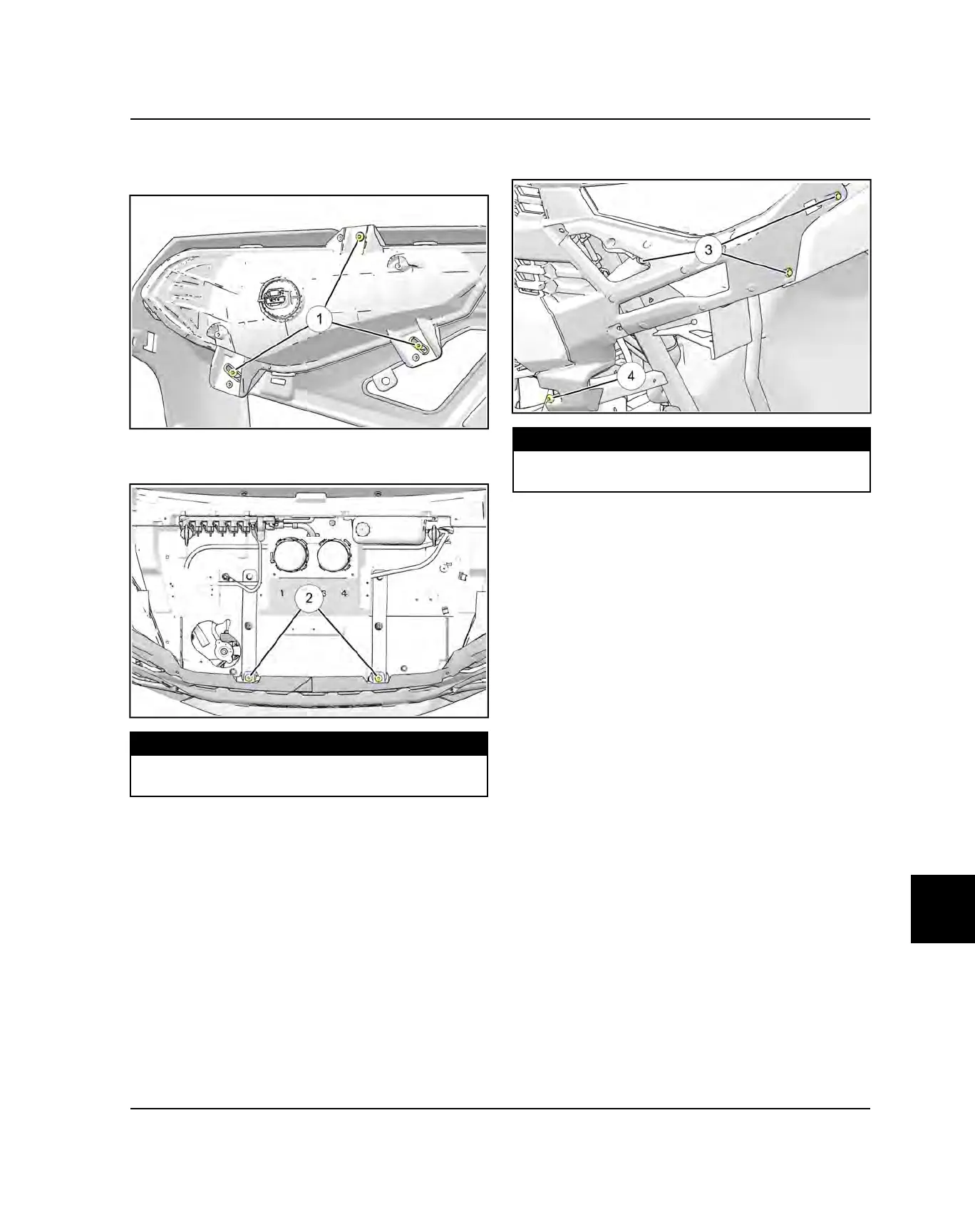

2. Reinstall the headlight assembly. Install the three T-
25 torx fasteners
q
. Do not tighten. Connect the
headlight connector.
3. Install the two T-40 torx fasteners
w
. Torque to
specification.
TORQUE
Body Fasteners
42 in-lbs (5 Nm)
4. Install the three push rivets
e
and the T-40 torx
fastener
r
. Torque to specification.
TORQUE
Body Fastener
42 in-lbs (5 Nm)
5. Perform Headlight Adjustment. Refer to
6. Install the upper fender. Refer to Front Fender
Service page 11.32.
