DRIVE CLUTCH SERVICE

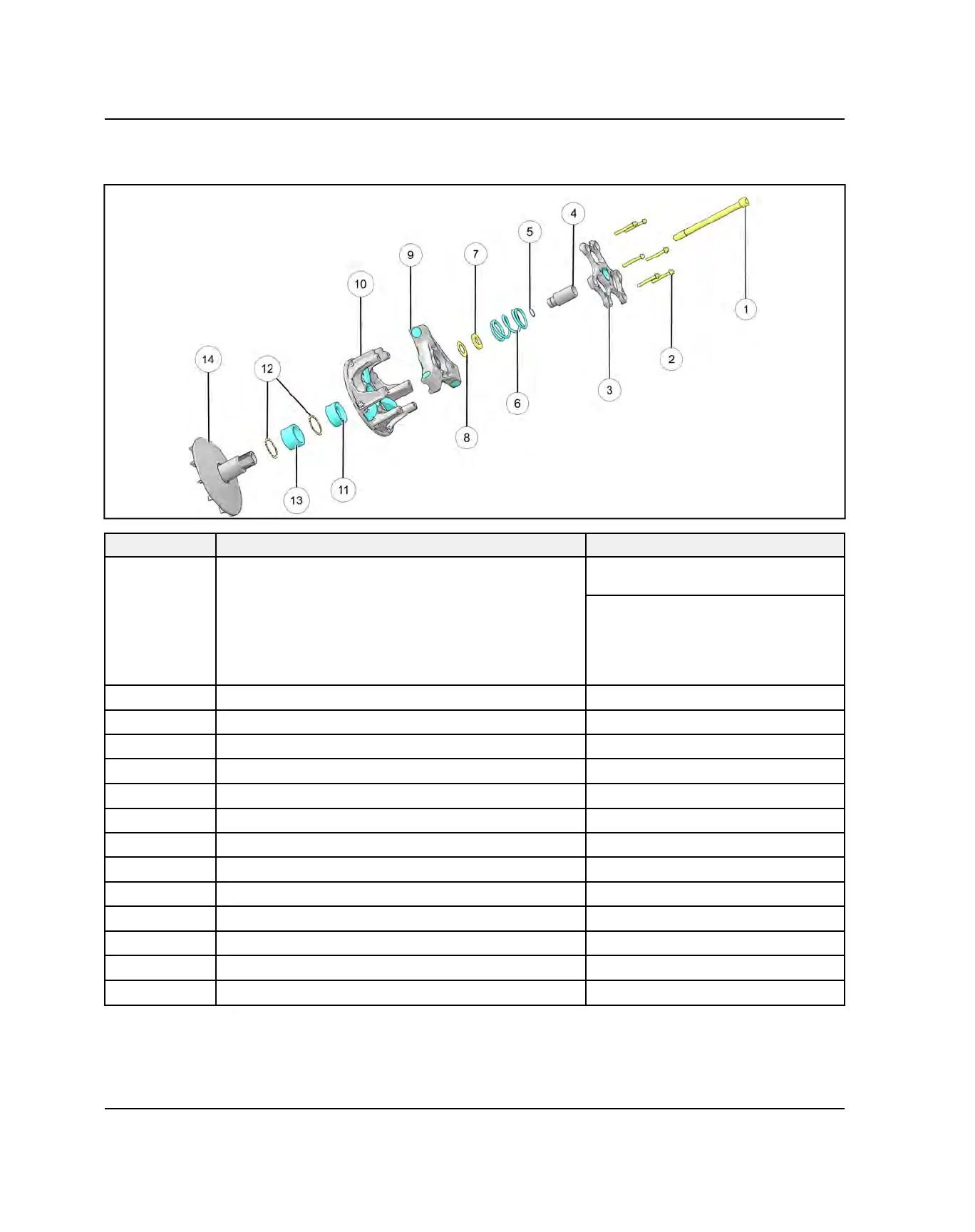

DRIVE CLUTCH ASSEMBLY VIEW
REF DESCRIPTION
TORQUE
q
Drive Clutch Bolt: M14 x 1.5 x 180
Movable Sheave only removed:
96 ft-lbs (130 Nm)
Stationary Sheave removed:
Step 1: 110 ft-lbs (149 Nm)
Step 2: Loosen Fastener
Step 3: 96 ft-lbs (130 Nm)
w
Drive Clutch Cover Fasteners: M6 x 1.0 x 50
44 in-lbs (5 Nm)
e
Drive Clutch Cover NA
r
Outer Clutch Post NA
t
O-ring
NA
y
Drive Clutch Spring
NA
u
Belleville Washer NA
i
Washer NA
o
Clutch Spider
NA
a
Movable Sheave NA
s
Spacer
NA
d
Thrust Washers NA
f
Bearing
NA
g
Stationary Sheave
NA
