FRONT GEARCASE VENT LINE ROUTING

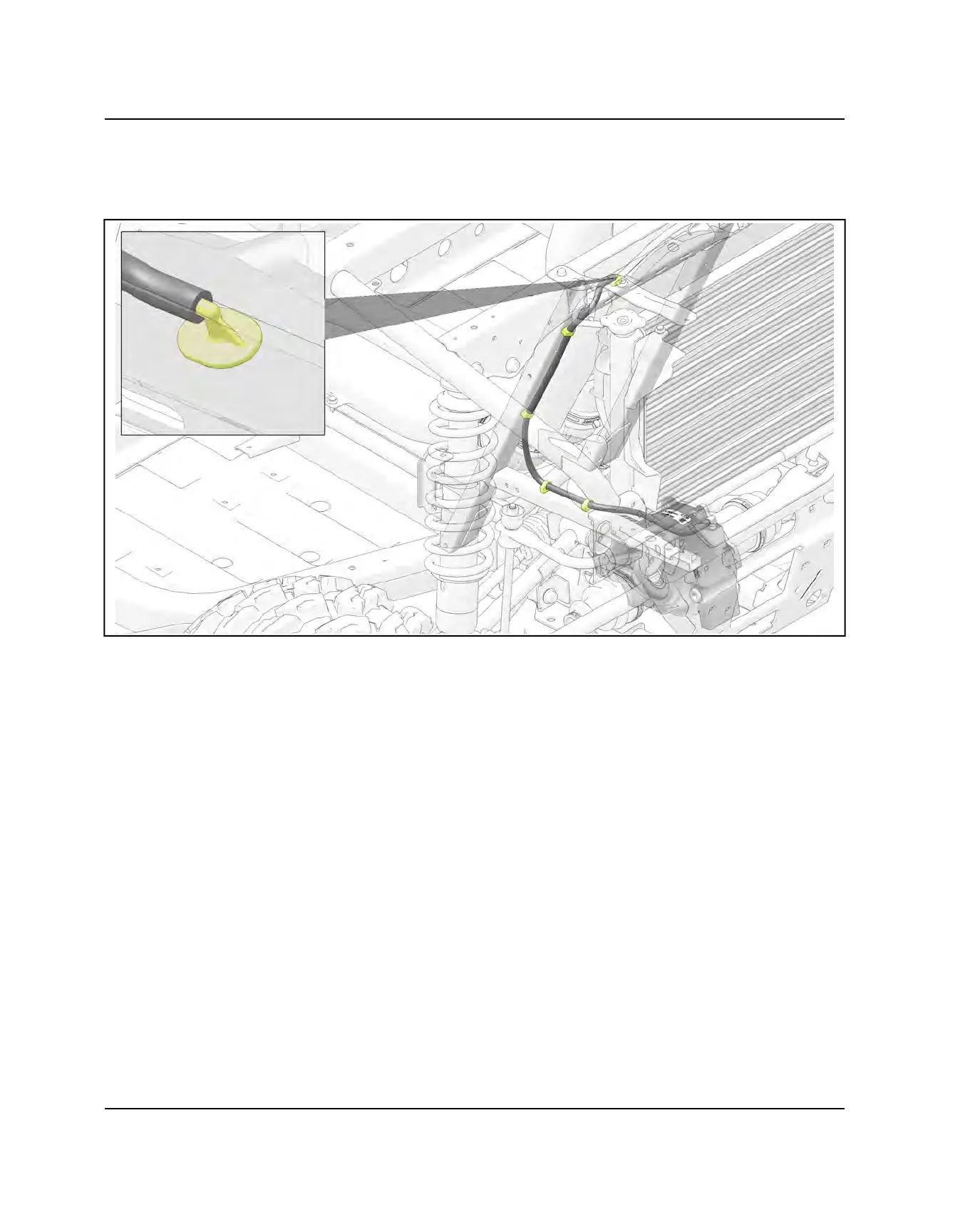

The front gearcase vent line runs along the front passenger side frame. It is secured along the front frame by four
retention clips, two horizontal and two vertical as shown. The vent line ends its routing secured into a horizontal section
of the frame with a vent line termination fitting.
