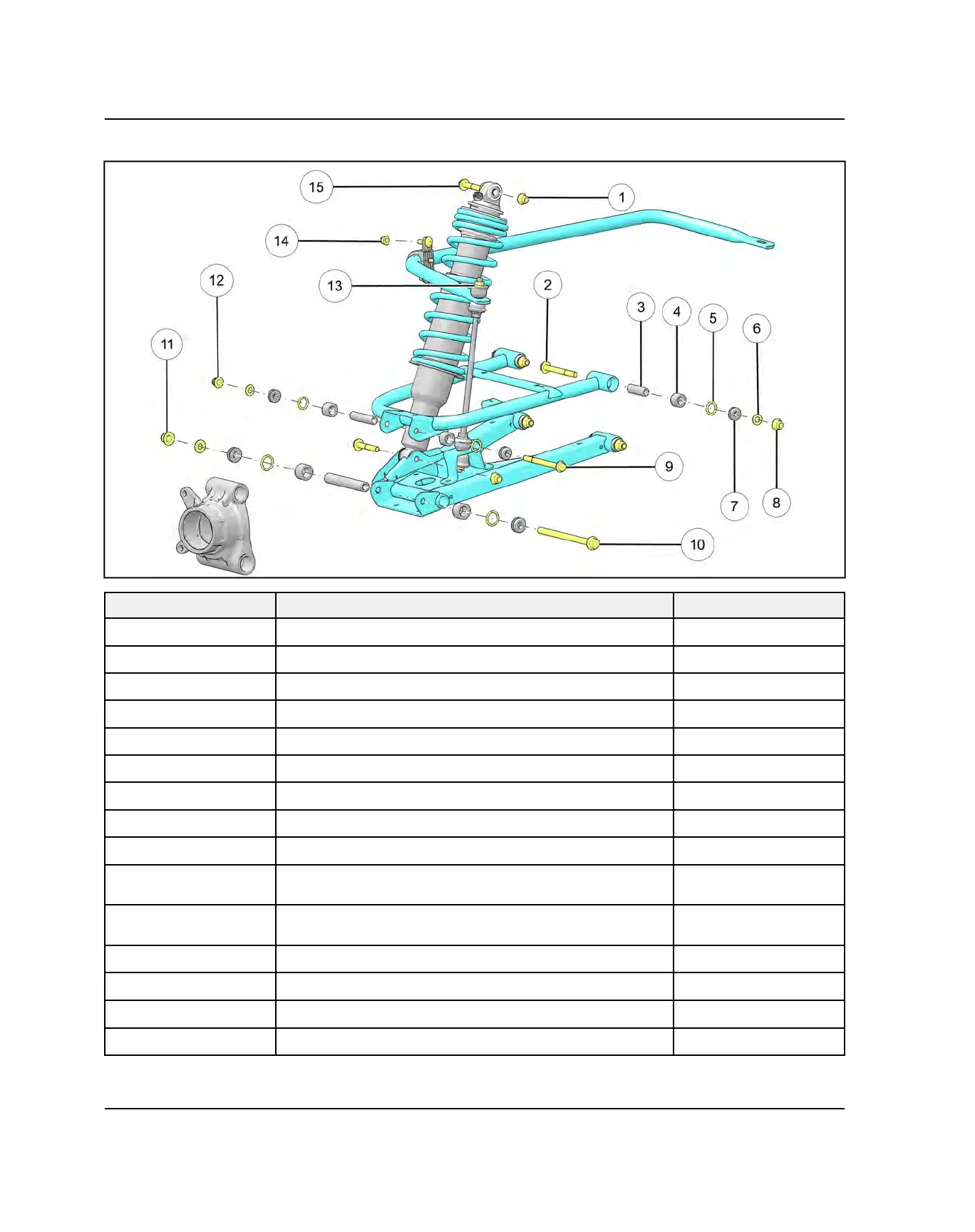

REAR SUSPENSION ASSEMBLY VIEW
REF DESCRIPTION
TORQUE
q
Shock Mounting Nut: M10 x 1.25 40 ft-lbs (54 Nm)
w
Upper A-Arm Mounting Fastener: M10 x 1.25 x 95 44 ft-lbs (60 N·m)
e
Pivot Shaft NA
r
Bushing
NA
t
O-Ring
NA
y
Washer NA
u
Pivot Cap
NA
i
A-Arm Fastening Nut: M10 x 1.25
NA
o
Upper A-Arm Mounting Fastener: M10 x 1.25 x 115 44 ft-lbs (60 N·m)
a
Lower A-Arm Fastener: M12 x 1.5 x 170
30 ft-lbs (40 N·m) +
180°
s
Lower A-Arm Fastening Nut: M12 x 1.5
30 ft-lbs (40 N·m) +
180°
d
Upper A-Arm Mounting Nut: M10 x 1.25 44 ft-lbs (60 N·m)
f
Stabilizer Bar Link Fastener
17 ft-lbs (23 Nm)
g
Stabilizer Bar Mounting Nut: M8 x 1.25 31 ft-lbs (42 Nm)
h
Shock Mounting Fastener: M10 x 1.25 x 60 40 ft-lbs (54 Nm)
