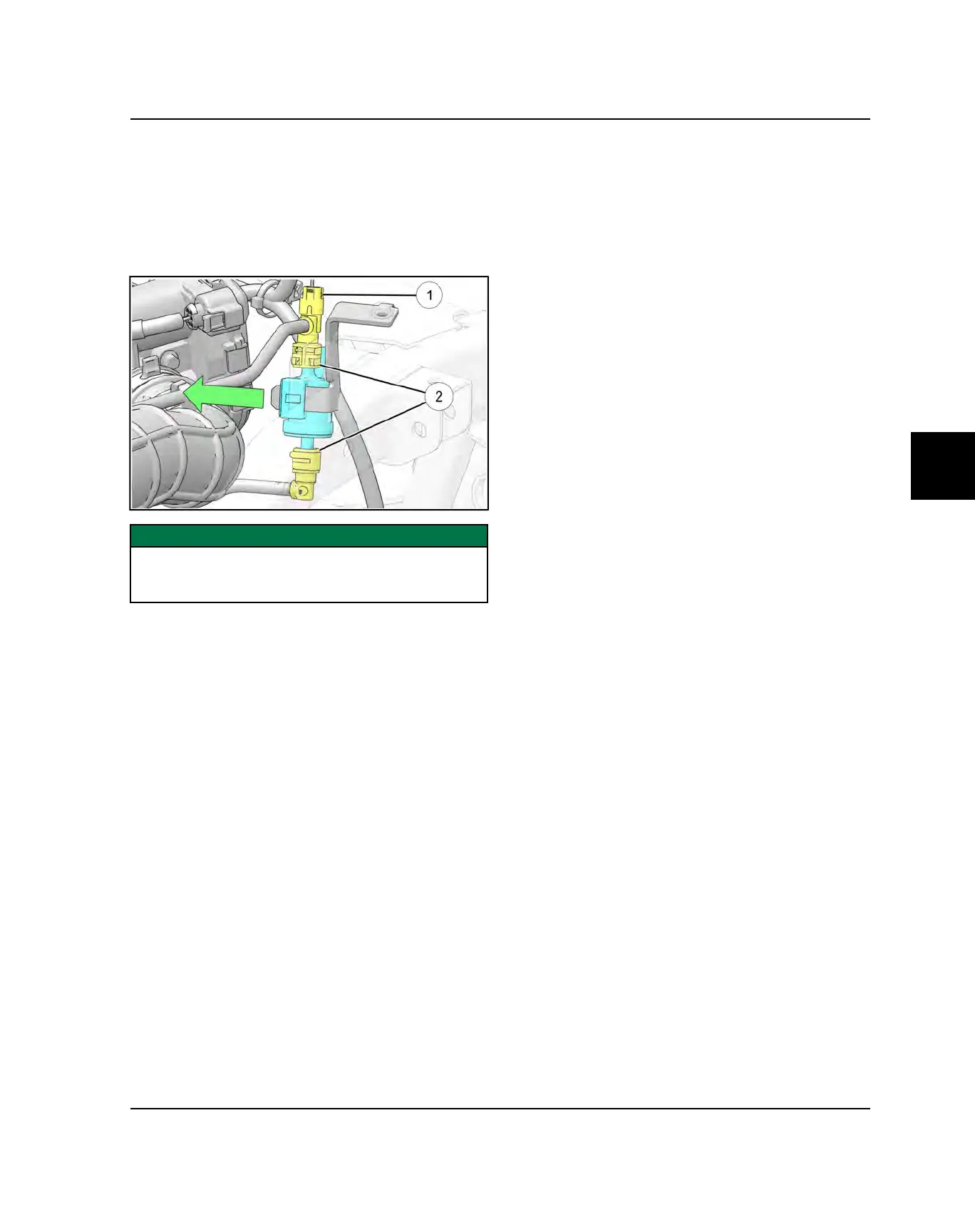

PURGE VALVE SERVICE
1. Lift the cargo box.
2. Disconnect the electrical connector
q
.
3. Disconnect both purge valve quick connectors. Refer
to Fuel Line Quick Connect Removal page 5.6.
4. Slide the purge valve grommet off of the bracket.
IMPORTANT
When reinstalling, ensure the electrical connector is
fully seated and the quick connect lines are fully latched
and seated. Gently pull back on the lines to confirm.
