Polaris RANGER 1000 2020 - Driven Clutch Service; Driven Clutch Assembly View

6.22
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
DRIVEN CLUTCH SERVICE

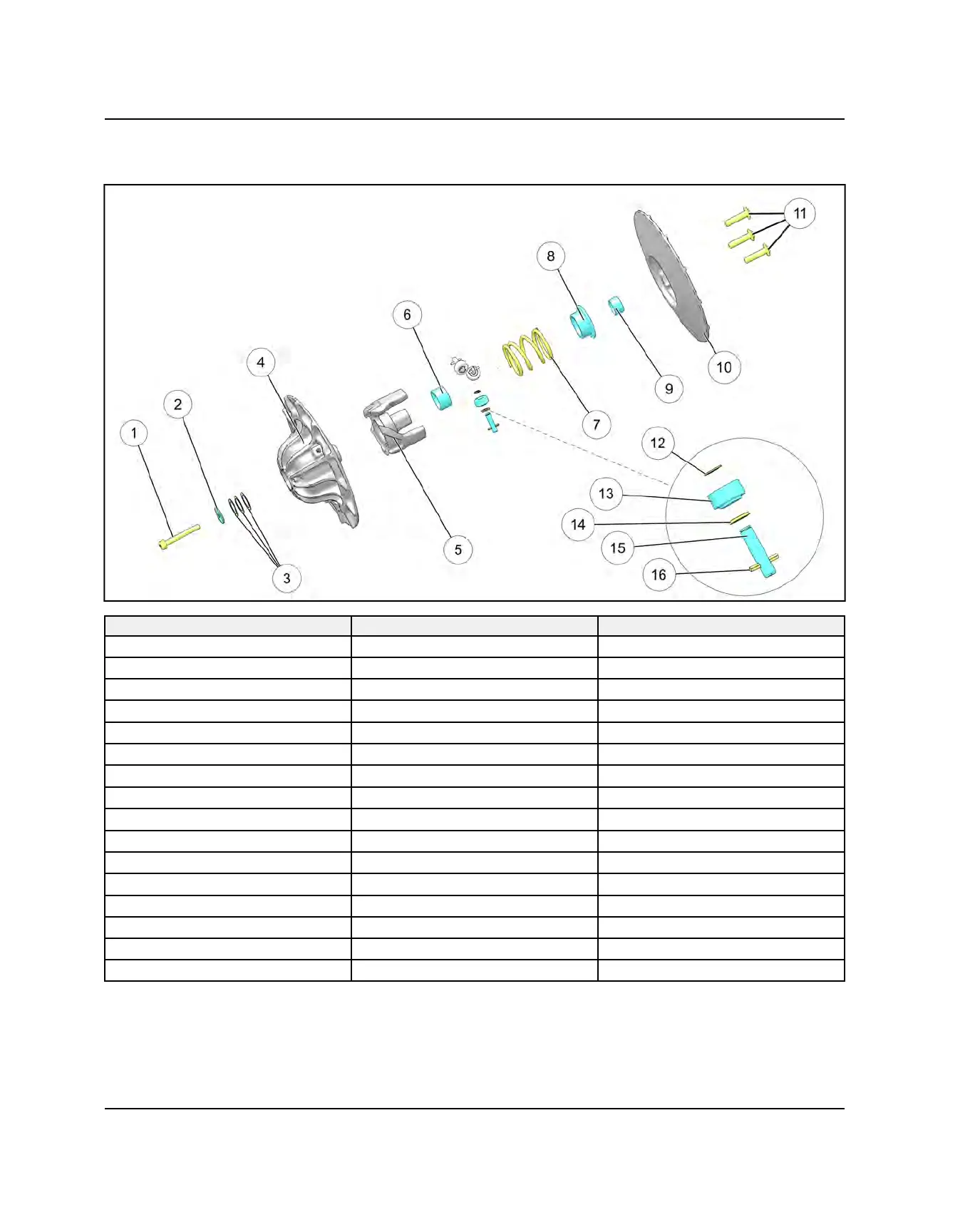

DRIVEN CLUTCH ASSEMBLY VIEW
REF DESCRIPTION
TORQUE / NOTE
q
Driven Clutch Bolt
20 ft-lbs (27 Nm)
w
Washer NA
e
Shim 0 - 8
r
Stationary Sheave
NA
t
Helix NA
y
Bushing
NA
u
Spring
NA
i
Spring Cup
NA
o
Bushing
NA
a
Moveable Sheave NA
s
Helix Fasteners
32 ft-lbs (44 Nm)
d
E-Clip Fully Seat in Grooves
f
Roller NA
g
Washer NA
h
Roller Pin NA
j
Spring Pin
NA
PVT SYSTEM
