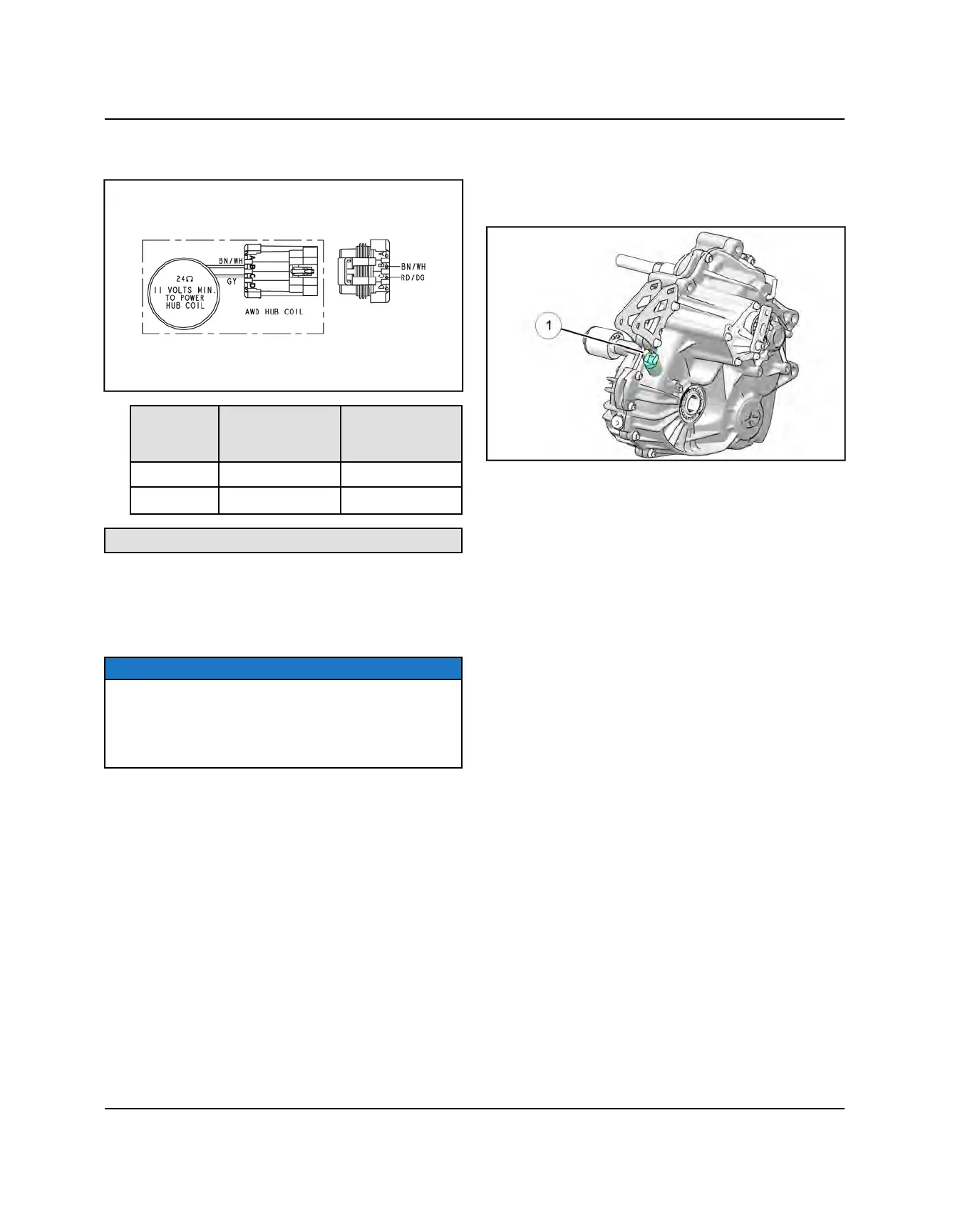

2. Verify AWD hub coil is functional. Test the AWD hub
coil using an ohm meter. See specifications below:
TEST
CONNECT
METER LEADS
TO:
OHMS
READING
AWD Coil GY to BN/WH ~ 23 Ω
AWD Coil GY to Ground
Open Line (OL)
AWD Hub Coil Resistance:23 Ω ± 5%
3. Verify the wiring harness, wiring, connectors,
connector pins and grounds are undamaged, clean
and connected properly.
4. Verify continuity of wire connections with a volt/ohm
meter.
NOTICE
Verify all wires and wiring connections have been
tested properly with a known good volt/ohm meter
before suspecting a component failure. 80% of all
electrical issues are caused by bad/failed connections
and grounds.
VEHICLE SPEED SENSOR SERVICE
SPEED SENSOR LOCATION
The speed sensor
q
is located on the ride side of the
transmission, accessed through the right rear wheel well.
