FRONT GEARCASE SERVICE 2021+ MODELS

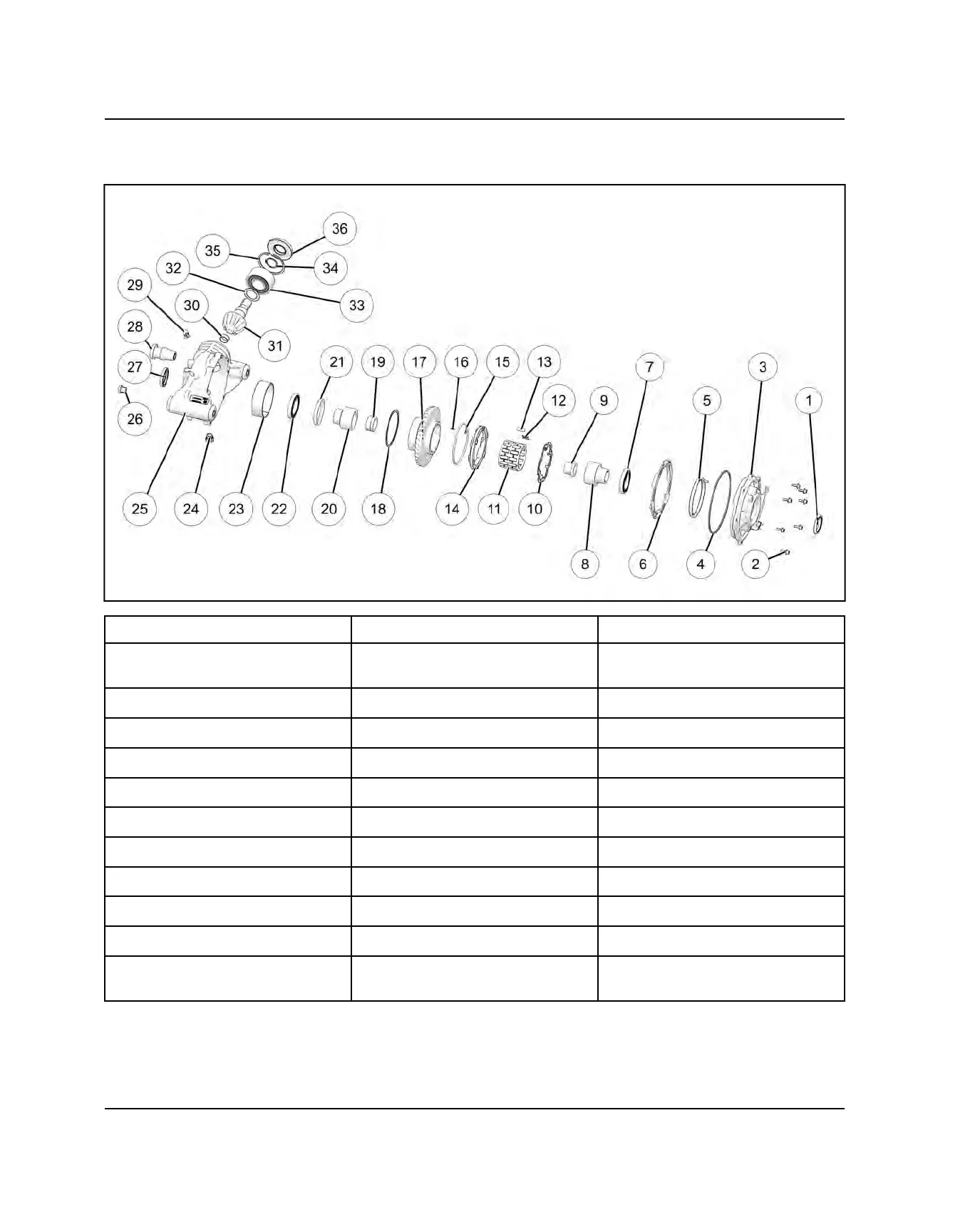

FRONT GEARCASE ASSEMBLY VIEW
q
Oil Seal
f
Roller
2%
Gearcase
w
Cover Screws, M6
9 ft-lbs (12 N·m)
g
Spring Retainer Assy.
2^
Plug (Fill)
10 ft-lbs (14 Nm)
e
Cover
h
Torsion Spring
2&
Oil Seal
r
O-Ring
j
Stud / Dowel Pin
2*
Isolation Bushing
t
Coil
k
Ring Gear
2(
Gearcase Vent (Hose Fitting)
y
Backlash Spacer
l
Spacer
3)
Bushing
u
Bearing
1(
Bushing (Outer)
3!
Pinion Gear
i
Hub Assembly
2)
Hub Assembly
3@
Shim
o
Bushing (Inner)
2!
Cage Spacer
3#
Bearing
a
Armature Plate
2@
Bearing
3$
Snap Ring (Inner)
s
Roller Cage Assy.
2#
Bushing
3%
Snap Ring (Outer)
d
H-Clip
2$
Magnetic Plug (Drain)
10 ft-lbs (14 Nm)
3^
Pinion Seal
FINAL DRIVE
