FUEL TANK

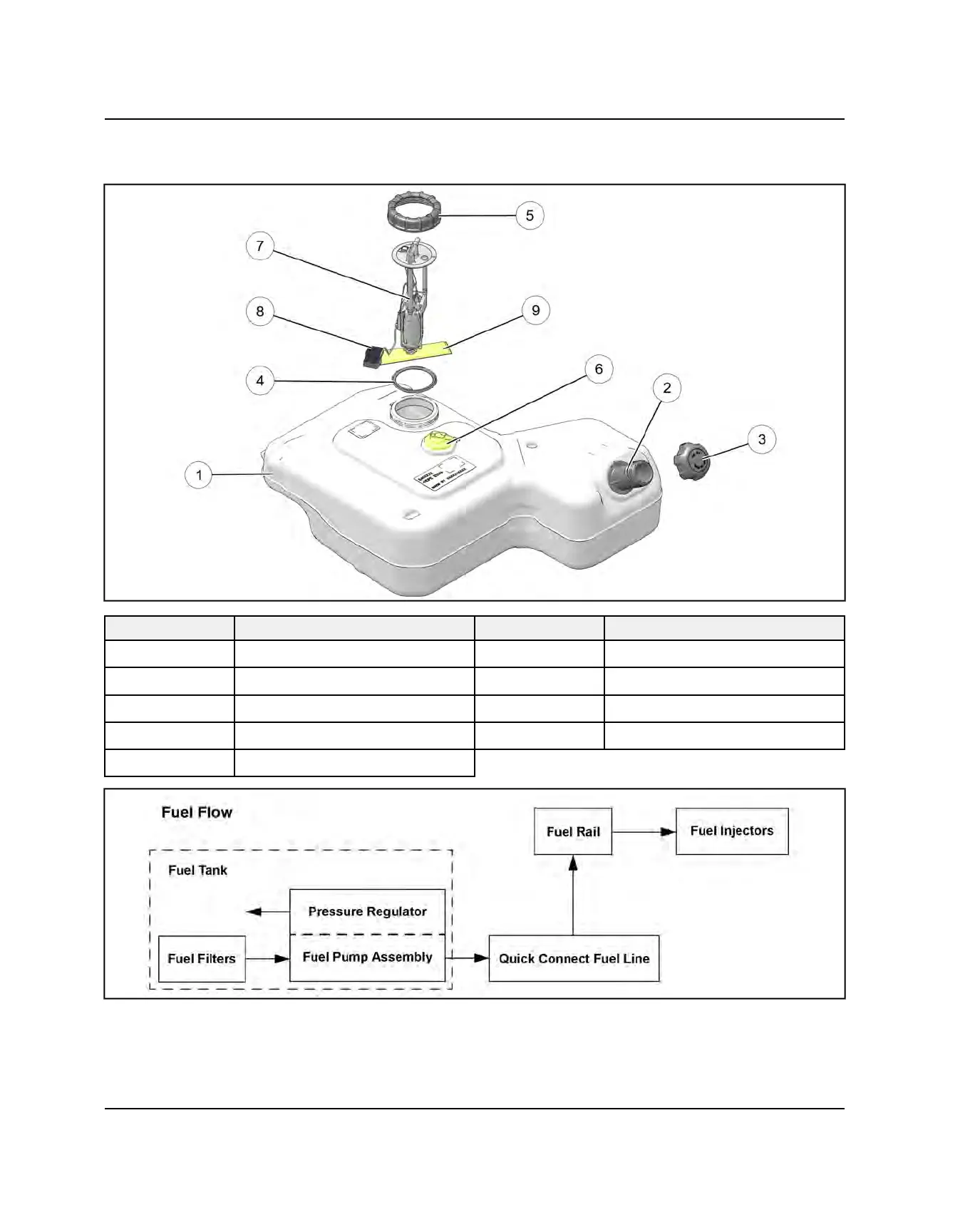

FUEL TANK ASSEMBLY VIEW
REF
DESCRIPTION
REF
DESCRIPTION
q
Fuel Tank Asm
y
Tank Vent / Rollover Valve
w
Fuel Inlet
u
Fuel Pump / Regulator
e
Fuel Cap
i
Fuel Level Float Arm
r
Gasket
o
Preliminary Fuel Filter
t
Fuel Sender Nut
