6
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
6.15

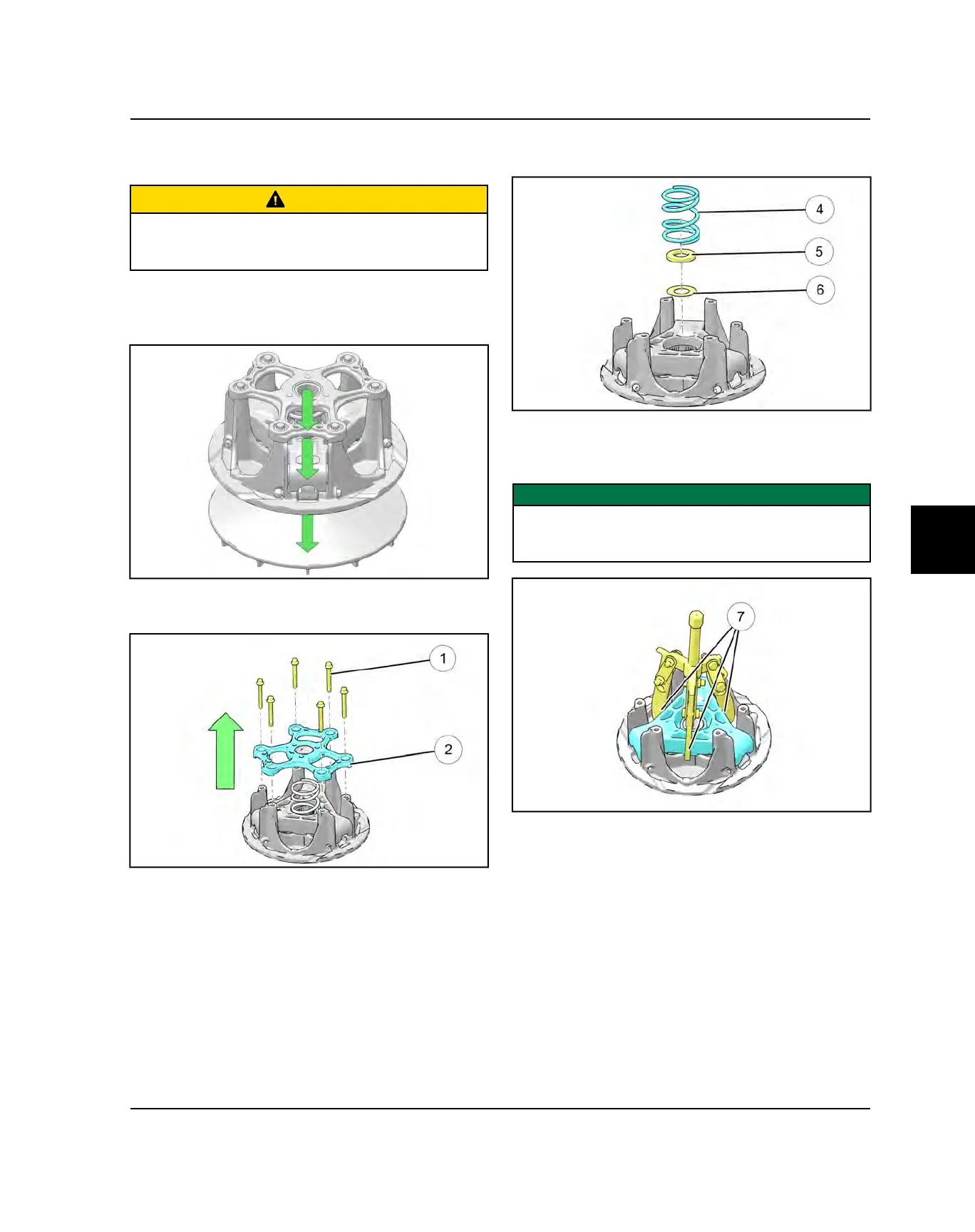

DRIVE CLUTCH SERVICE
DISASSEMBLY
CAUTION
The clutch assembly is a precisely balanced unit. Never
replace parts with used parts from another clutch
assembly!
1. Using a permanent marker, mark the cover, spider,
and moveable sheave for reference, as the cast in X's
may not have been in alignment before disassembly.
2. Remove cover bolts
q
evenly in a cross pattern and
remove cover plate
w
.
3. Remove the clutch spring
r
, belleville washer
t
and
washer
y
.
4. Remove the spider assembly. If the spider cannot be
removed by hand, use a conventional 3-jaw puller as
shown to remove the spider from the clutch assembly.
IMPORTANT
Do not pull on the outer fingers of the spider or damage
may occur. Position 3 jaw puller in the positions shown
u
.
5. Perform Drive Clutch Inspection. Refer to Drive
Clutch Inspection page 6.17.
PVT SYSTEM
