Polaris RANGER 1000 2020 Service Manual

11.50
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
DOOR SERVICE

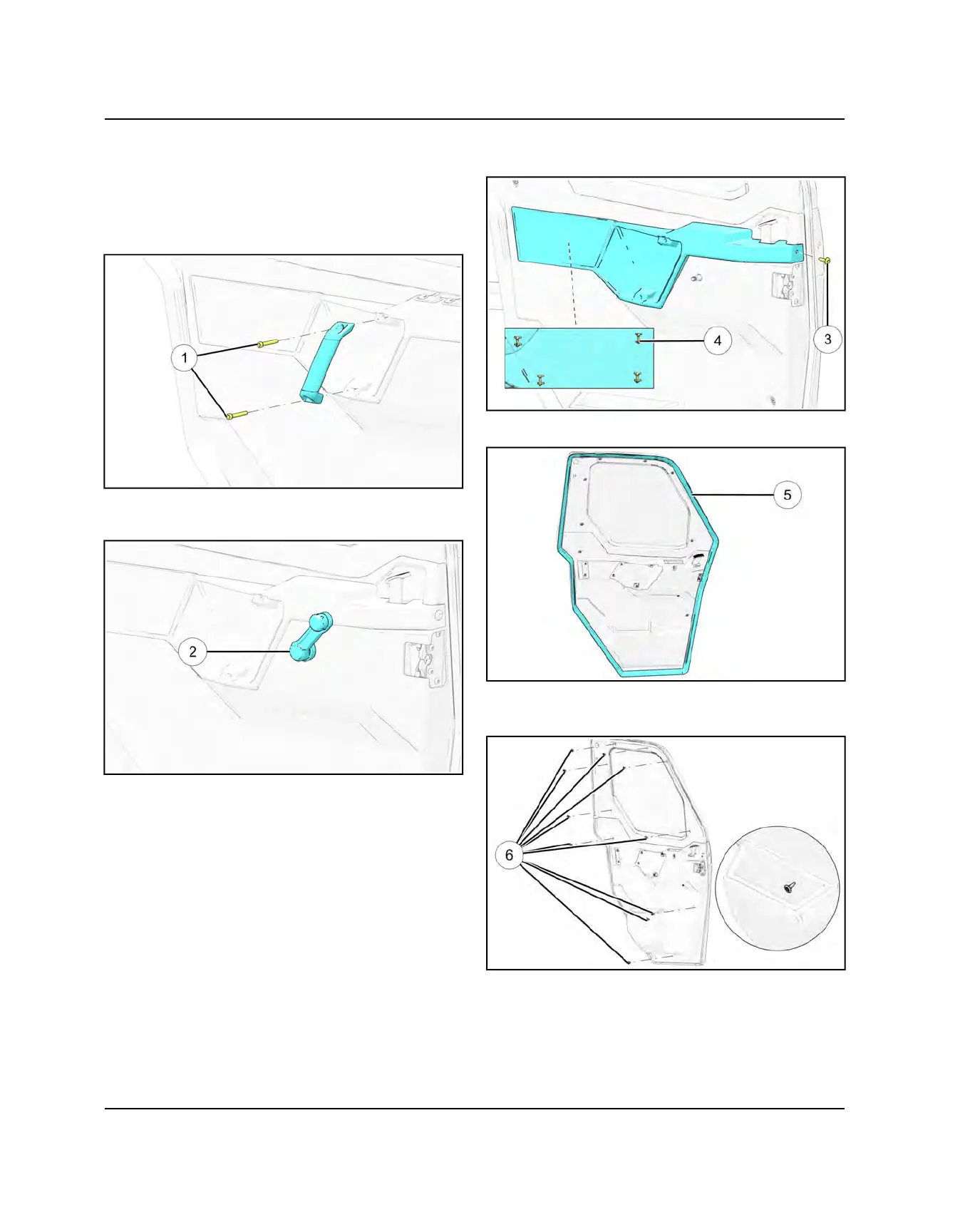

STANDARD DOOR PANEL SERVICE
REMOVAL
1. Remove the fasteners
q
securing the door handle to
the door assembly and remove the door handle.
2. Remove the u-clip securing the crank handle
w
, and
remove the crank handle.
3. Remove the fastener
e
securing the door panel trim
to the door assembly.
4. Gently pry the retainers
r
away from the door panel
to remove.
5. Remove the door seal
t
.
6. Remove the nine push rivets
y
retaining the door
panels to the door assembly.
BODY / FRAME
