ENGINE SERVICE

ACCESSIBLE ENGINE COMPONENTS

The following components can be serviced or removed

with the engine installed:

• Camshaft(s)

• Camshaft Sprocket(s)

• Cylinder Head

• Flywheel

• Oil Cooler

• Starter Motor / Idler Gear Asm

• Stator (Alternator)

• Thermostat

• Valve Cover

• Water Pump

• Crankshaft PTO Seal

The following components require engine removal for

service:

• Camshaft Timing Chain

• Connecting Rod(s)

• Counterbalance Shaft / Bearings

• Crankcase

• Crankshaft / Main Bearings

• Cylinder

• Oil Pump / Oil Pump Sprocket or Chain

• Piston / Rings

ENGINE MOUNT ISOLATOR SERVICE

REMOVAL

1. Remove the skid plate. Refer to Skid Plate Service

page 11.35.

2. Use a commercially available lift or jack to release the

weight on the isolator.

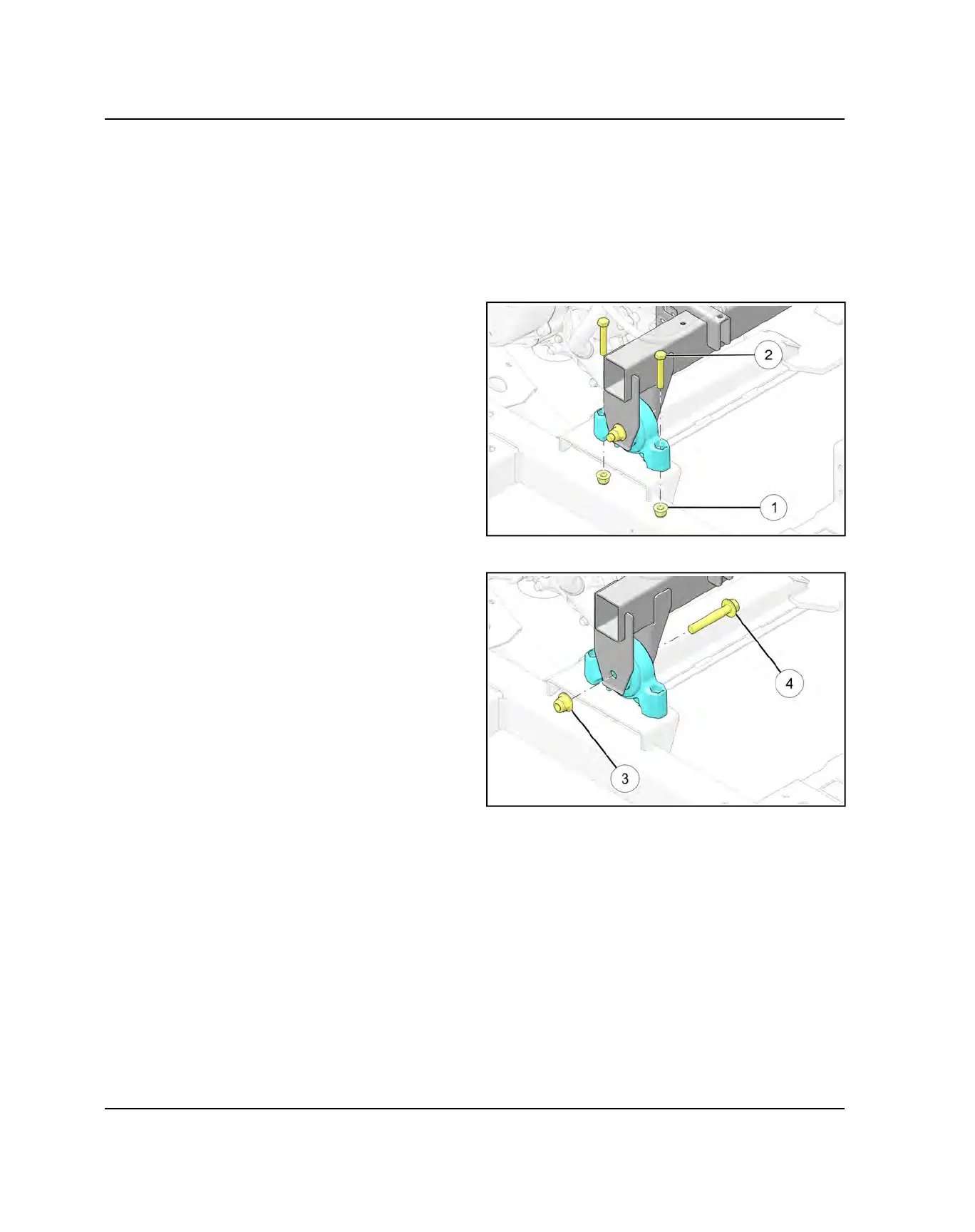

3. Remove the nuts

and fasteners

securing the

isolator to the frame.

4. Remove the isolator nut

and bolt

ENGINE / COOLING / EXHAUST
