3.23

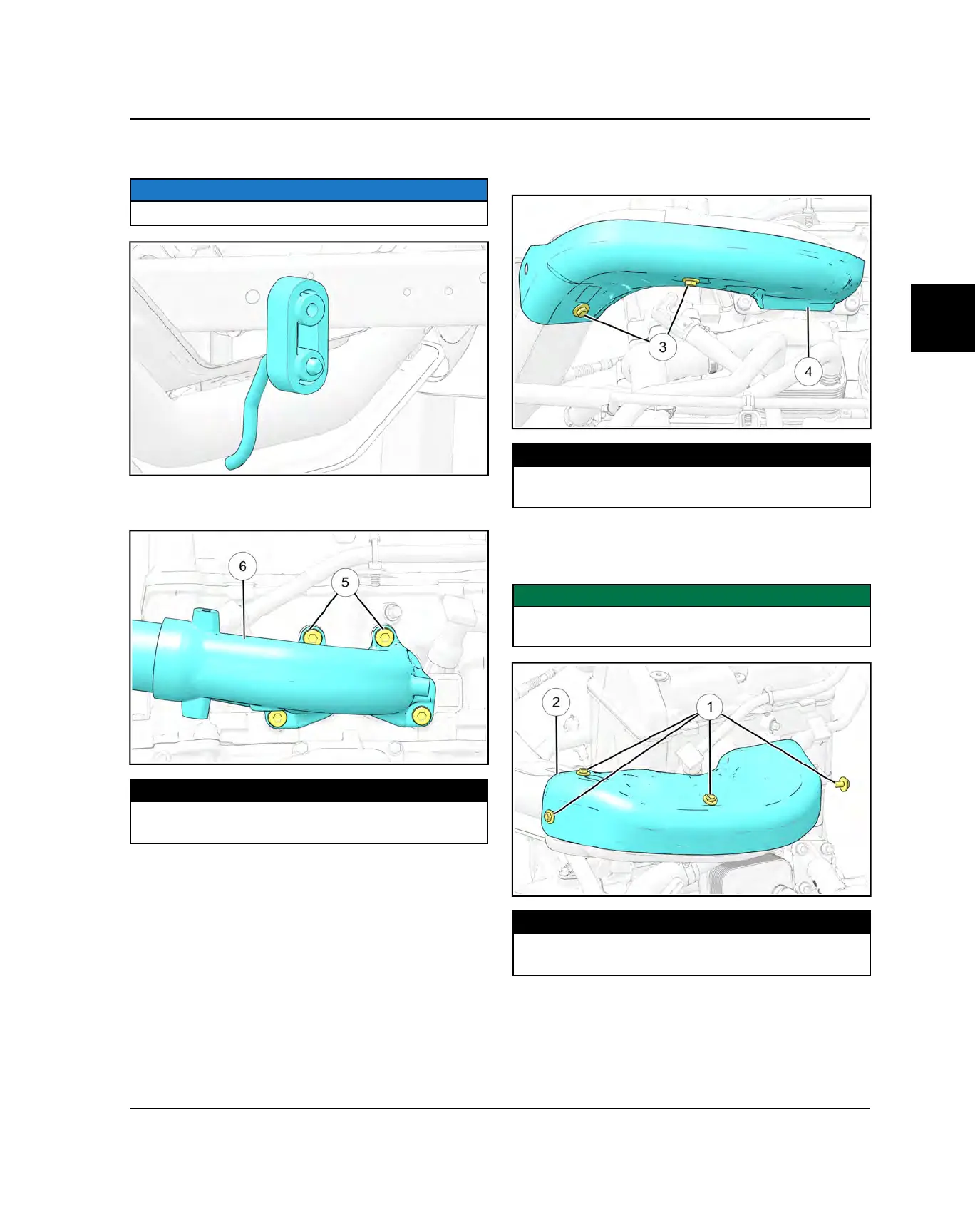

2. Install the headpipe in the vehicle, and connect the
exhaust isolator to the chassis.
NOTICE
Discard the headpipe gasket.
3. Install the headpipe
y
and secure to the engine
using headpipe fasteners
t
. Torque to specification.
TORQUE
Headpipe Fasteners:
22 ft-lbs (30 Nm)
4. Install the lower heat shield
r
, and secure to the
headpipe using heat shield fasteners
e
. Torque to
specification.
TORQUE
Heat Shield Fasteners:
6 ft-lbs (8 Nm)
5. Install the upper heat shield
w
and secure to the
headpipe using heat shield fasteners
q
. Torque to
specification.
IMPORTANT
Ensure the upper headpipe shield completely overlaps
the lower headpipe shield.
TORQUE
Heat Shield Fasteners:
6 ft-lbs (8 Nm)
6. Install the Exhaust Muffler. Refer to Muffler Service
page 3.20.
7. Install the Oxygen Sensor. Refer to Oxygen Sensor
Service page 4.27
