TRANSMISSION SERVICE

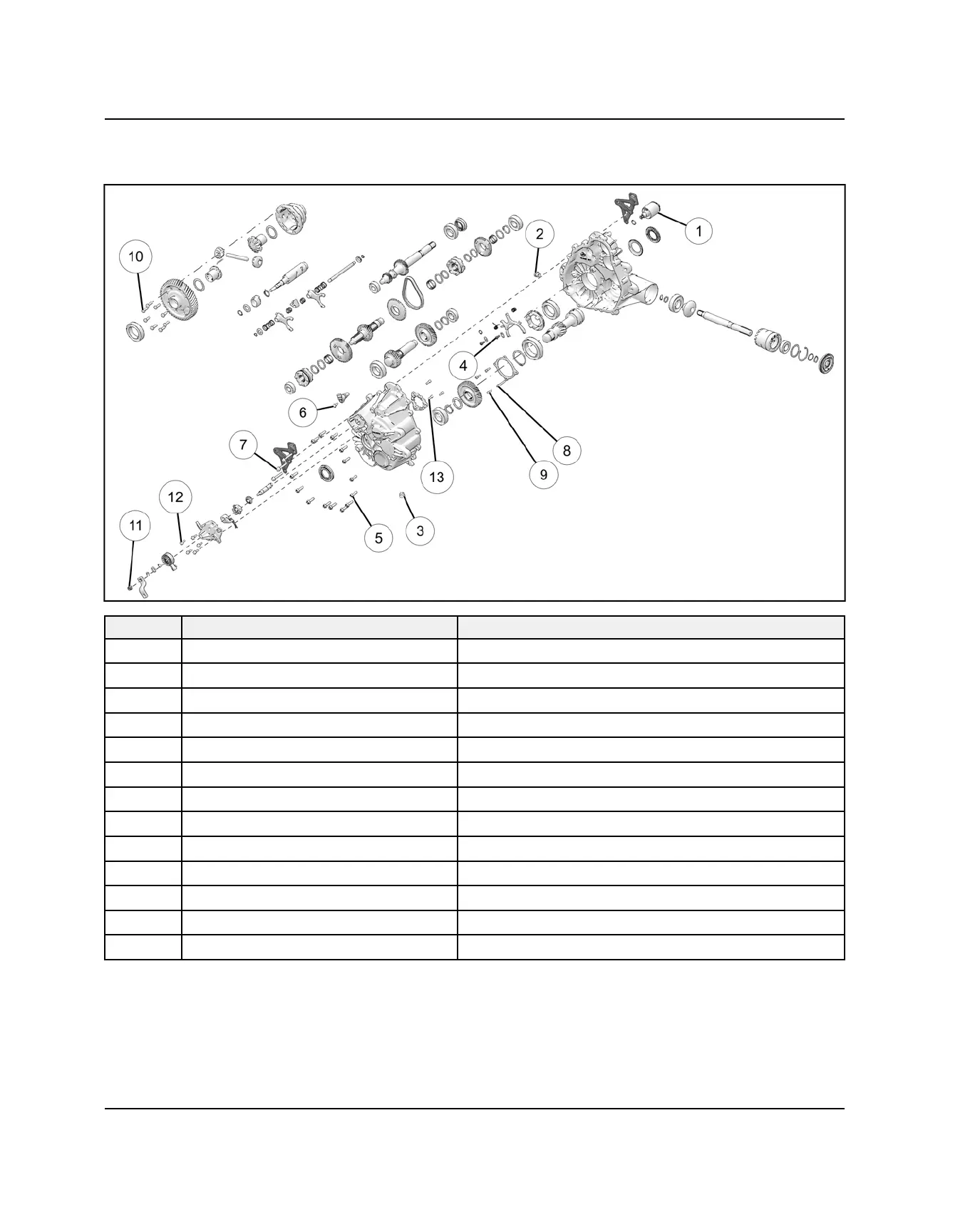

TRANSMISSION ASSEMBLY VIEW
ITEM DESCRIPTION
TORQUE
q
Solenoid
25 ft-lbs (34 Nm)
w
Fill Plug 12 ft-lbs (16 Nm)
e
Drain Plug, Magnetic 12 ft-lbs (16 Nm)
r
Fork Retainer Fastener
9 ft-lbs (12 Nm)
t
Transmission Case Fastener (QTY 14) 20 ft-lbs (27 Nm)
y
Speed Sensor Fastener 10 ft-lbs (14 Nm)
u
Rear Mount Bracket Fastener (QTY 2) 20 ft-lbs (27 Nm)
i
Bearing Cover Fastener 9 ft-lbs (12 Nm)
o
Bearing Cover Fastener (QTY 3) 9 ft-lbs (12 Nm)
a
Ring Gear Fastener (QTY 8) 28 ft-lbs (38 Nm)
s
Bellcrank Nut
14 ft-lbs (19 Nm)
d
Sector Cover Fastener (QTY 5) 10 ft-lbs (14 Nm)
f
Park Plate Fastener (QTY 3) 9 ft-lbs (12 Nm)
