7
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
7.13

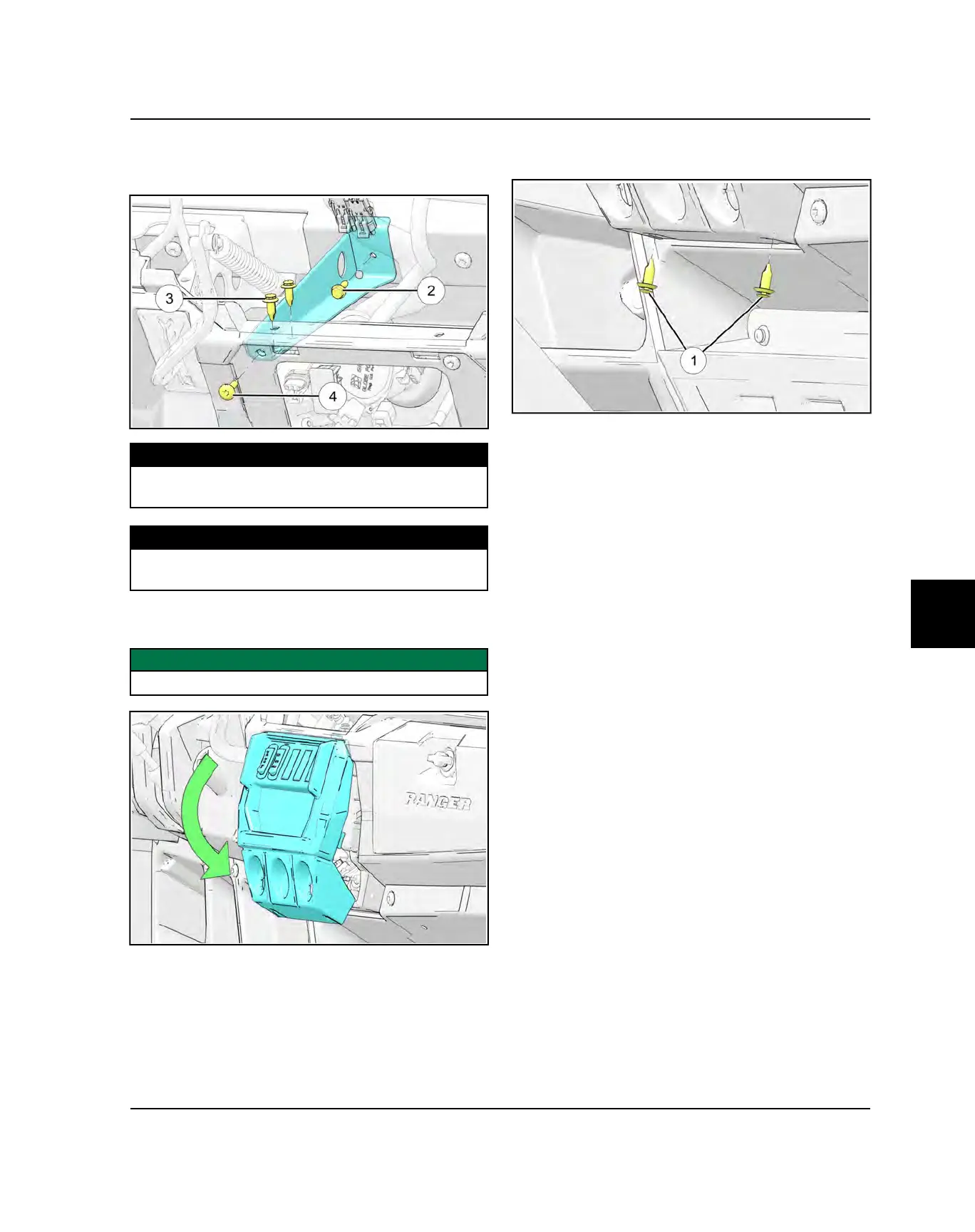

11. Install the T40 Torx fastener
r
, two push rivets
e
,
and 10mm fastener
w
. Torque fasteners
w
and
r
to
specification.
TORQUE
10mm Dash Bracket Fastener:
6 ft-lbs (8 Nm)
TORQUE
T40 Dash Bracket Fastener:
42 in-lbs (5 Nm)
12.Install the center dash panel and connect all electrical
connectors.
IMPORTANT
Ensure the top retaining tabs are engaged in the dash.
13.Install the two push rivets
q
into the bottom of the
center dash trim panel.
14.Install the propshaft tunnel cover. Refer to Floor
Panel Service page 11.63.
15.Install the upper dash panel.
TRANSMISSION
To Next Page
