PVT SYSTEM SERVICE

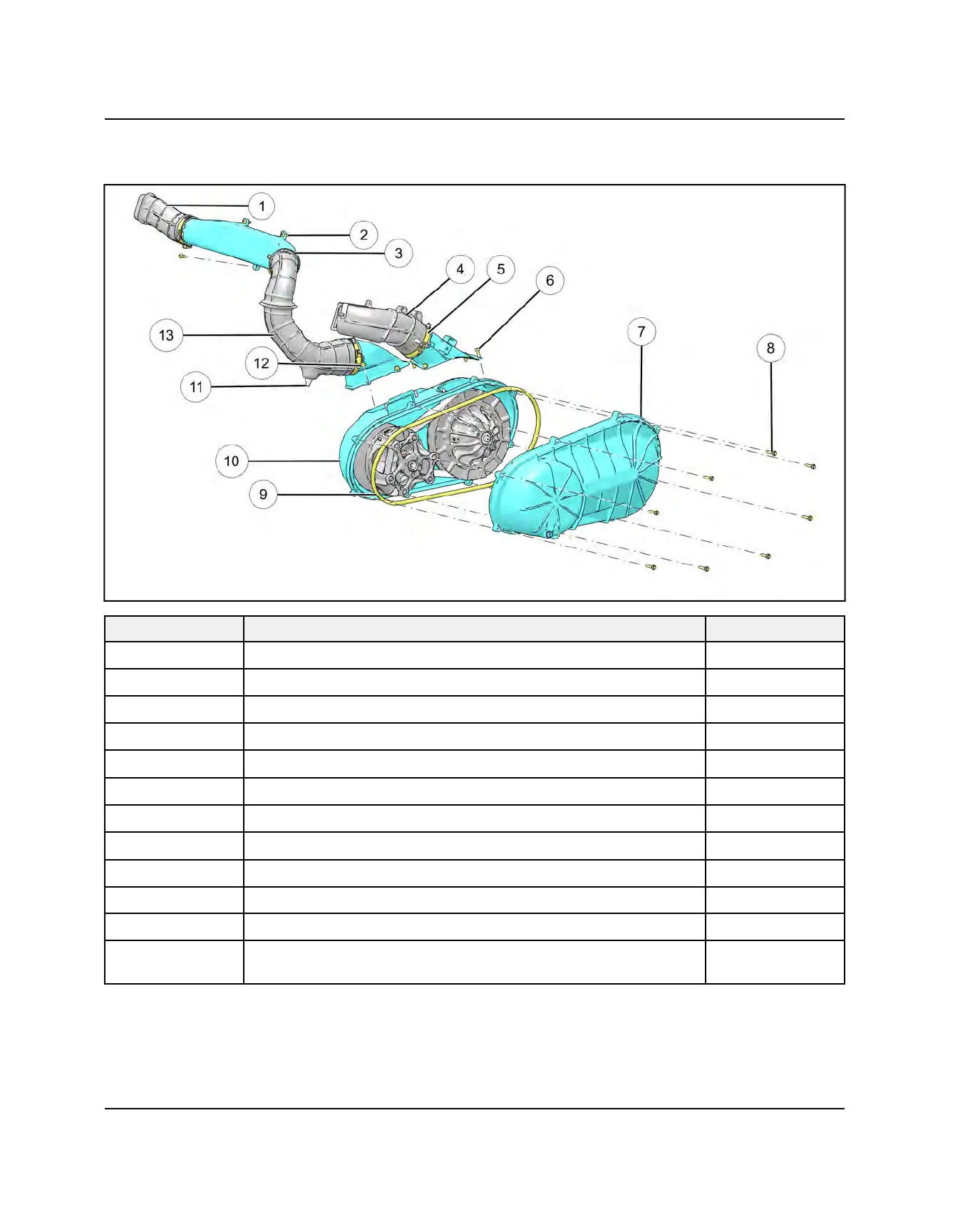

PVT COVERS AND DUCTING ASSEMBLY VIEW
REF DESCRIPTION
TORQUE
q
Clutch Hose Duct NA
w
Hose Ducting Fastener: 14 x 3/4 18 in-lbs (2 Nm)
e
Clutch Intake Duct NA
r
Clutch Outlet Duct NA
t
Hose Clamp 35 in-lbs (4 Nm)
y
Outlet Duct Fastener:
7 in-lbs (1 Nm)
u
Outer Clutch Cover NA
i
Outer Clutch Cover Fastener
44 in-lbs (5 Nm)
o
Outer Clutch Cover Seal NA
a
Inner Clutch Cover NA
s
Intake Duct Drain NA
d
Intake Duct Hose Fastening Nut: M6 x 1.0
72-78 in-lbs (8-9
Nm)
