3.16
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.

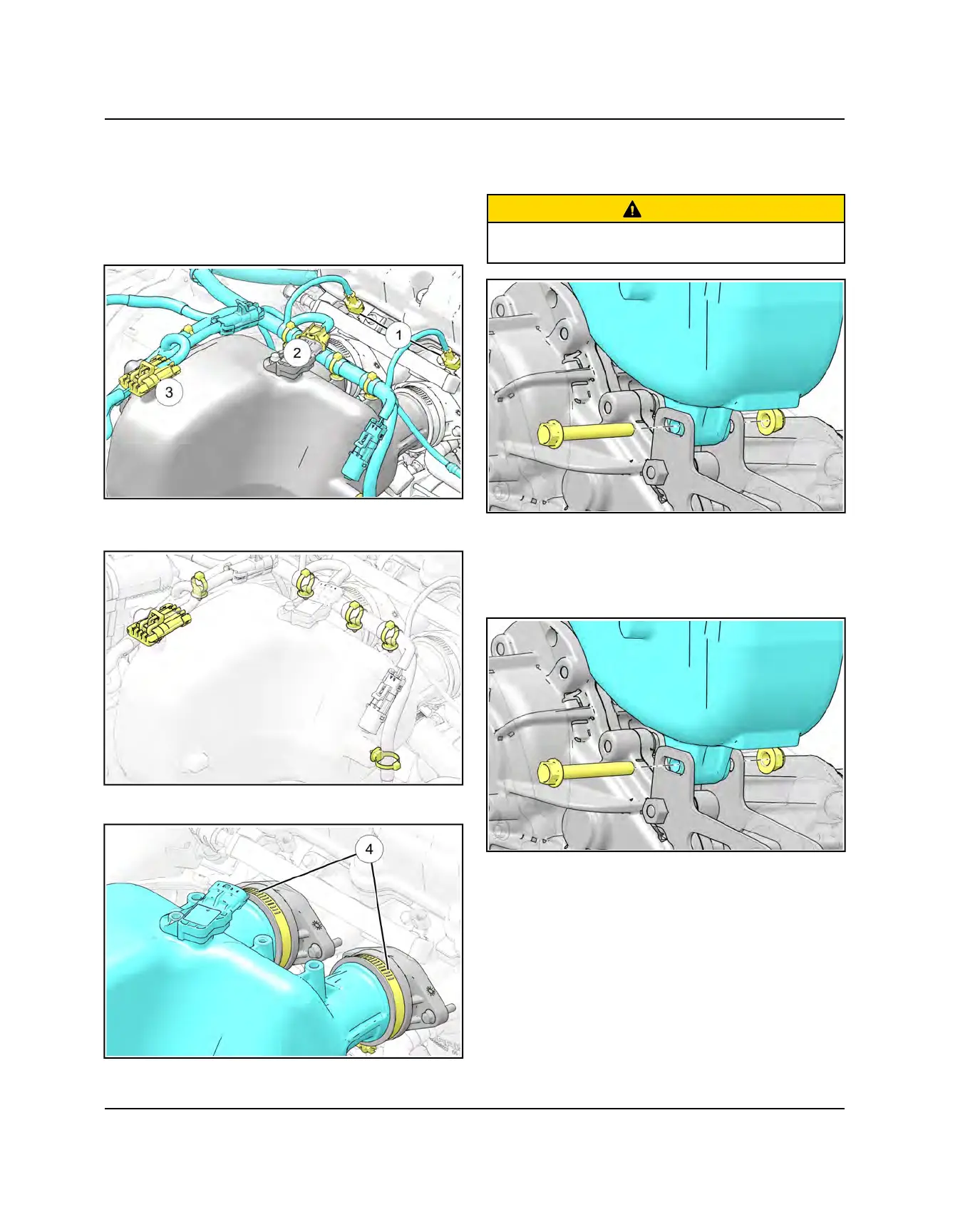

INTAKE MANIFOLD SERVICE
REMOVAL
1. Remove the throttle body. Refer to Throttle Body
Service page 3.15.
2. Disconnect the fuel injectors
q
, T-MAP Sensor
w
and tail light harness
e
.
3. Release the harness retention clips from the intake
manifold.
4. Loosen the intake manifold clamps.
5. Remove the lower manifold fastener on the
transmission bracket and carefully lift the manifold out
of the vehicle.
CAUTION
Avoid flexing the manifold adapters to prevent them
from tearing.
INSTALLATION
1. Install the manifold in the vehicle.
2. Install the lower manifold fastener and nut on the
transmission bracket. Do not torque at this time.
ENGINE / COOLING / EXHAUST
