CARGO BOX ASSEMBLY VIEW

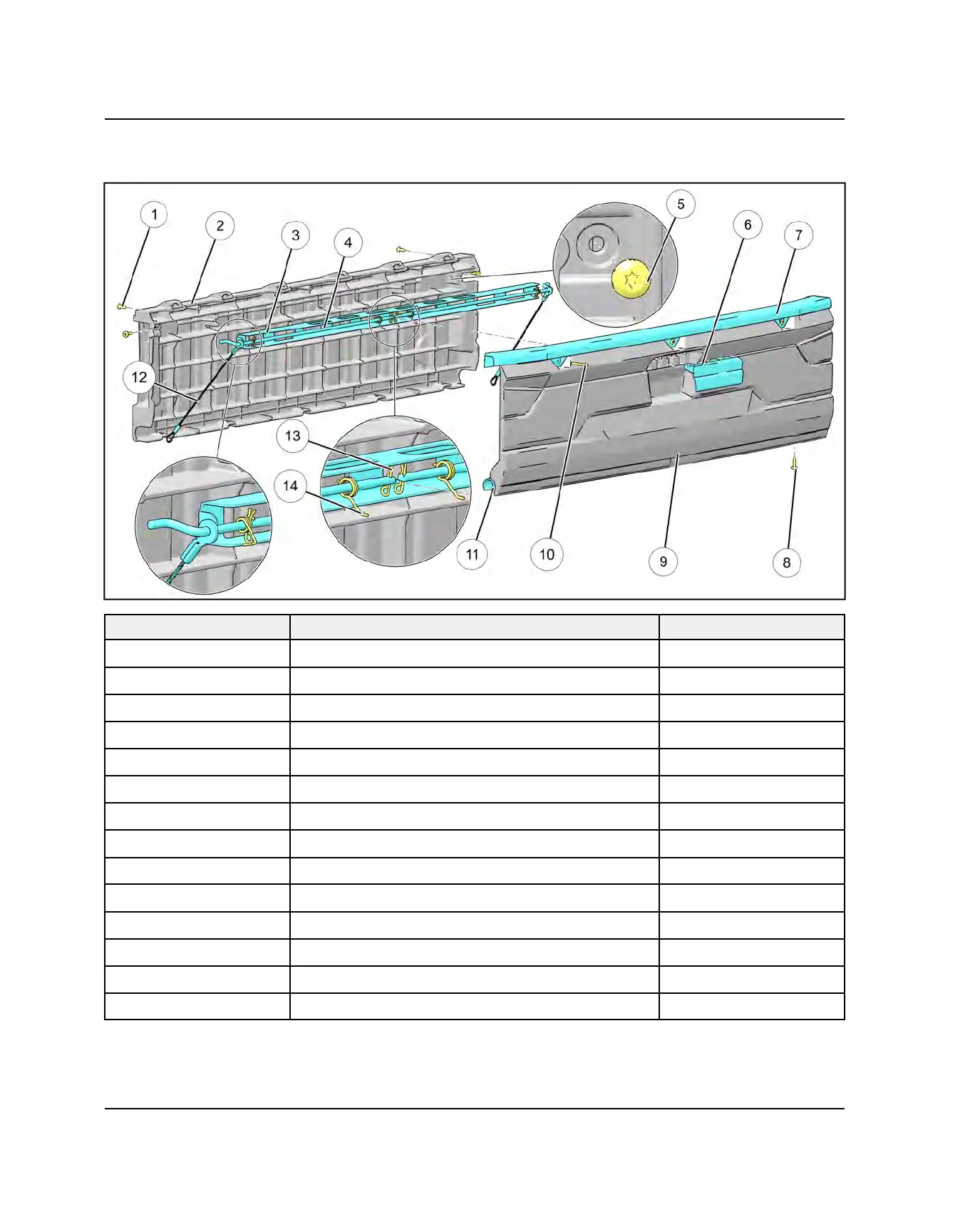

TAILGATE ASSEMBLY
REF
DESCRIPTION TORQUE / NOTE
q
TAILGATE CAP FASTENER 22 in lbs (2 Nm)
w
INNER TAILGATE PANEL
NA
e
TAILGATE SUPPORT BRACKET
NA
r
TAILGATE ROD LEFT AND RIGHT ROD
t
TAILGATE SUPPORT FASTENER 42 in-lbs (5 Nm)
y
TAILGATE LATCH
NA
u
TAILGATE CAP
NA
i
TAILGATE LOWER PANEL FASTENER 42 in-lbs (5 Nm)
o
TAILGATE OUTER PANEL
NA
a
OUTER TAILGATE PANEL FASTENER 22 in lbs (2 Nm)
s
TAILGATE OUTER PANEL
NA
d
TAILGATE CABLE
NA
f
TAILGATE ROD CLIP
NA
g
TAILGATE LATCH SPRING
NA
