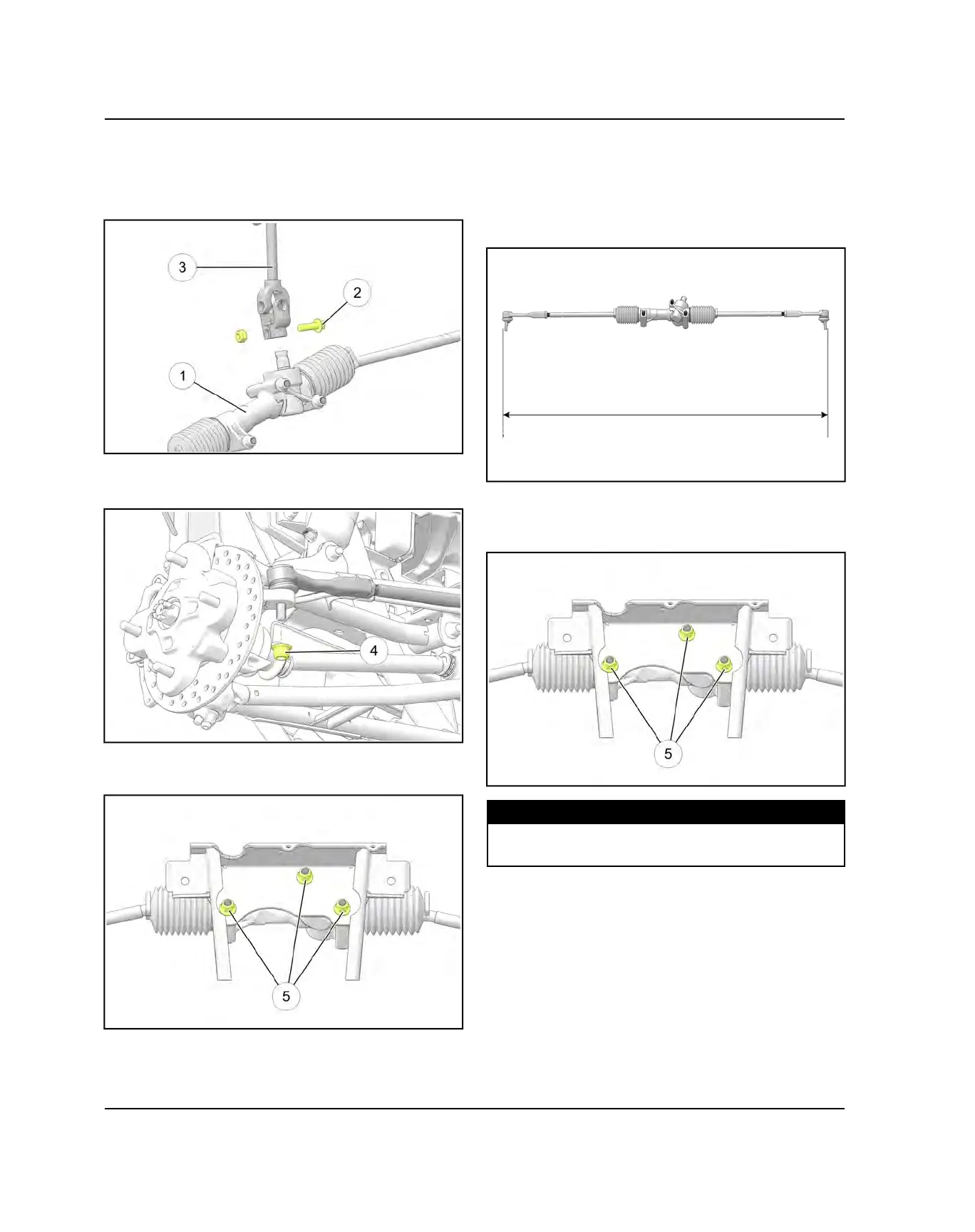

STEERING RACK REMOVAL
1. Remove the pinch bolt
w
retaining the lower portion
of the steering shaft
e
to the steering rack assembly
q
.
2. Remove the nuts
r
retaining the both tie rod ends to
the steering knuckle.
3. Remove the three fasteners
t
retaining the steering
rack to the frame.
4. Remove Steering Rack from vehicle.
STEERING RACK INSTALLATION
1. Lay the old and new steering racks next to each other
on a clean surface. Measure the old steering rack
length from tie rod end to tie rod end. Turn the tie rod
ends in or out to adjust the new steering rack to this
measurement.
2. Install the new steering rack into the vehicle. Install
three nuts
t
retaining the steering rack to the frame.
Torque to specification.
TORQUE
Steering Rack Mounting Nuts:
40 ft-lbs (54 Nm)
STEERING / SUSPENSION
