CAB FRAME SERVICE
WINDSHIELD SERVICE

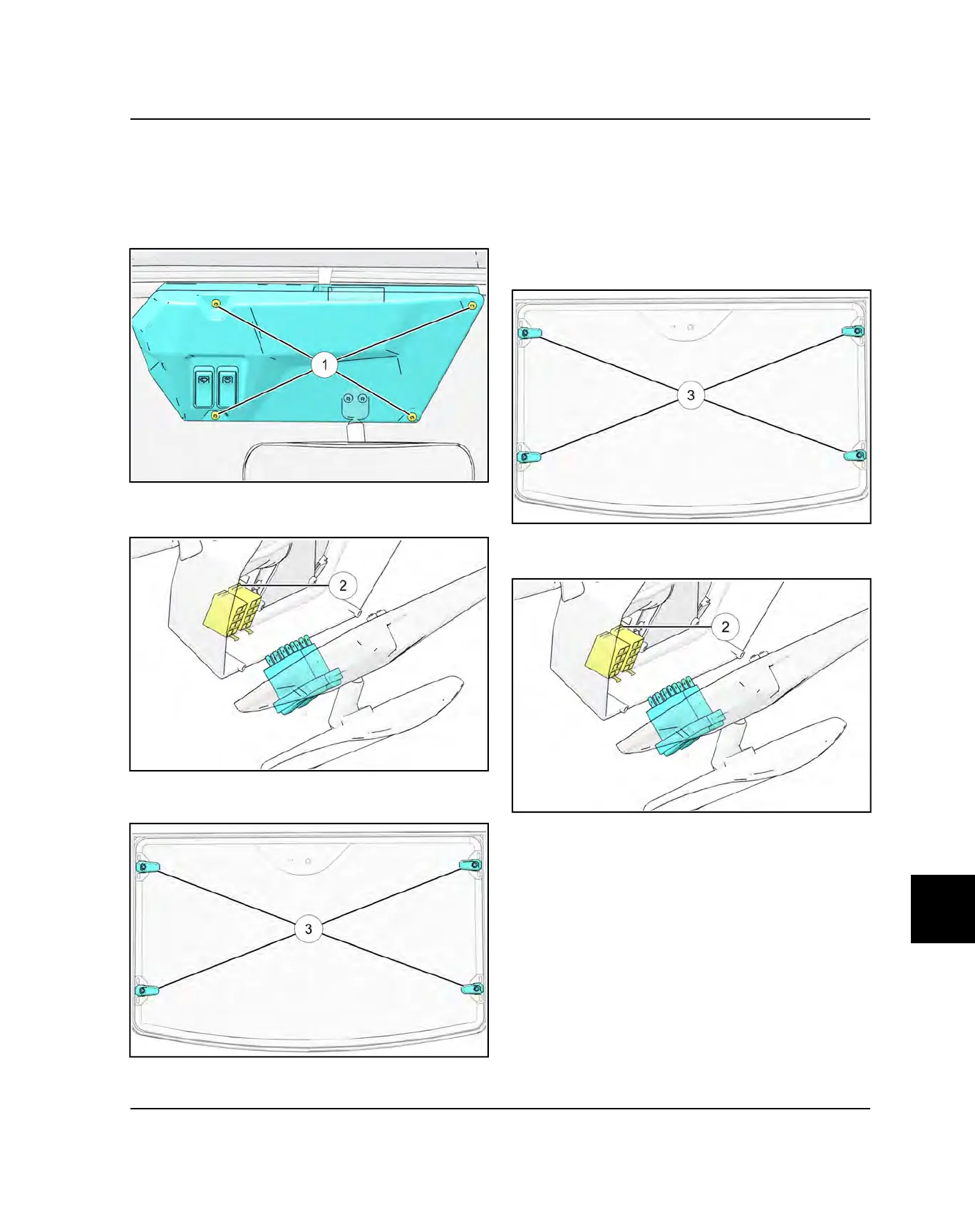

REMOVAL
1. Remove the four T20 Torx fasteners
q
securing the
wiper motor trim panel to the windshield.
2. Disconnect the wiper motor connectors
w
and set the
trim panel with rear view mirror aside.
3. Release the lock-and-ride connections
e
securing
the windshield to the ROPS.
4. With the aid of an assistant, remove the windshield
and set aside.
INSTALLATION
1. With the aid of an assistant, install the windshield.
2. Rotate the lock-and-ride connections
e
to secure the
windshield to the ROPS.
3. Connect the wiper motor connectors
w
, and install
the trim panel with rear view mirror.
