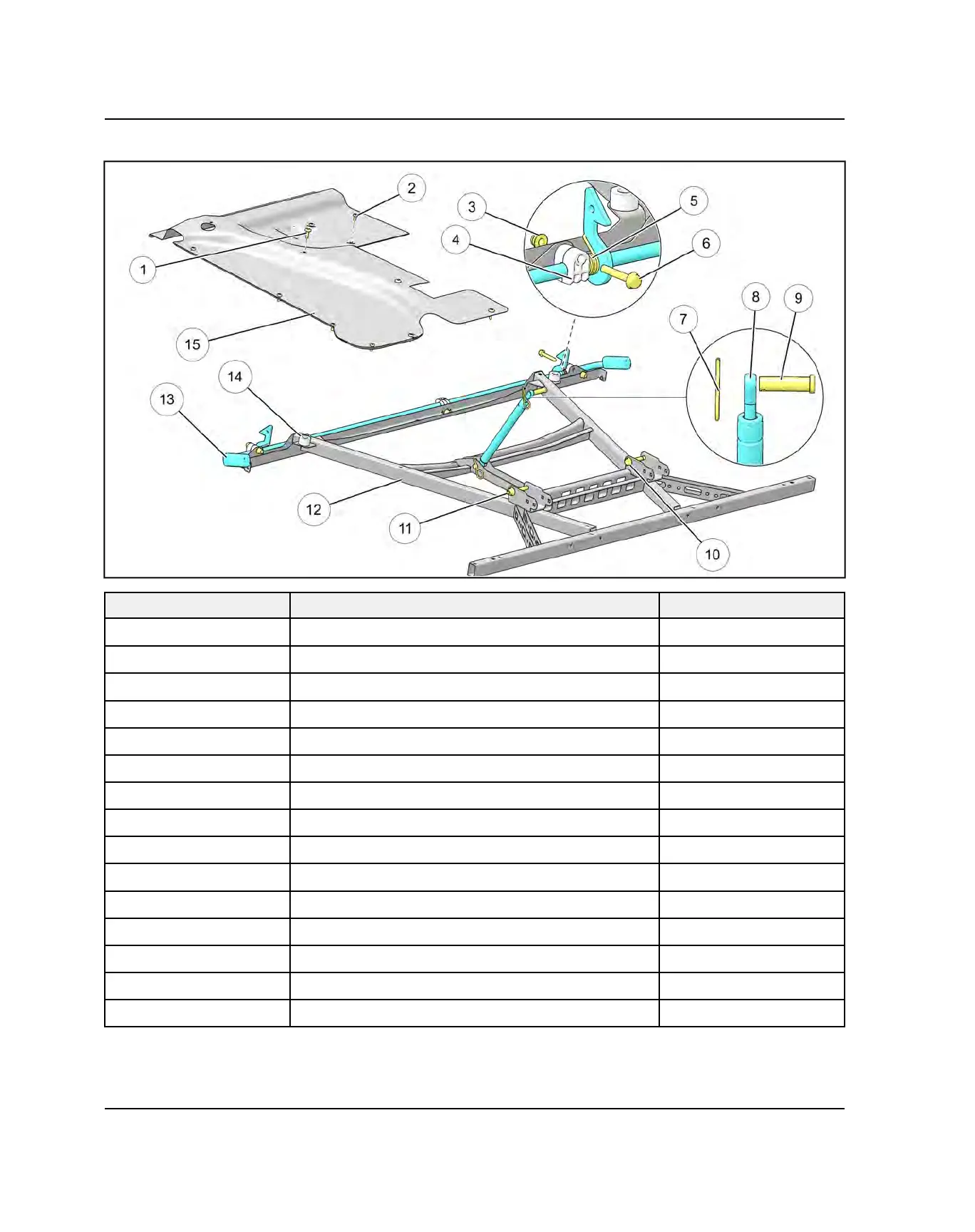

CARGO BOX FRAME ASSEMBLY
REF
DESCRIPTION TORQUE
q
CARGO BOX HEAT SHIELD FASTENER M6X1.0 42 in-lbs (5 Nm)
w
CARGO BOX HEAT SHIELD FASTENER 14X5/8 18 in lbs (2 Nm)
e
CARGO BOX LATCH BUSHING FASTENING NUT 13 ft lbs (18 Nm)
r
CARGO BOX LATCH BUSHING
NA
t
LATCH SPRING
NA
y
CARGO BOX LATCH BUSHING FASTENER 13 ft lbs (18 Nm)
u
HITCHPIN CLIP
NA
i
CARGO BOX SHOCK
NA
o
CLEVIS PIN
NA
a
CARGO BOX FRAME FASTENER 14 ft lbs (19 Nm)
s
CARGO BOX FRAME FASTENING NUT 14 ft lbs (19 Nm)
d
CARGO BOX SUPPORT FRAME
NA
f
CARGO BOX LATCH HANDLE
NA
g
BOX BUMPER
NA
h
CARGO BOX HEAT SHIELD
NA
