Polaris RANGER 1000 2020 - Page 169

3
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
3.17

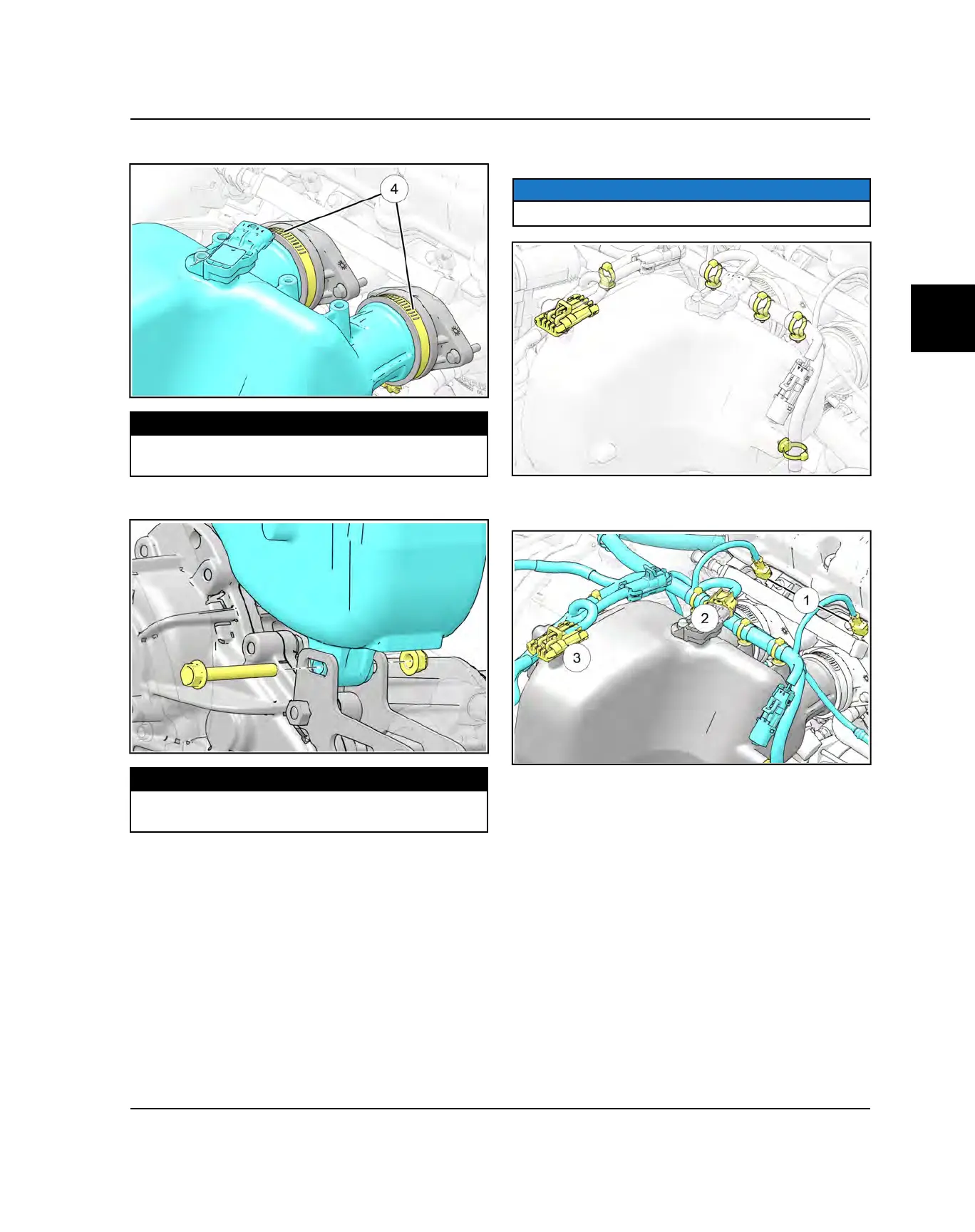

3. Torque the intake manifold clamps
r
to specification.
TORQUE
Intake Manifold Clamps:
17 in-lbs (2 Nm)
4. Torque the lower intake manifold fastener.
TORQUE
Lower Intake Manifold Fastener:
18 ft-lbs (24 Nm)
5. Install the harness retention clips on the intake
manifold.
NOTICE
Replace cable ties if previously cut.
6. Connect the fuel injectors
q
, T-MAP Sensor
w
and
tail light harness
e
.
7. Install the intake duct from the airbox to the throttle
body. Refer to Intake Duct Service page 3.12.
ENGINE / COOLING / EXHAUST
