11.51

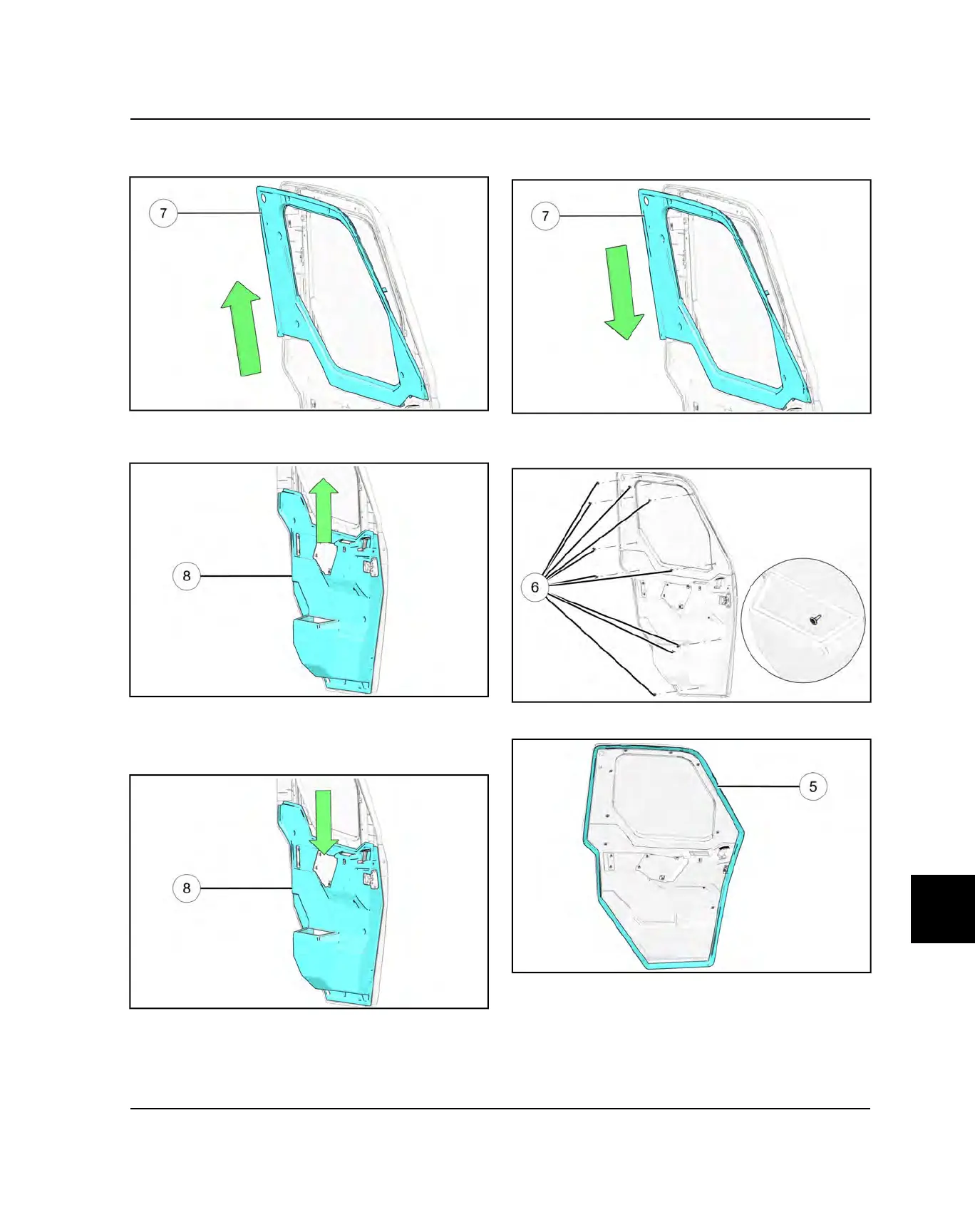

7. Pull the upper trim panel
u
out and lift straight up to
remove from the vehicle.
8. Lift the lower trim panel
i
straight up and over the
door handle to remove from the vehicle.
INSTALLATION
1. Install the lower trim panel
i
straight down over the
door handle to install in the vehicle.
2. Install the upper trim panel
u
and push into the door
to engage the retainers.
3. Install the nine push rivets
y
to secure the door
panels to the door assembly.
4. Install the door seal
t
.
