8.52
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.

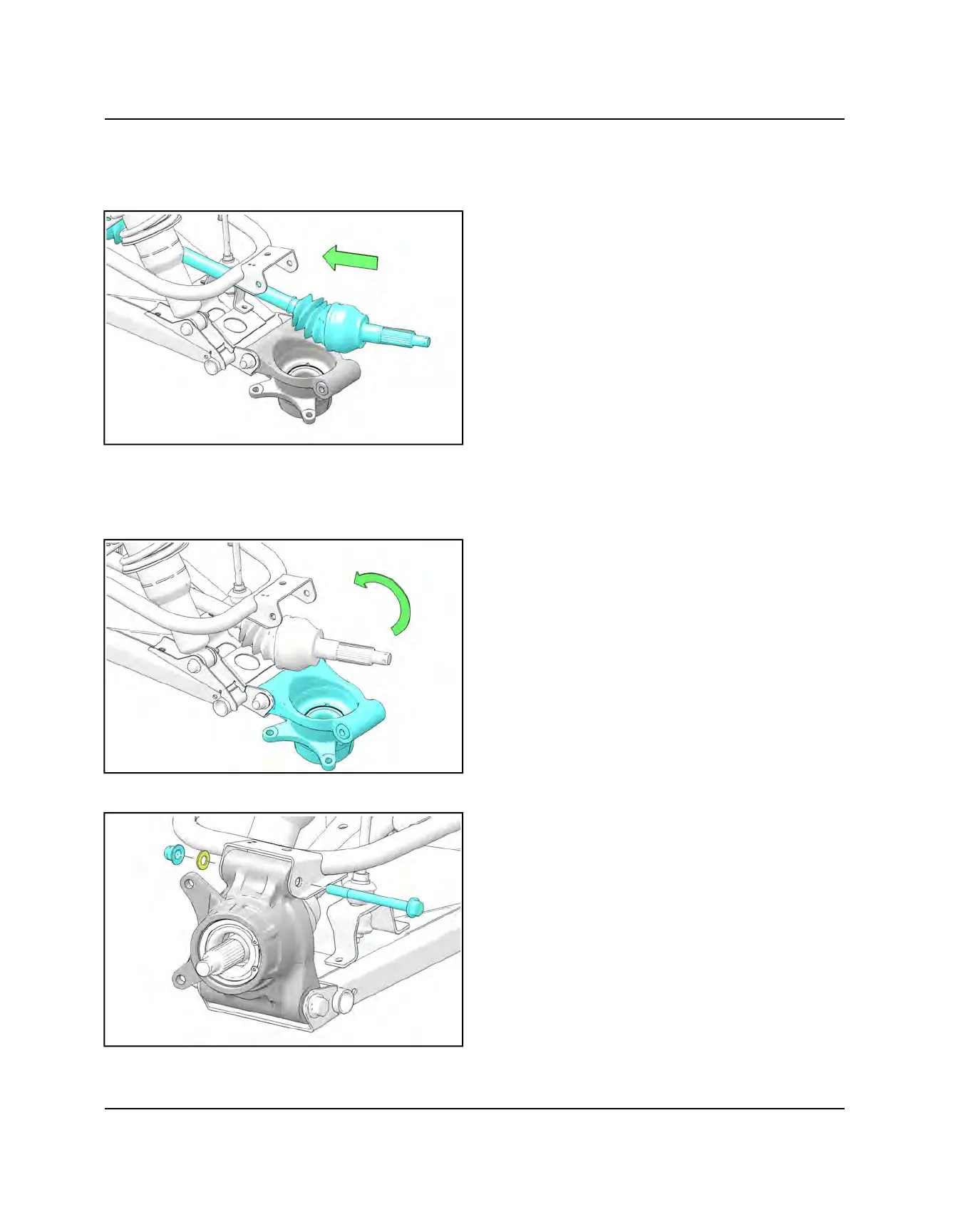

2. Align splines of the drive shaft with the transmission
and reinstall the drive shaft. Use a rubber mallet to
tap on the outboard end of the drive shaft if
necessary.
3. Perform push / pull test on the axle ensure the
retaining ring is locked into the rear gearcase.
4. Rotate the bearing carrier onto the drive axle and
rotate into upper A-arm.
5. Install the upper bearing carrier fastener.
6. Refer toRear Bearing Carrier Installation page
procedure to reassemble the vehicle.
FINAL DRIVE
