3
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
3.45

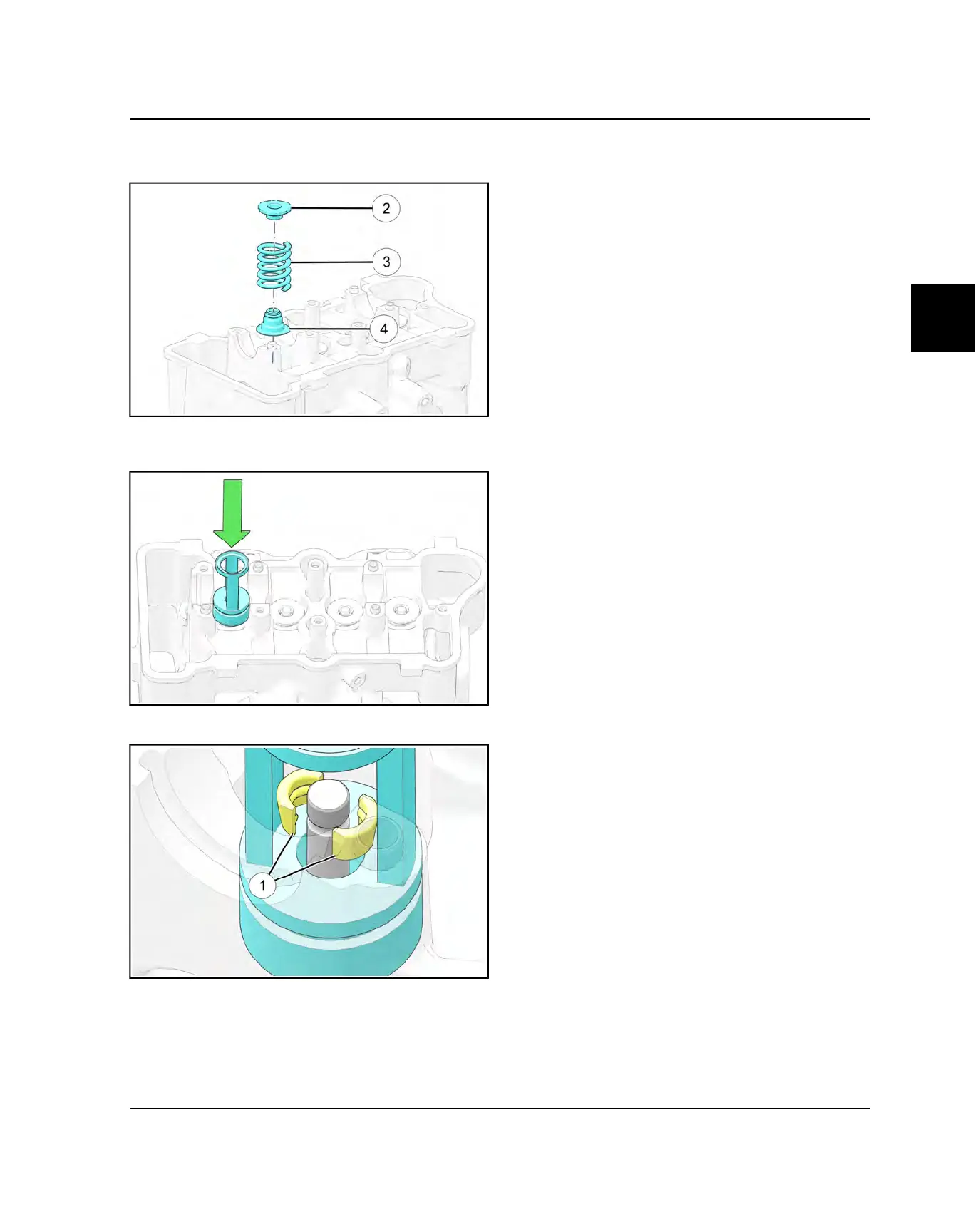

2. Install a NEW valve stem seal
r
with the valve spring
e
and valve spring cap
w
.
3. Compress the valve spring using valve spring
compressor PU-52917 to expose the valve keepers.
4. Install the two valve keepers
q
.
5. Install the cylinder head. Refer to Cylinder Head
Removal and Installation page 3.41.
6. Install the camshaft. Refer to Camshaft Service page
3.39.
ENGINE / COOLING / EXHAUST
