11. Clean bolt hole threads in connecting rod to remove
all oil.

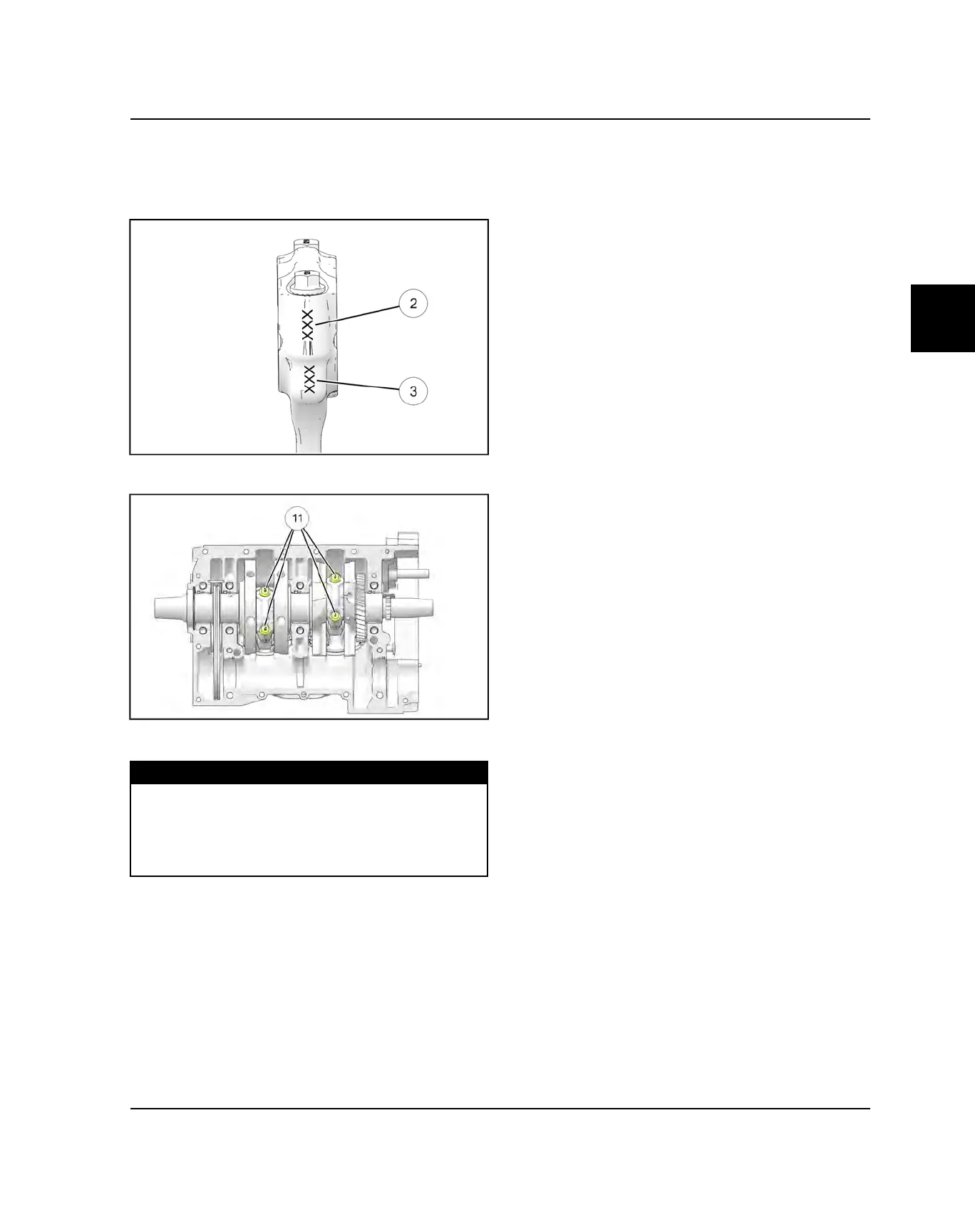

12.Install matching rod cap on connecting rod with 3 digit
serial number stampings aligned
w
&
e
.
13.Install new bolts
s
and tighten evenly until snug.
14.Torque connecting rod bolts to specification.
TORQUE
Connecting Rod Bolts:
Step 1: 9 ft-lbs (12 Nm)
Step 2: 22 ft-lbs (30 Nm)
Step 3: Tighten additional 90°
15.Install the balance shaft. Refer to Balance Shaft
Service page 3.57.
