9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.

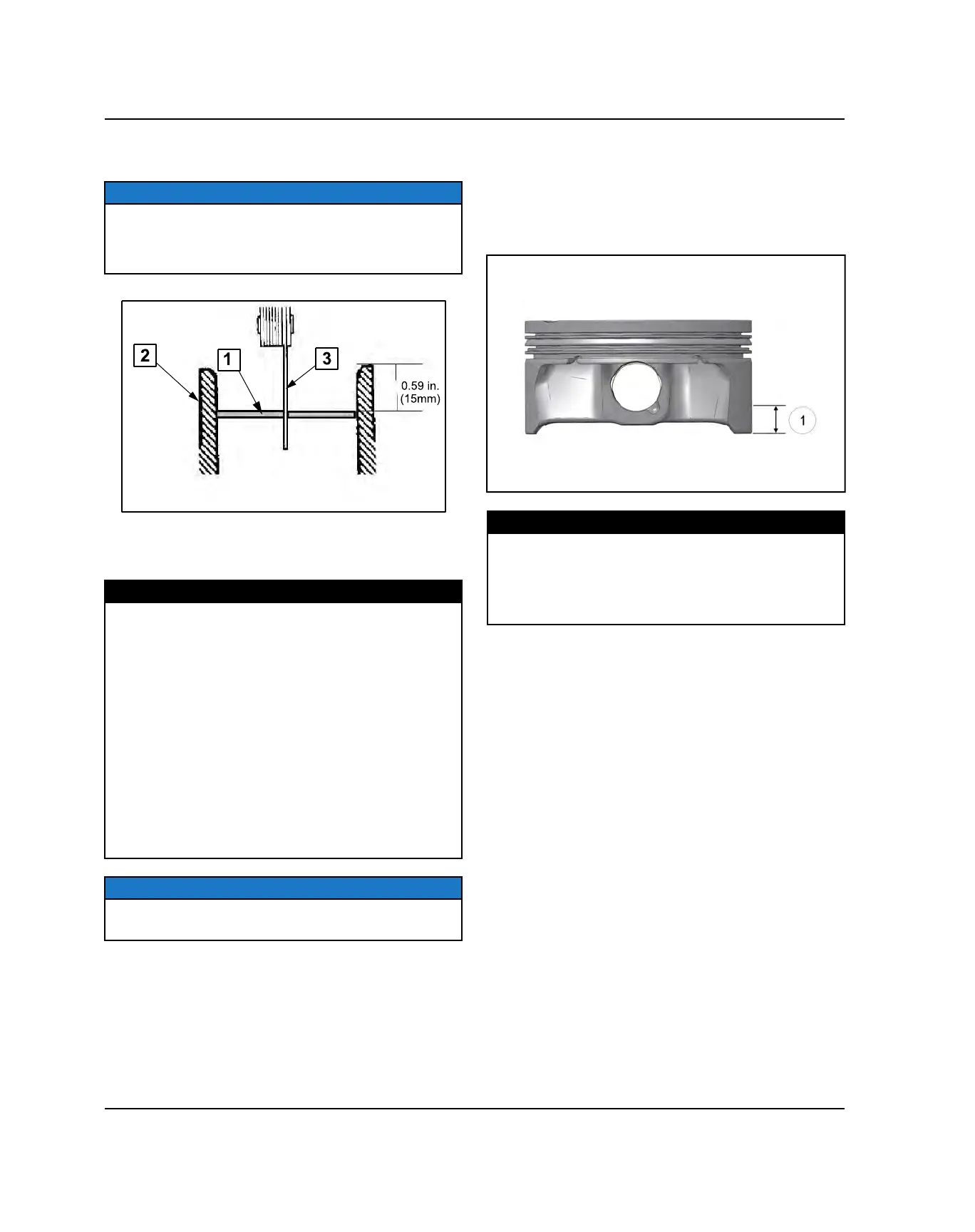

2. Measure installed gap with a feeler gauge
e
at both
the top and bottom of the cylinder.
NOTICE
A difference between top and bottom end gap
measurements is a general indication of cylinder taper
(wear). The cylinder should be measured for taper and
out of round.
3. If the installed gap measurement exceeds the service
limit, replace the rings.
MEASUREMENT
Piston Ring Installed Gap:
Top Ring:
0.015 - 0.025" (0.37 - 0.63 mm)
Service Limit:
0.031" (0.8 mm)
Second Ring:
0.010 - 0.014" (0.25 - 0.35 mm)
Service Limit:
0.0197" (0.5 mm)
Oil Control Rails:
0.010 - 0.040" (0.25 - 1.02 mm)
Service Limit:
0.0433" (1.1 mm)
NOTICE
Always check piston ring installed gap when installing
new rings and/or a new cylinder.
PISTON-TO-CYLINDER CLEARANCE
Measure piston outside diameter at a point 10 mm
q
up
from the bottom of the piston, at a right angle to piston
pin bore.
Subtract measurement from maximum measurement
obtained in Step 4 of “Cylinder Inspection” procedure.
MEASUREMENT
Piston O.D. (Standard):
0.7872 - 0.7874" (19.995 - 20.004 mm)
Piston to Cylinder Clearance:
0.0014 - 0.0026" (0.035 - 0.065 mm)
ENGINE / COOLING / EXHAUST
