9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.

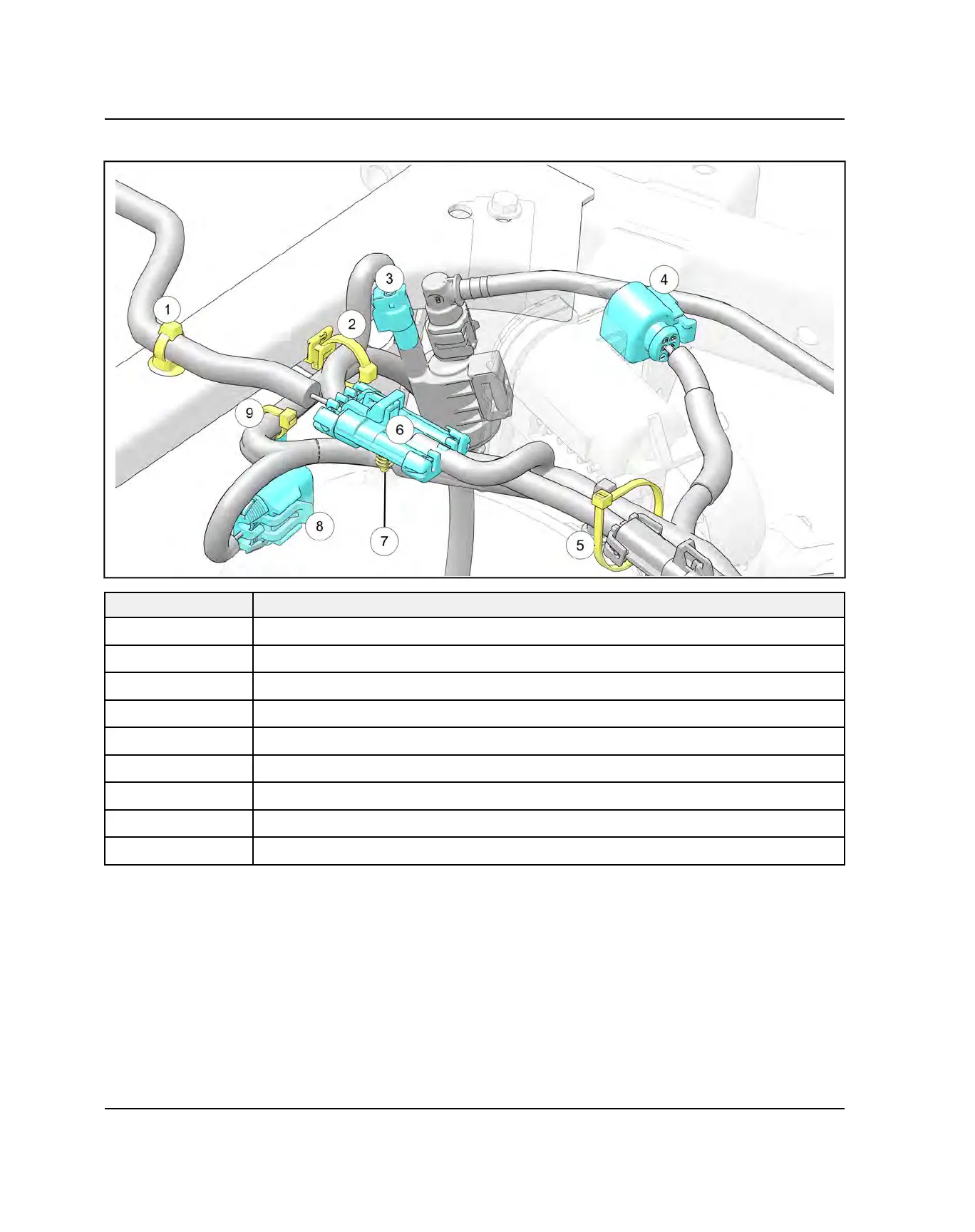

LEFT REAR ENGINE BAY
REF DESCRIPTION
q
Tree Clip (Into Chassis)
w
Retention Clip (Wrap around both wiring bundles and attach to chassis)
e
Purge Solenoid Connector (CA Models ONLY)
r
Throttle Body Connector
t
Zip Tie (Around both wiring bundles)
y
Trunk Harness Connector
u
Tree Clip (Trunk Harness Connector into Intake Manifold)
i
Reverse Beeper Connector (INTL Only)
o
Zip Tie (Wrap around both wiring bundles)
