4.15

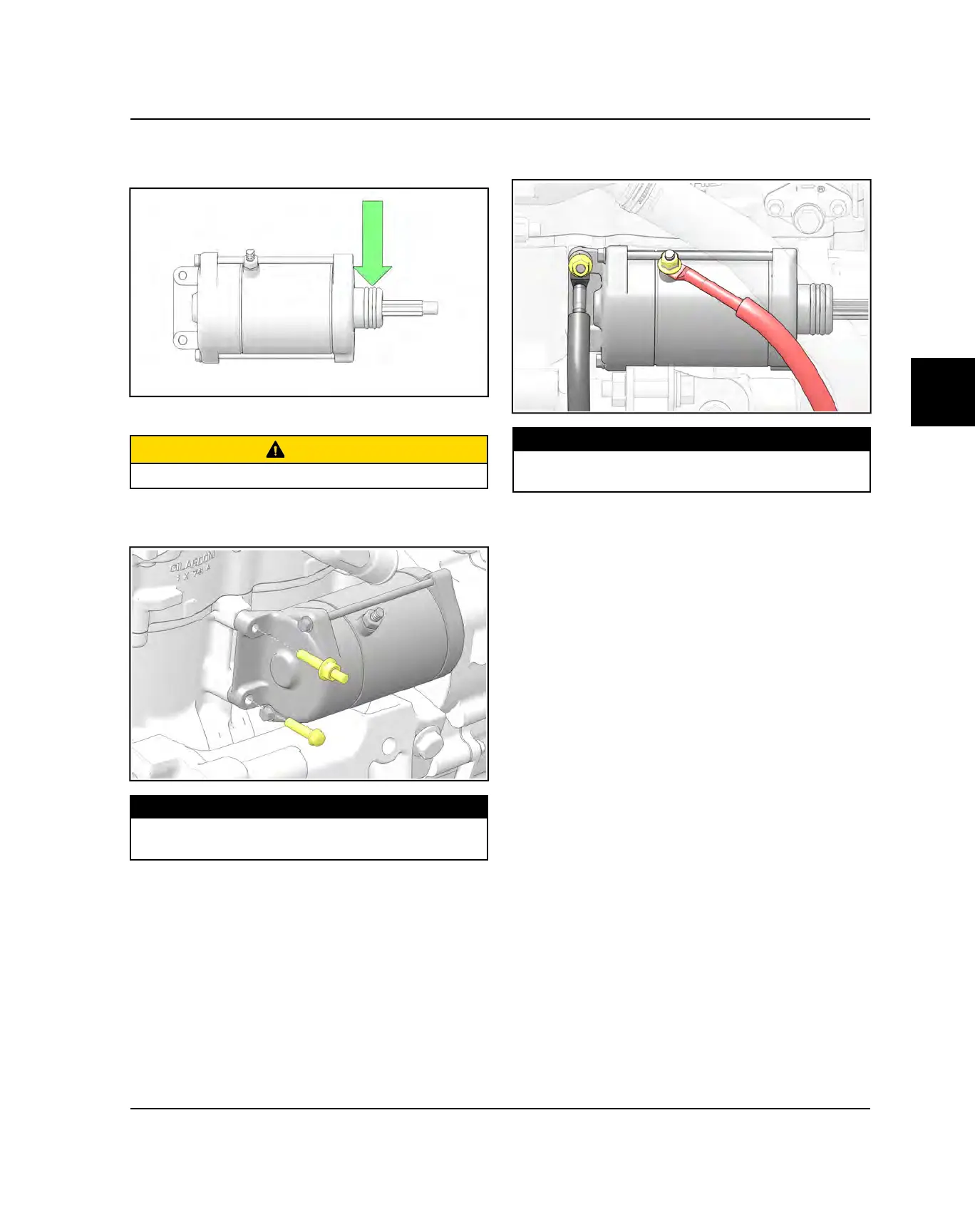

INSTALLATION
1. Replace and lubricate the starter O-rings.
2. Install the starter motor in the vehicle.
CAUTION
Use care not to damage the O-rings when installing.
3. Install the starter mounting fasteners and torque to
specification.
TORQUE
Starter Mounting Fasteners:
7 lb-ft (10 Nm)
4. Install the starter cables and secure with starter cable
nuts. Torque to specification.
TORQUE
Starter Mounting Fasteners:
48 in-lbs (5 Nm)
5. Install the Intake Manifold. Refer to Intake Manifold
Service page 3.16.
6. Connect the battery. Refer to Battery Service page
2.62.
ENGINE ELECTRICAL
