O2 SENSOR HEATER TESTING

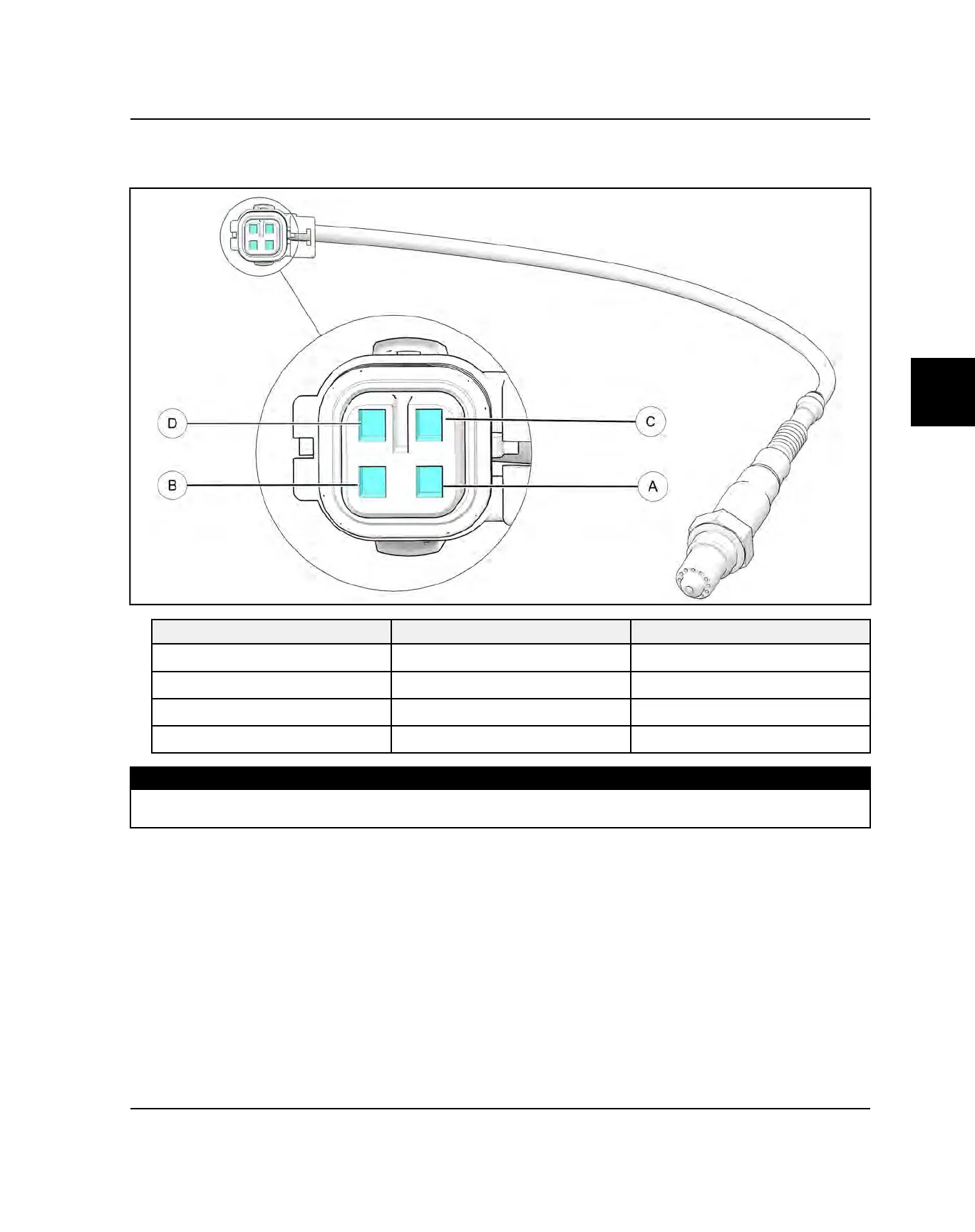

1. Measure the resistance between pins B and D.
CONNECTOR PIN WIRE COLOR PIN AND WIRE CONNECTION
A
Gray
Sensor Ground
B
Black
Sensor Output
C
White Heater Power
D
White Heater Ground
MEASUREMENT
O2 Sensor Heater Resistance:
15.8 Ω - 18.6 Ω
