INSTALLATION

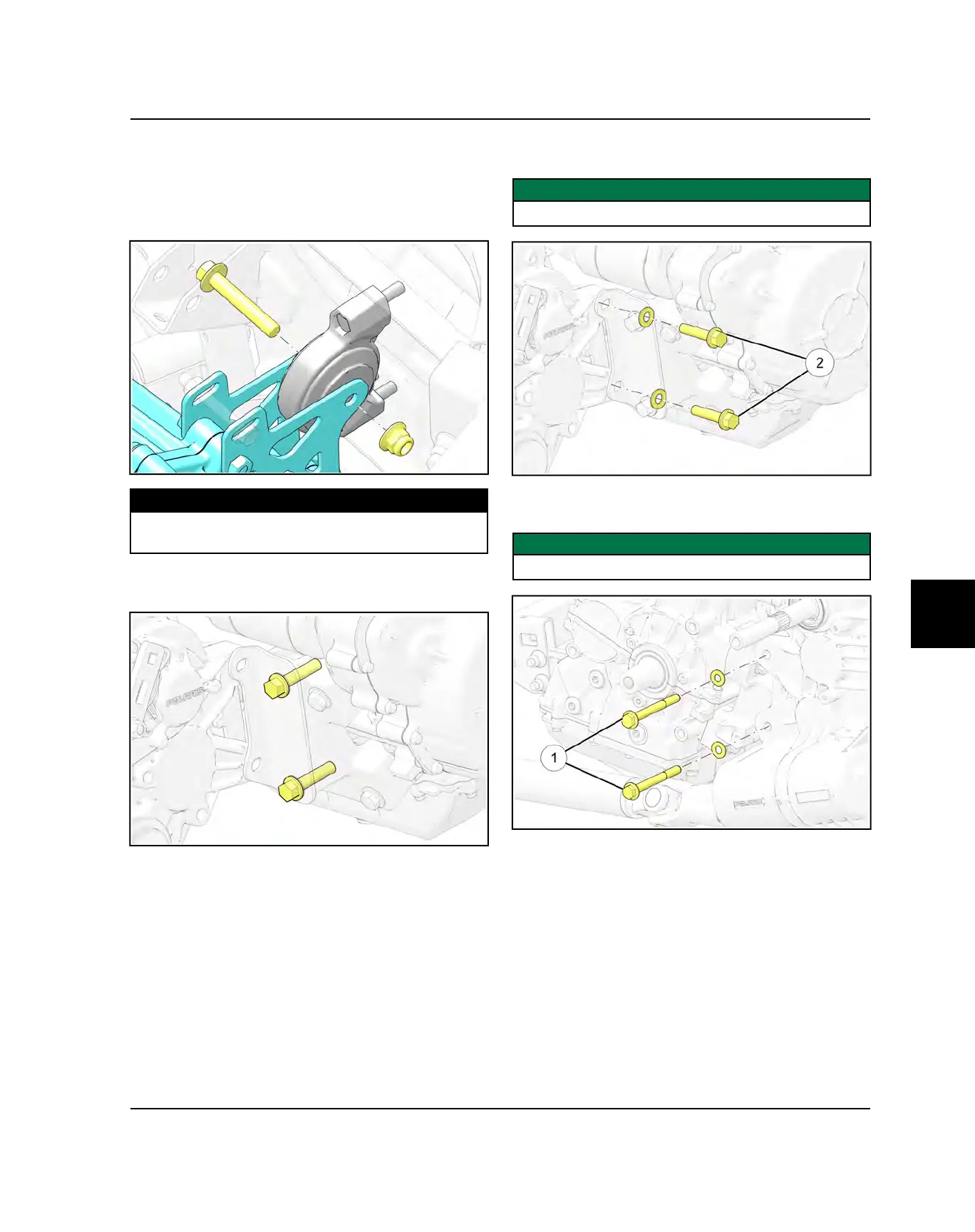

1. Install the transmission in the vehicle and line up the
rear isolator mounting hole.
2. Loosely install the rear transmission isolator fastener
and nut.
TORQUE
Transmission Rear Isolator Fastener:
40 ft-lbs (54 Nm)
3. Loosen the two fasteners securing the transmission
mount bracket to the engine.
4. Loosely install NEW engine to transmission mounting
fasteners and washers
w
.
IMPORTANT
Do NOT torque at this time.
5. Loosely NEW engine to transmission mounting fas-
teners and washers
q
on the PTO side of the engine.
IMPORTANT
Do NOT torque at this time.
TRANSMISSION
