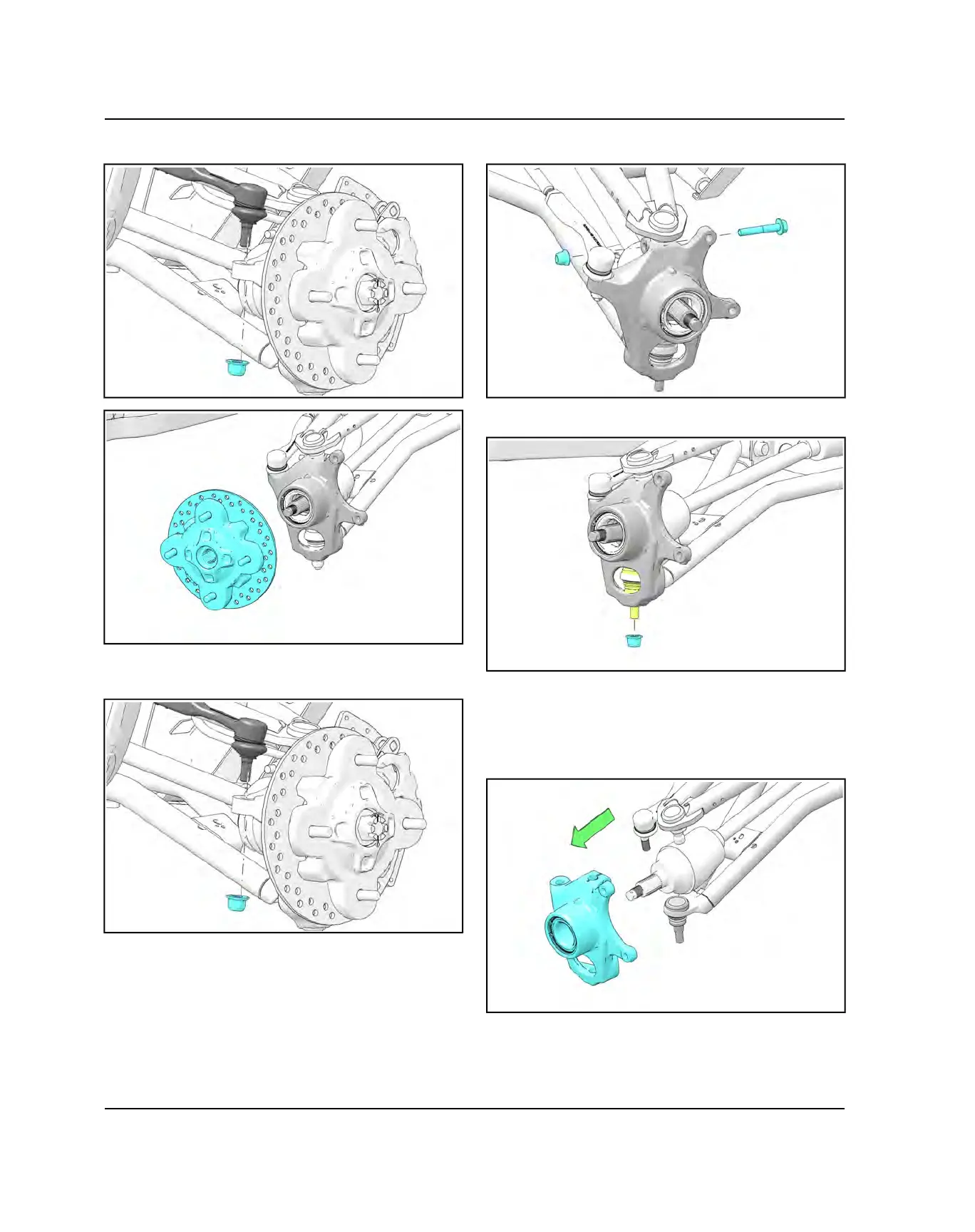

7. Remove the wheel hub and brake disc assembly.
8. Remove the fastener retaining the tie rod end to the
bearing carrier.
9. Remove the upper ball joint pinch bolt.
10.Remove the lower ball joint fastener.
11. Using a soft faced hammer, lightly tap the bearing
carrier while removing the upper and lower ball joints
ends from the bearing carrier.
12.Pull the bearing carrier out to remove it from the
driveshaft.
FINAL DRIVE
