LOWER FENDER SERVICE

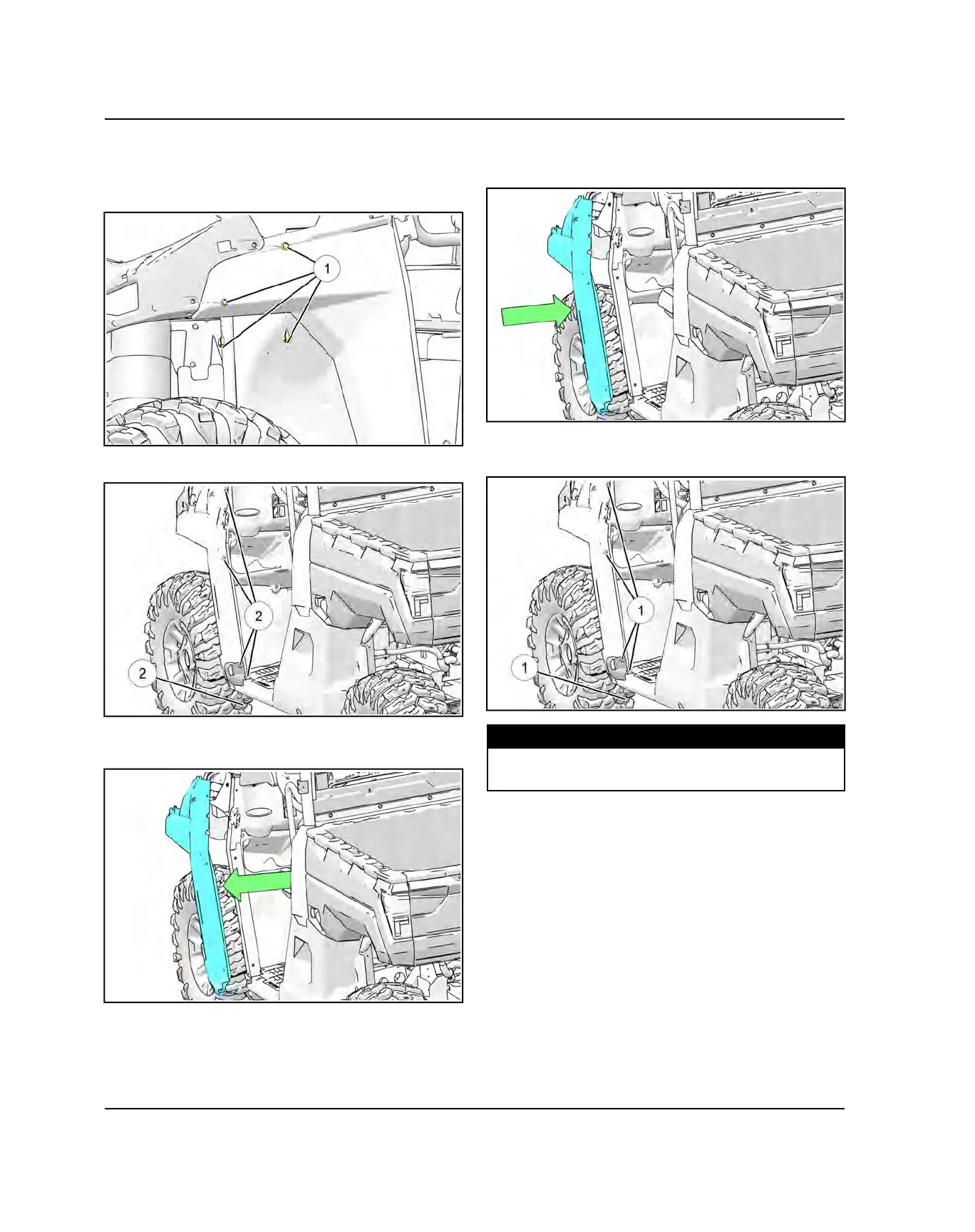

1. Remove the upper fender.
2. Remove the four push rivets
q
.
3. Remove the five T-40 torx fasteners
w
.
4. Pull the lower fender straight out from vehicle to
remove.
LOWER FENDER INSTALLATION
1. Install the lower fender straight on as shown.
2. Install the five T-40 torx fasteners
q
and torque to
specification.
TORQUE
Body Fastener
42 in-lbs (5 Nm)
BODY / FRAME
