INSTALLATION

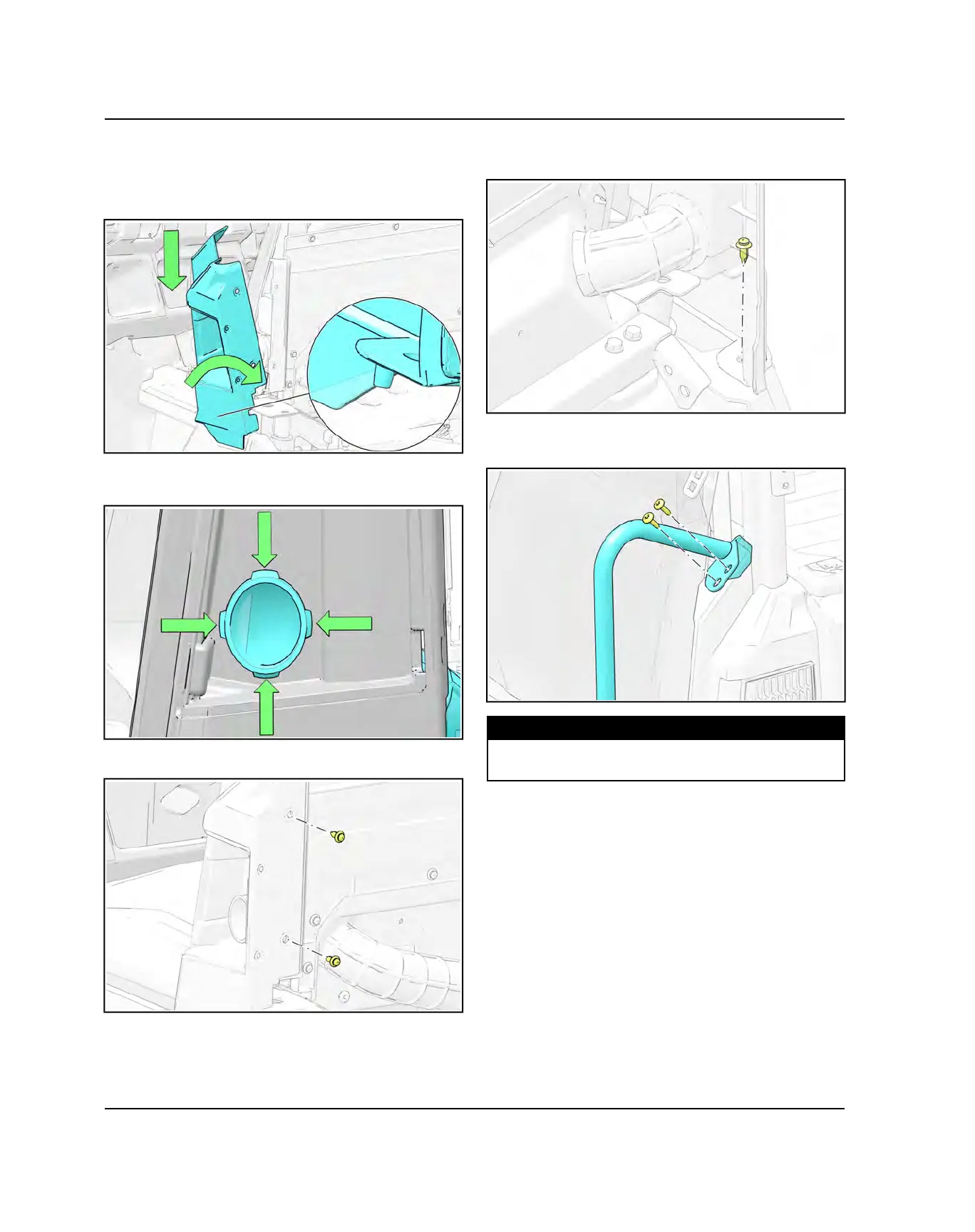

1. Install the side bezel straight down and engage the
retaining tab in the rocker panel. Pivot into the vehicle
and align the push rivet holes.
2. Carefully pull the intake duct retainers in to secure the
intake duct..
3. Install the two rear side bezel push rivets.
4. Install the inside push rivet to secure the side bezel to
the rocker panel.
5. Install the side bezel and two upper bolster fasteners.
Torque to specification.
TORQUE
Bolster Fasteners:
6 ft-lbs (8 Nm)
