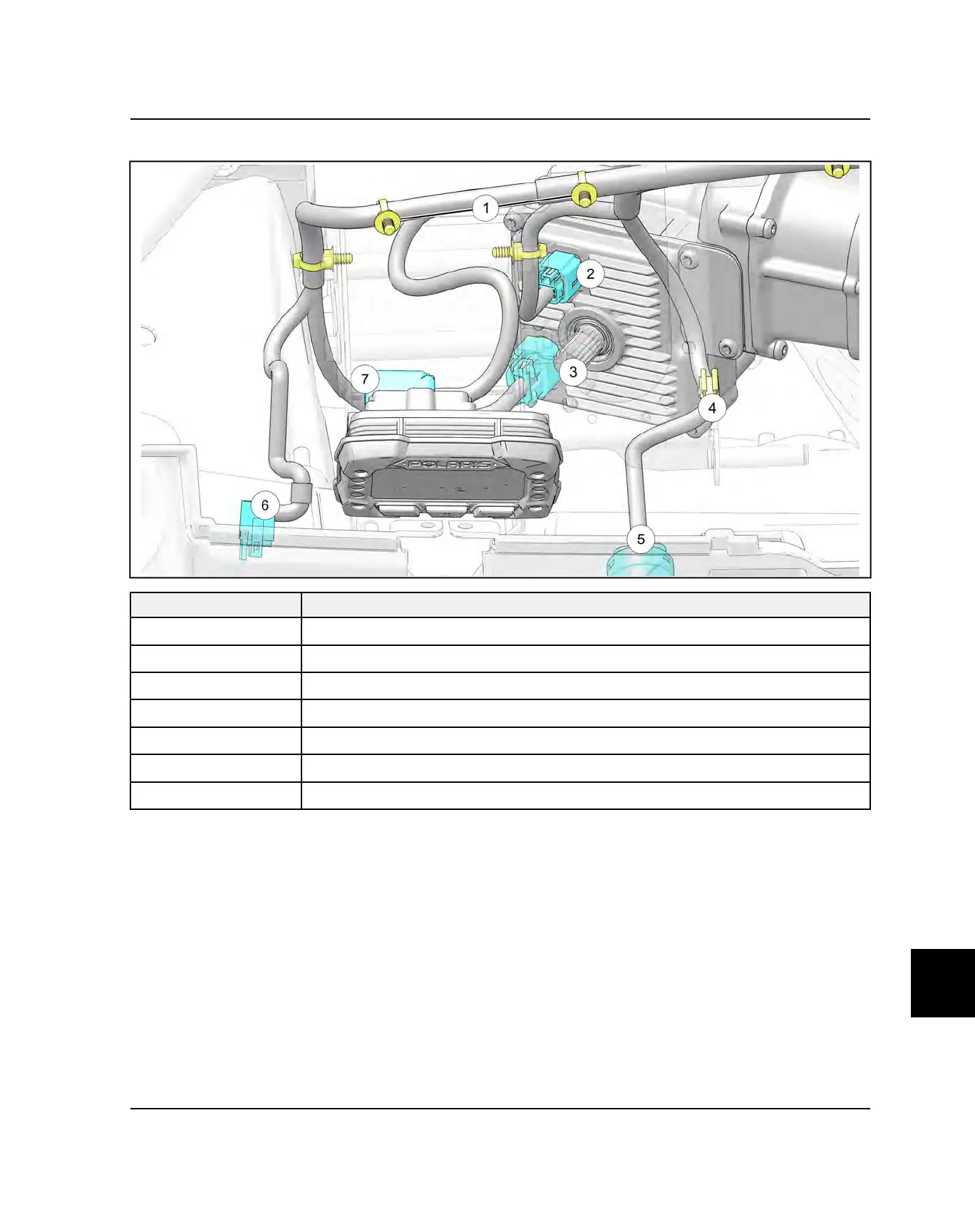

LEFT DASH ROUTING
REF DESCRIPTION
q
Tree Clip (Into Dash Brackets)
w
EPS Signal Connector
e
EPS Power Connector
r
Retention Clip (Into Dash Bracket)
t
Ignition Switch Connector
y
Headlight Switch Connector
u
Instrument Cluster Connector
CHASSIS / BODY ELECTRICAL
