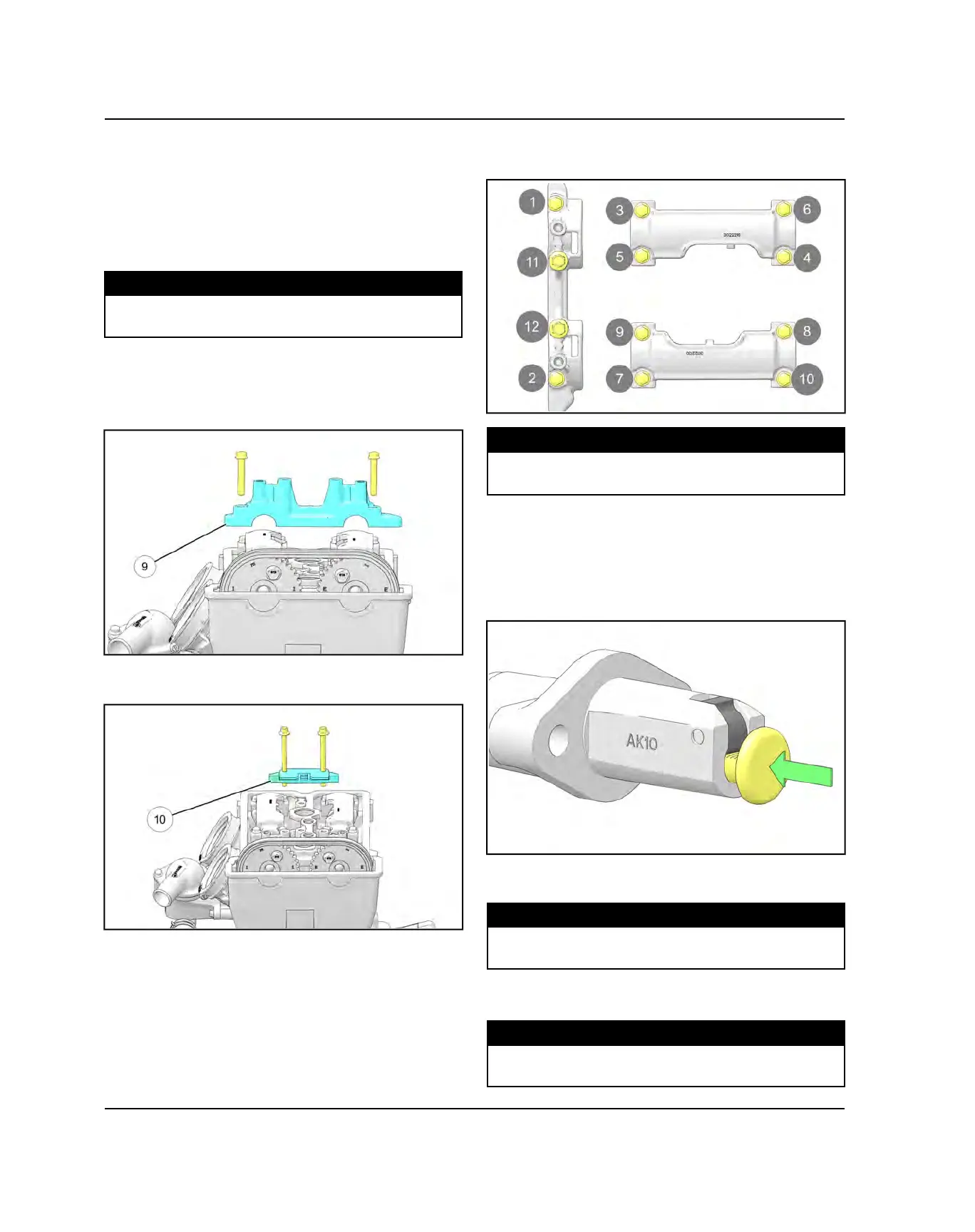

14.If timing marks are not aligned, remove sprockets and
correct alignment.
15.Remove the Cylinder Holding & Camshaft Timing
Plate (PU-50563) from the end of the camshafts.
16.Rotate the engine using the flywheel and install the
remaining bolt in each camshaft sprocket. Torque the
sprocket bolts to specification.
TORQUE
Camshaft Sprocket Bolts:
14 ft-lbs (19 Nm)
17.Rotate the engine using the flywheel and torque the
remaining sprocket bolts to specification.
18.Install the front camshaft carrier
o
and two outer
retaining bolts.
19.Install the fixed cam chain guide
a
and two retaining
bolts.
20.Torque the camshaft carriers bolts in sequence to
specification.
TORQUE
Camshaft Carrier Bolts:
7 ft-lb (10 Nm)
21.Apply Polaris PS-4 engine oil to the cam chain
tensioner bore prior to assembly. Use a new
tensioner sealing washer
d
.
22.
• Retract the plunger all the way in and install into the
cylinder.
• Install the two mounting bolts. Torque fasteners to
specification.
TORQUE
Tensioner Mounting Bolts:
7 ft-lbs (10 Nm)
• Install the plunger bolt. Torque fastener to
specification.
TORQUE
Plunger Bolt:
15 ft-lbs (20 Nm)
