12.Use new camshaft sprocket retaining bolts upon
assembly. Install the top bolt
i
in each camshaft
sprocket
u
. Do not torque the bolts at this time.
NOTE
Use new sprocket retaining bolts upon assembly.

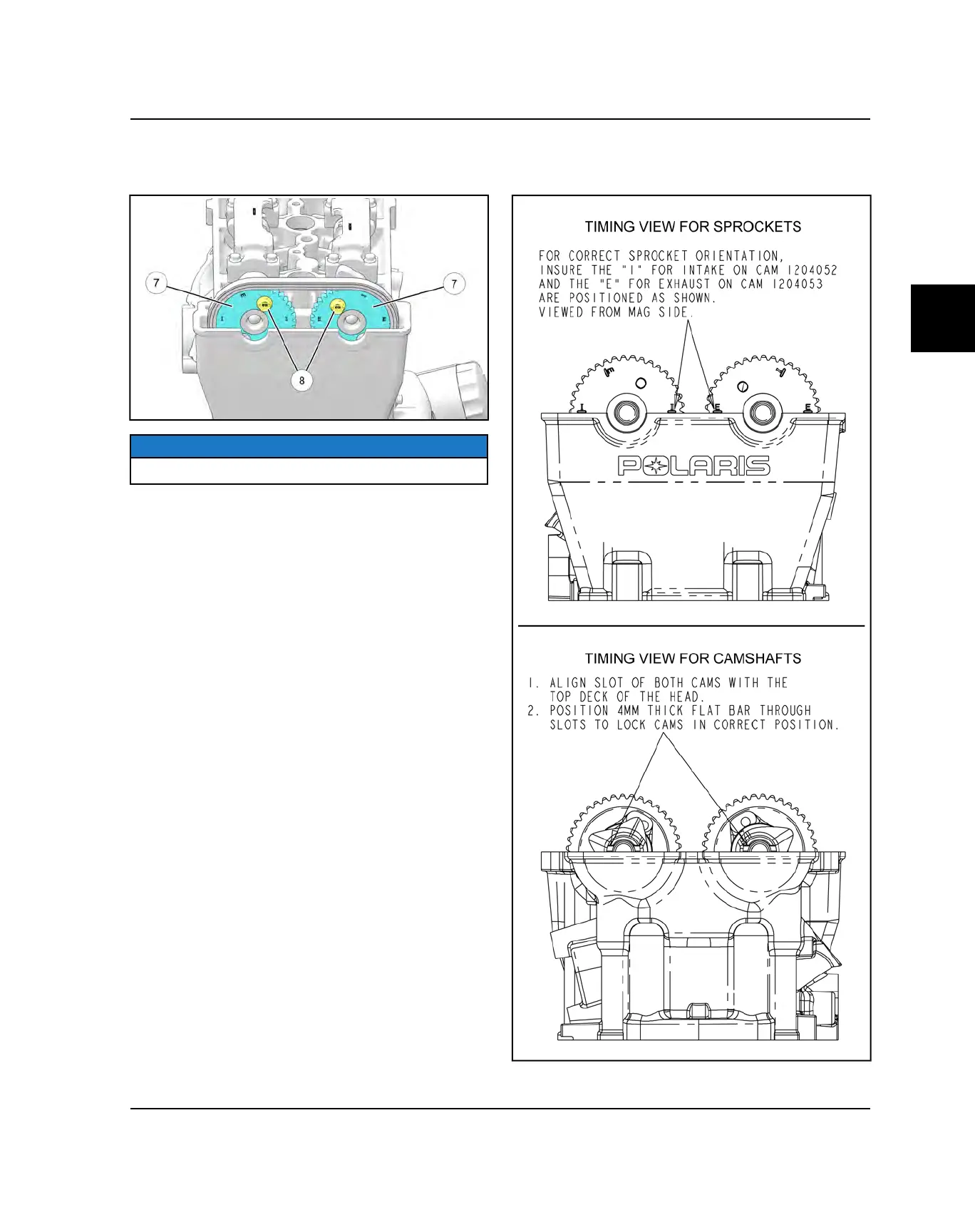

13.Verify cam timing is correct. Flywheel TDC mark
should still be aligned (see Step 1) and cam sprocket
markings should line up as shown.
