9928487 R01 - 2018 RANGER XP 1000 Service Manual
© Copyright Polaris Industries Inc.
3.123

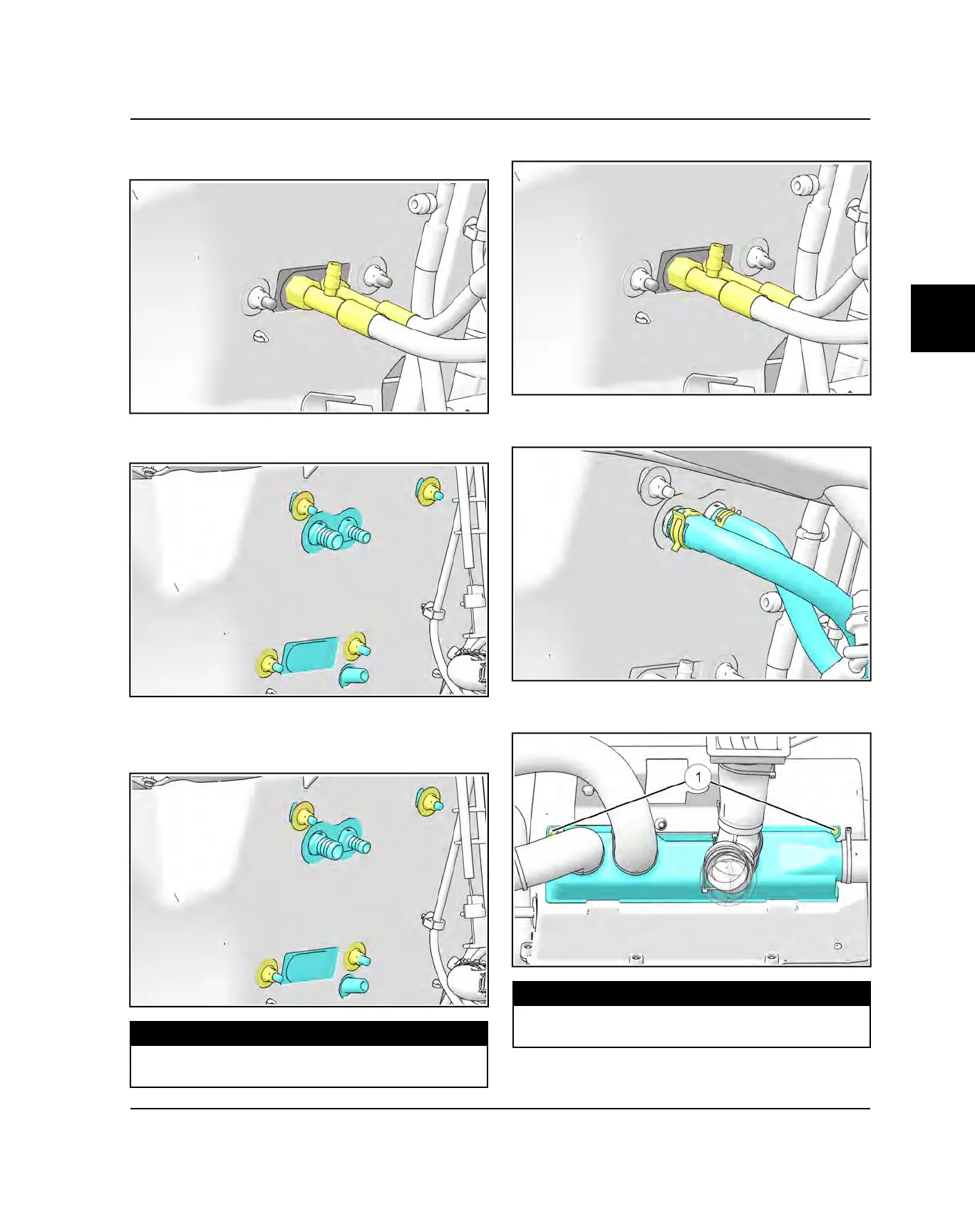

7. Remove the A/C hoses from the expansion valve
through the front wheel opening.
8. Remove the fasteners holding the heater / evaporator
unit to the vehicle and remove the HVAC unit.
HEATER / EVAPORATOR UNIT INSTALLATION
1. Reinstall the HVAC unit and torque the mounting
fasteners to specification.
TORQUE
Heater / Evaporator Unit Mounting Fasteners:
10 lb-ft (14 Nm)
2. Reinstall both AC hoses
3. Reinstall both heater hoses and install heater hose
clamps.
4. Install the air distributor manifold fasteners
q
and
torque to specification.
TORQUE
Air Distributor Manifold Fasteners:
18 in-lbs (2 Nm)
5. Reinstall the blower unit connector.
ENGINE / COOLING / EXHAUST
