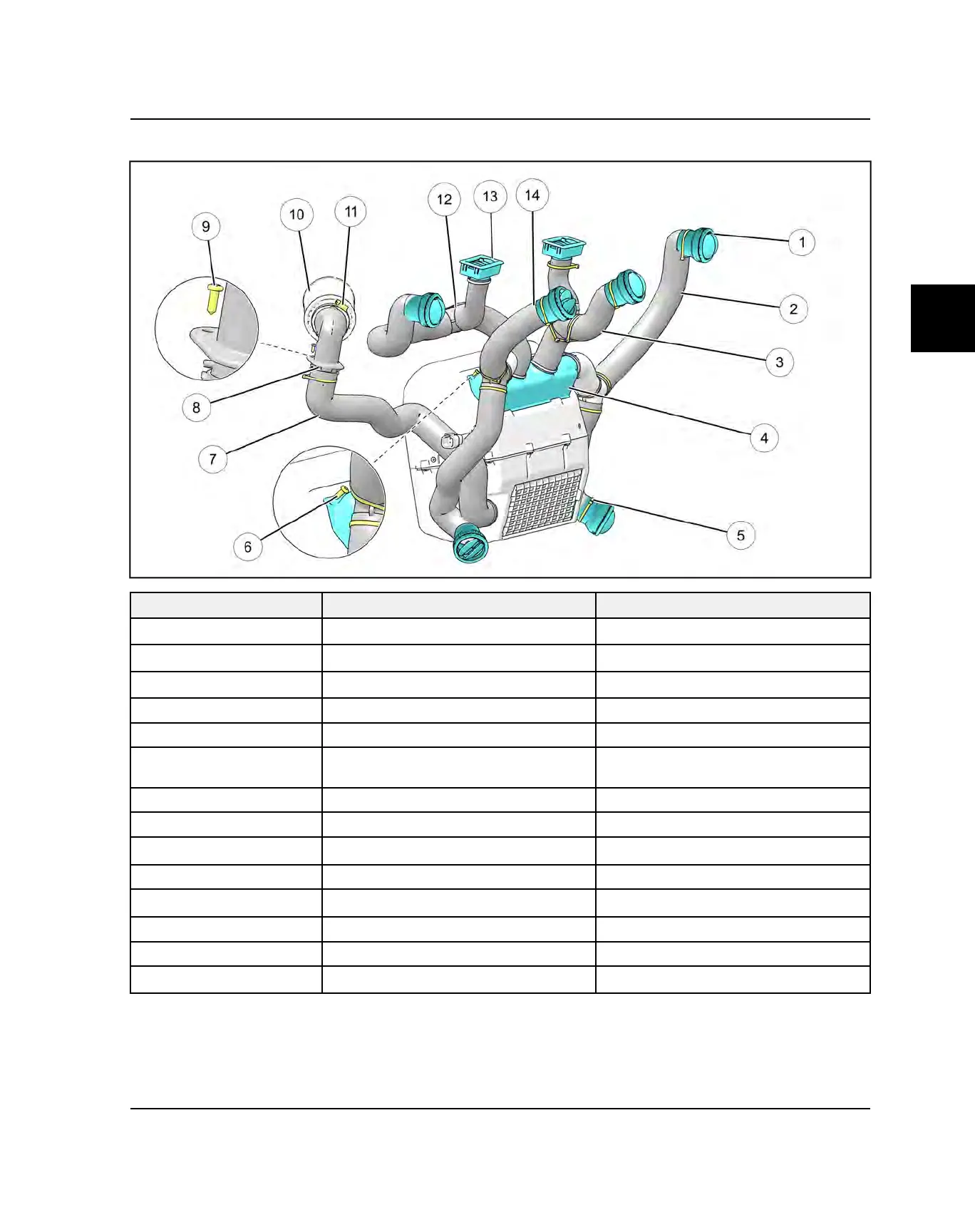

HVAC DUCTING
REF
DESCRIPTION TORQUE
1
VENT, ROUND N/A
2
DUCTING ASSEMBLY, RH N/A
3
DUCTING ASSEMBLY, CENT RH N/A
4
AIR DISTRIBUTOR MANIFOLD N/A
5
STRAP PANDUIT N/A
6 AIR DISTRIBUTOR MANIFOLD
FASTENER
18 in-lbs (2 Nm)
7
FRESH AIR HOSE N/A
8
FILTER SUPPORT N/A
9 FILTER SUPPORT FASTENER 18 in-lbs (2 Nm)
10 AIR FILTER
N/A
11
AIR FILTER BAND CLAMP 24 in-lbs (3 Nm)
12 CENTER DASH DUCTING ASSEMBLY N/A
13 DEFROST VENT N/A
14
DUCTING ASSEMBLY, LH N/A
