Polaris RANGER XP 1000 2018 - Fuel Tank Service; Fuel Tank Assembly View; Fuel Flow

4.16
9928487 R01 - 2018 RANGER XP 1000 Service Manual
© Copyright Polaris Industries Inc.
FUEL TANK SERVICE

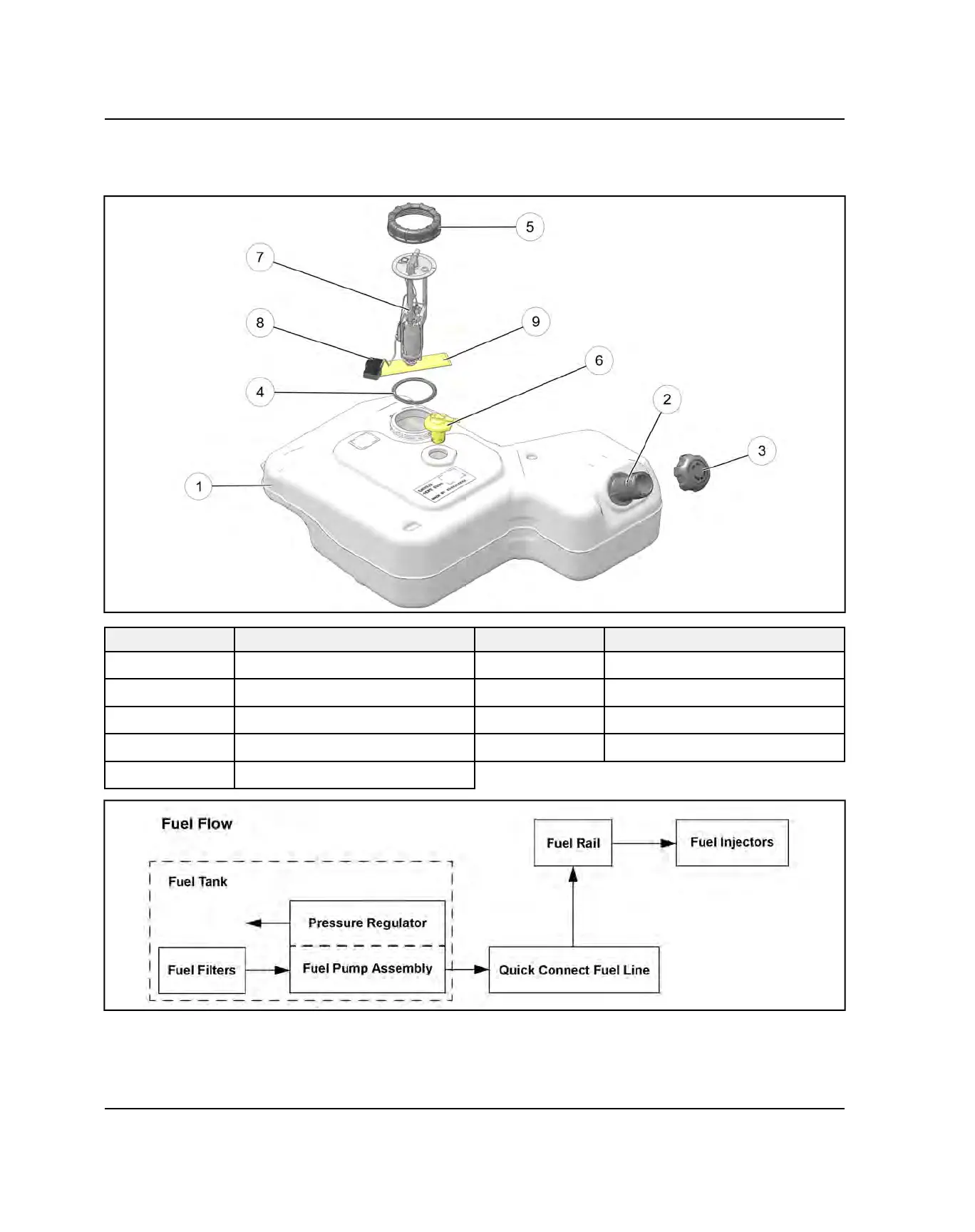

FUEL TANK ASSEMBLY VIEW
REF
DESCRIPTION
REF
DESCRIPTION
q
Fuel Tank Asm
y
Tank Vent / Rollover Valve
w
Fuel Inlet
u
Fuel Pump / Regulator
e
Fuel Cap
i
Fuel Level Float Arm
r
Gasket
o
Preliminary Fuel Filter
t
Fuel Sender Nut
FUEL SYSTEM
