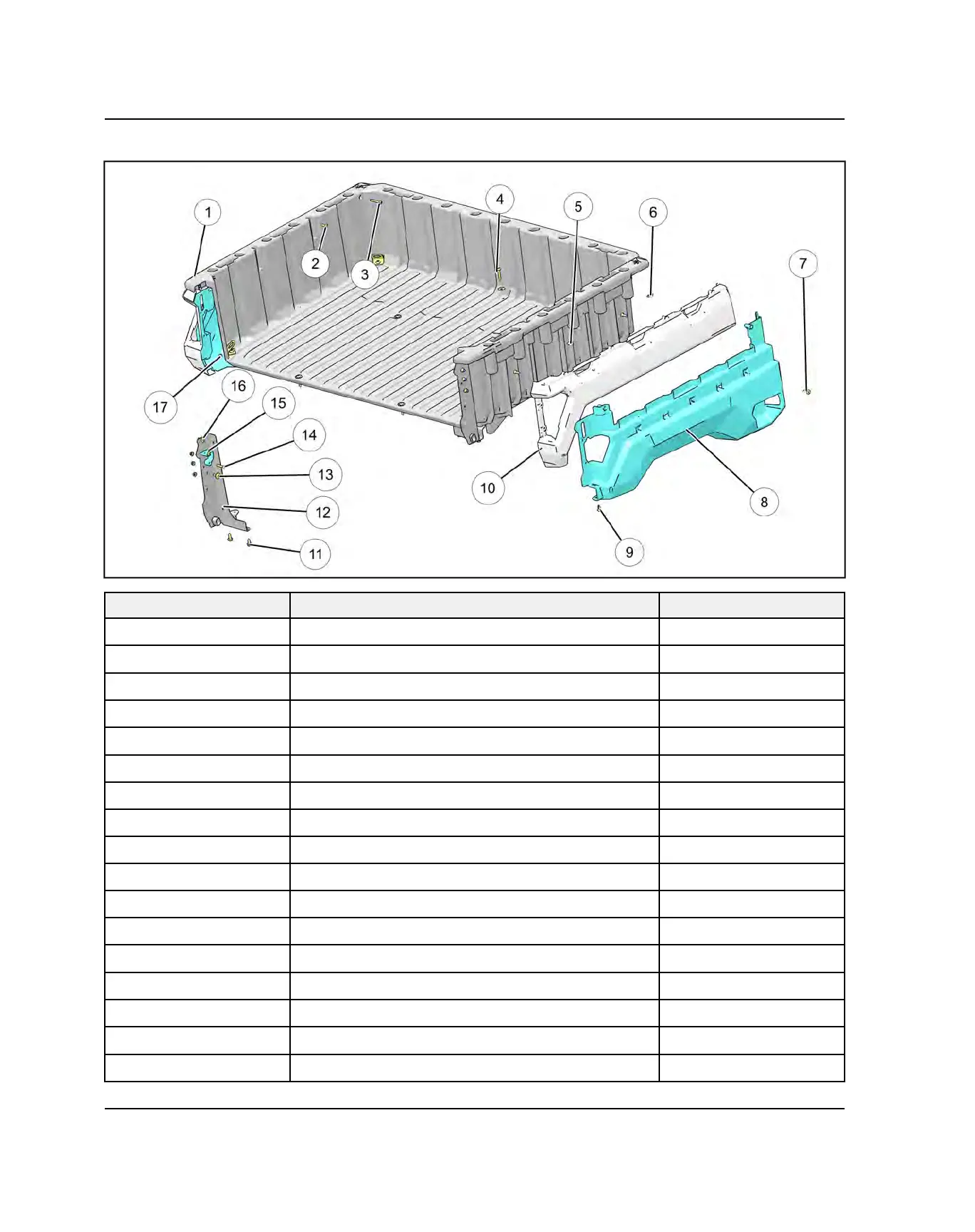

CARGO BOX ASSEMBLY
REF
DESCRIPTION TORQUE
q
CARGO BOX ASSEMBLY
NA
w
INNER CARGO BOX FASTENER 14X0.75 8 in lbs (1 Nm)
e
INNER CARGO BOX FASTENER 1/4X2 8 in lbs (1 Nm)
r
t
OUTER CARGO BOX PANEL FASTENER 8 in lbs (1 Nm)
y
PUSH RIVET
NA
u
CARGO BOX FASTENER 42 in-lbs (5 Nm)
i
CARGO BOX OUTER PANEL
NA
o
PUSH RIVET
NA
a
CARGO BOX OUTER TRIM PANEL
NA
s
LOWER TAILGATE SUPPORT FASTENER M8X1.25 10 ft lbs (14 Nm)
d
TAILGATE SUPPORT BRACKET
NA
f
TAILGATE SUPPORT FASTENER M6x1.0 42 in-lbs (5 Nm)
g
TAILGATE LATCH FASTENER 7 ft lbs (9 Nm)
h
TAILGATE LATCH
NA
j
TAILGATE SUPPORT FASTENER M6x1.0 42 in-lbs (5 Nm)
k
TAILGATE BUMPER
