9928487 R01 - 2018 RANGER XP 1000 Service Manual
© Copyright Polaris Industries Inc.
10.29
FRONT FASCIA SERVICE

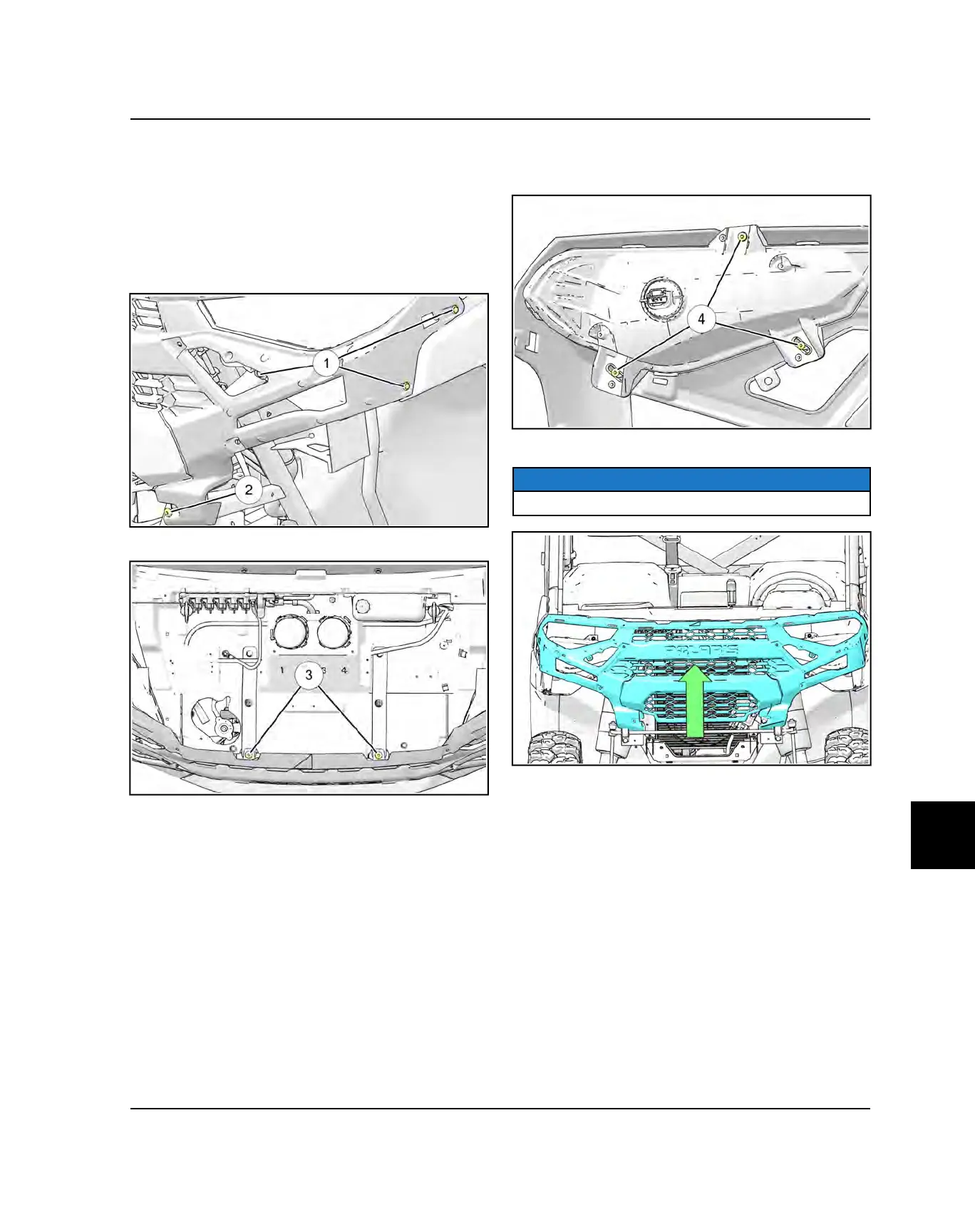

FRONT FASCIA REMOVAL
Necessary Preliminary Tasks
• Remove Upper Fender. SeeFront Fender Service,
page 10.26
1. Remove the three push rivets
q
and T-40 torx
fastener
w
. Repeat procedure on passenger side.
2. Remove the two T-40 torx fasteners
e
.
3. Disconnect the headlight connector. Remove the
three T-25 torx fasteners
r
. Remove the headlight
assembly.
4. Pull the front fascia straight up to remove as shown.
NOTE
Front Bumper removed for clarity.
BODY / FRAME
