ALTERNATOR REPLACEMENT
REMOVAL

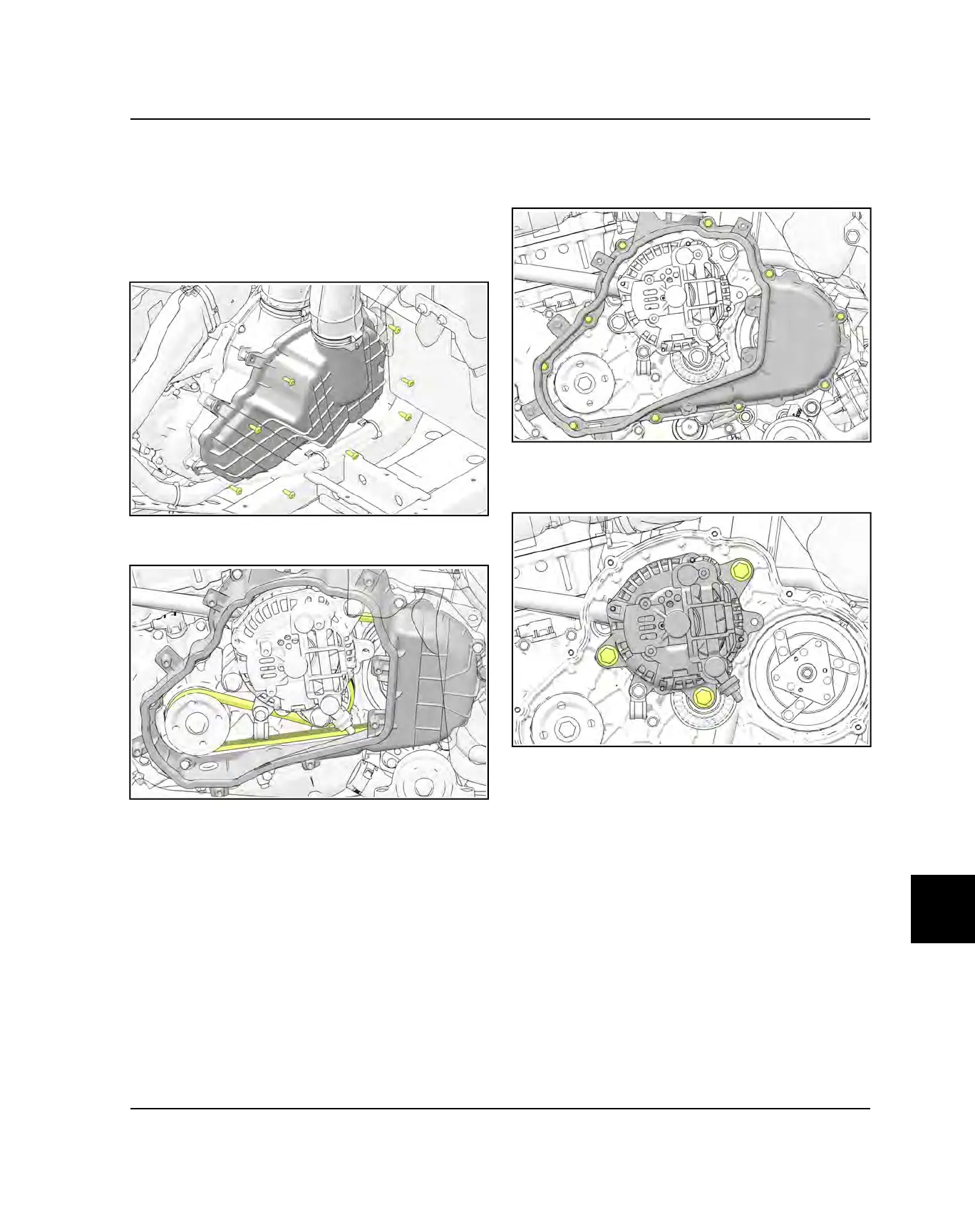

1. Position the vehicle on a level surface, place the
transmission in PARK and stop the engine.
2. Tilt the rear cargo box to the upright position.
3. Remove the fasteners holding the alternator cover to
the vehicle.
4. Cut the compressor drive belt to remove it from the
vehicle.
5. To aid with belt installation, remove the fasteners
holding the inner alternator cover to the engine.
Disconnect the air outlet hose and remove the cover
from the vehicle.
6. Disconnect the alternator.
7. Loosen the three alternator fasteners and remove the
alternator.
INSTALLATION
1. Install new alternator. Do not torque fasteners.
2. Connect alternator electrical connection.
ELECTRICAL
