9928487 R01 - 2018 RANGER XP 1000 Service Manual
© Copyright Polaris Industries Inc.

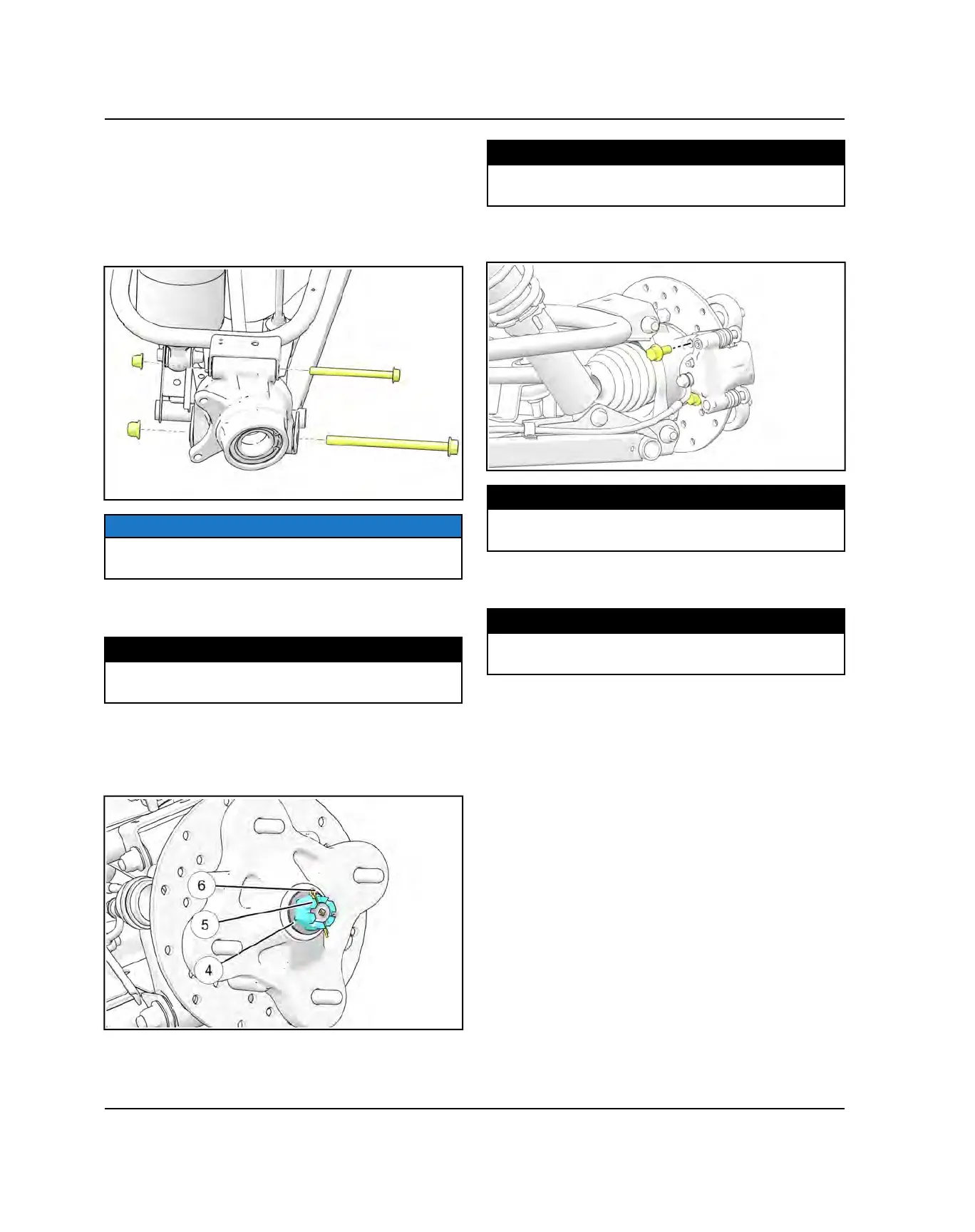

REAR BEARING CARRIER INSTALLATION
1. Place the bearing carrier over the drive shaft.
2. Align the bottom of the bearing carrier with the lower
A-arm. Install the lower bearing carrier fastener.
3. Align the top of the bearing carrier with the upper A-
arm. Install the upper bearing carrier fastener.
NOTE
The lower shock bolt may need to be removed to allow
the upper A-arm to move freely.
4. Torque the upper and lower bearing carrier fasteners
to specification.
TORQUE
Bearing Carrier Fasteners:
40 lb-ft (54 Nm)
5. Install the wheel hub assembly onto the drive shaft.
6. Install the washers
r
with domed side out and the
wheel hub castle nut
t
. Torque the wheel hub castle
nut to specification and install a NEW cotter pin
y
.
TORQUE
Rear Wheel Hub Castle Nuts:
110 lb-ft (149 Nm)
7. Install the rear brake caliper and torque the mounting
bolts to specification.
TORQUE
Rear Caliper Mounting Bolts:
46 lb-ft (62 Nm)
8. Install the wheel, washers and wheel nuts. Torque
wheel nuts to specification.
TORQUE
Wheel Nuts (Steel): 60 lb-ft (81 Nm)
Wheel Nuts (Alum): 120 lb-ft (163 Nm)
FINAL DRIVE
