9928487 R01 - 2018 RANGER XP 1000 Service Manual
© Copyright Polaris Industries Inc.

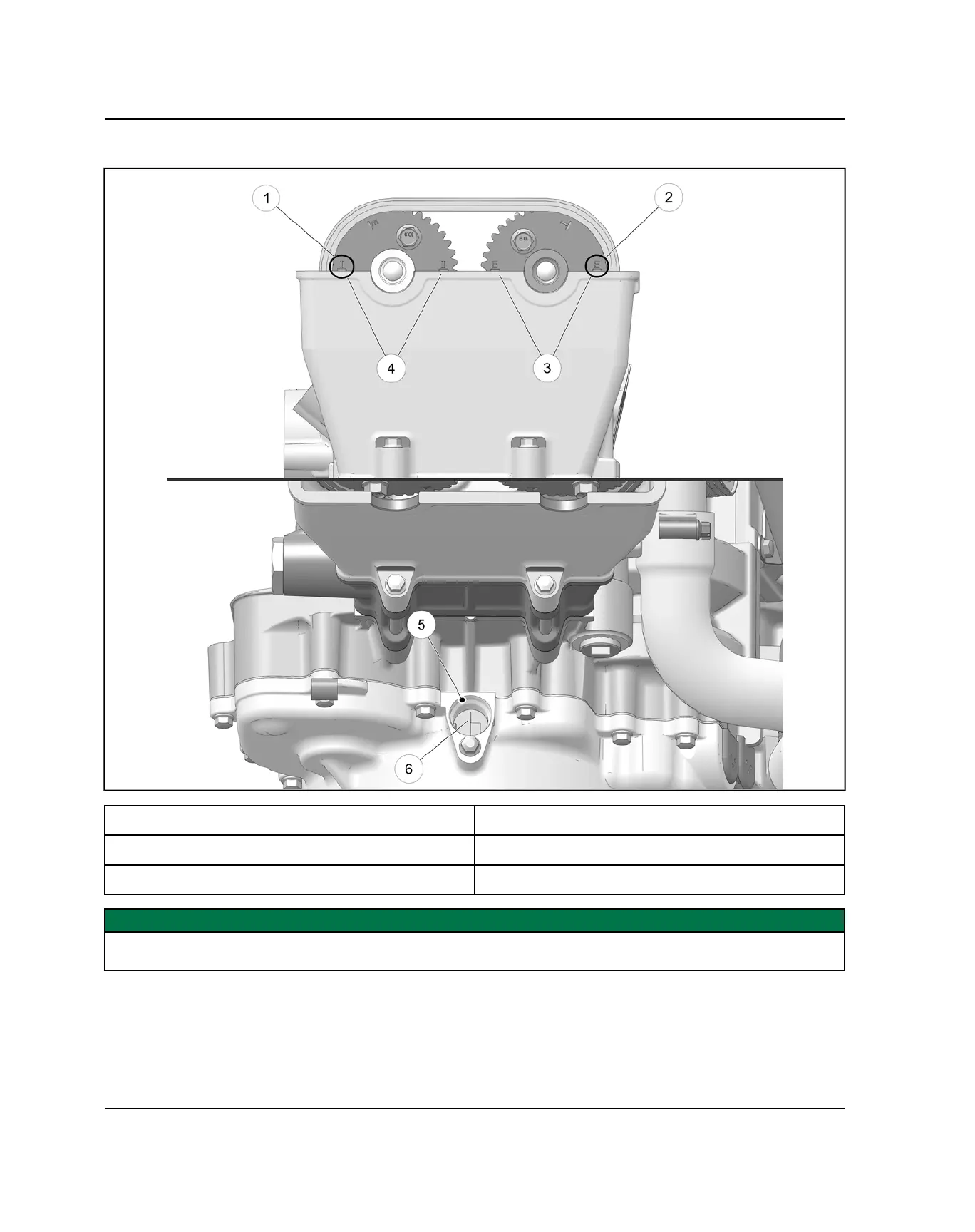

CAMSHAFT TIMING - QUICK REFERENCE
q
Intake Cam
r
Align marks with surface
w
Exhaust Cam
t
CPS Mounting Hole
e
Align marks with surface
y
Align Flywheel Mark in Mounting Hole
IMPORTANT
DO NOT use the “V” mark located on the flywheel opposite of the “I” mark. Only the “I” mark should be used as a TDC
reference
